5.1.3 Optional SBM
3
The conga-IA5 offers an optional SBM
IA5 SBC with an SBM battery kit. The battery kit requires two connections — the SBM battery power on connector X46 and the SBM battery
signals on connector X45.
Note
To use the SBM 3 feature, you must update the conga-IA5 firmware.
Table 14 SBM Power (X46 Connector) Pinout Description
3
Pin Function
1 +12 - 24V
2 +12 - 24V
3 GND
4 GND
5 NC
Connector Type
X46: 3mm, 1x5 pin, Micro-Fit
Caution
The absolute maximum rating of the input voltage is 26.5 volts. Do not exceed this rating or expose the conga-IA5 to the absolute maximum
voltage for a prolonged time. Doing so may damage the system or affect system reliability.
5.1.3.1 Optional SBM Signal Connector
3
As mentioned above, if you need the optional SBM battery power connector (X46), then you need in addition the optional SBM battery signals
connector (X45) for adequate communication between the conga-IA5 and the battery kit.
Copyright © 2017 congatec AG
Power Connector (Internal Connector)
power connector (only BOM option). When this connector (X46) is populated, you can power the conga-
3

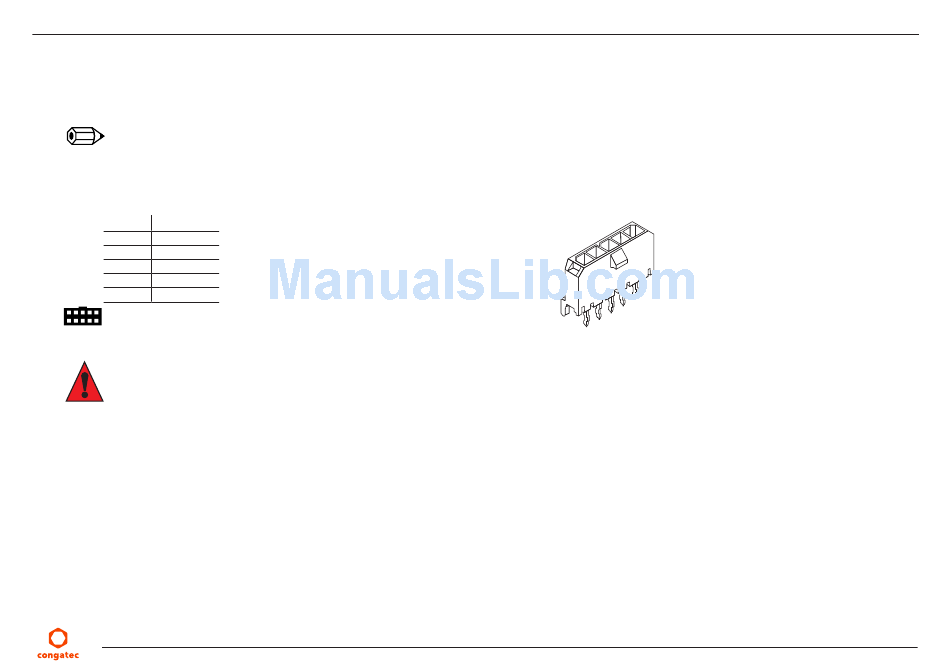

SBM3 Power - Connector X46
