5.6

Universal Serial Bus (USB)

The conga-IA5 provides 6 USB ports — 4 USB ports on the rear side and 2 USB ports internally. All USB ports are routed directly from the SoC.
USB3_P2 to M.2 Connector
USB2_P7 to M.2 Connector
USB3 to mPCIe Connector
Copyright © 2017 congatec AG
Apollo Lake SoC
9 8 7
1 2 3 4
1 2
9 8 7
1 2 3 4
1 2
2x USB 2.0 Rear Ports
2x USB 3.0/2.0 Rear Ports
(Connector X16) (Connector X17)

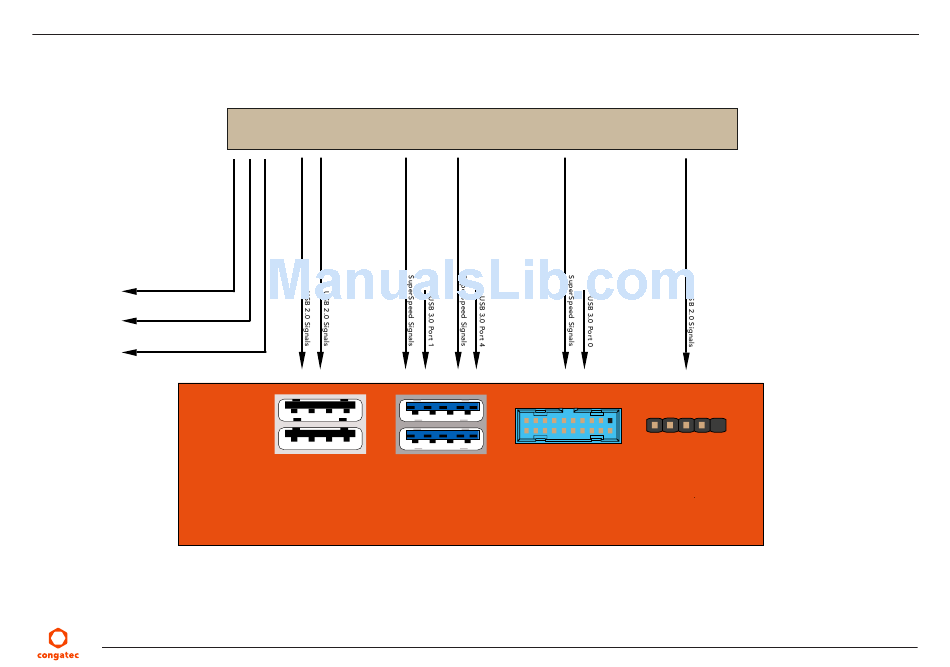

conga-IA50 USB Connectors
6 5
3 4
6 5
3 4
1x USB 3.0/2.0 Internal Port
(Connector X14)
IA50m01
1x USB 2.0 Internal Port
(Connector X15)
