Table 17

Single-Color Power LED

LED State

Description

Off

Sleeping or power-off (not running)

Steady Green

Running

Note

For the front panel pinout description, see section 6.1 "Front Panel Connector".

5.2

CMOS Battery/RTC

The conga-IA5 provides a board-mounted battery holder (M37) for the CMOS battery — CR2032 for commercial variants; BR2330A for industrial

variants. The CMOS battery supplies the necessary power required to maintain the CMOS settings and configuration data in the UEFI flash chip.

Warning

Danger of explosion if battery is incorrectly replaced. Replace only with same or equivalent type recommended by the manufacturer. Dispose

of used batteries according to the manufacturer's instructions.

5.3

The conga-IA5 provides audio connectors both internally and on the rear side. The internal audio connectors are stereo speaker, digital

microphone/SPDIF and front Panel HD audio. The rear audio connectors are Line-OUT and Mic-IN.

ACPI State

S3, S5

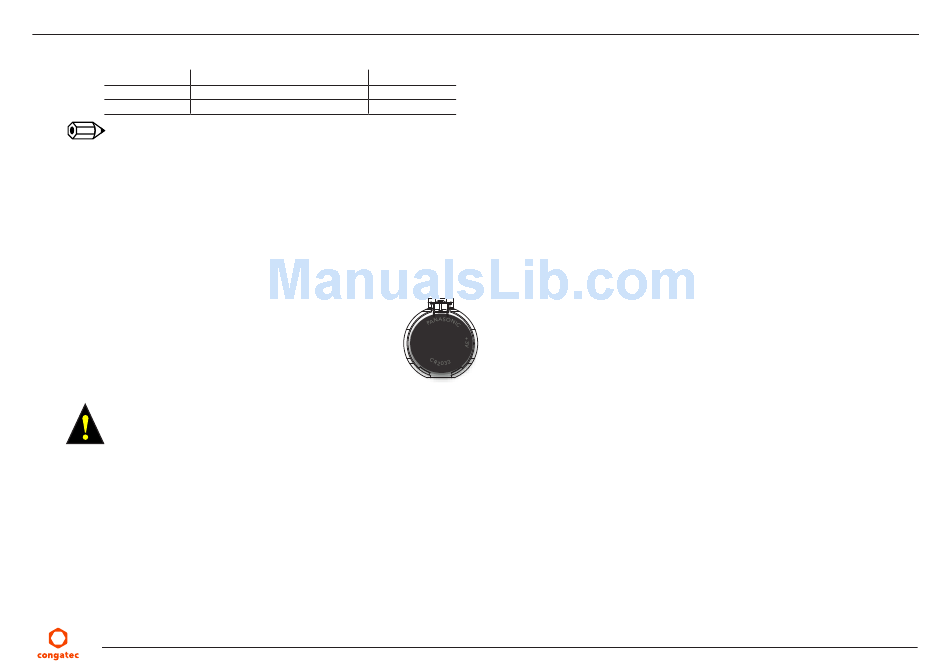

Battery Holder - M37

IA50m01

27/59
