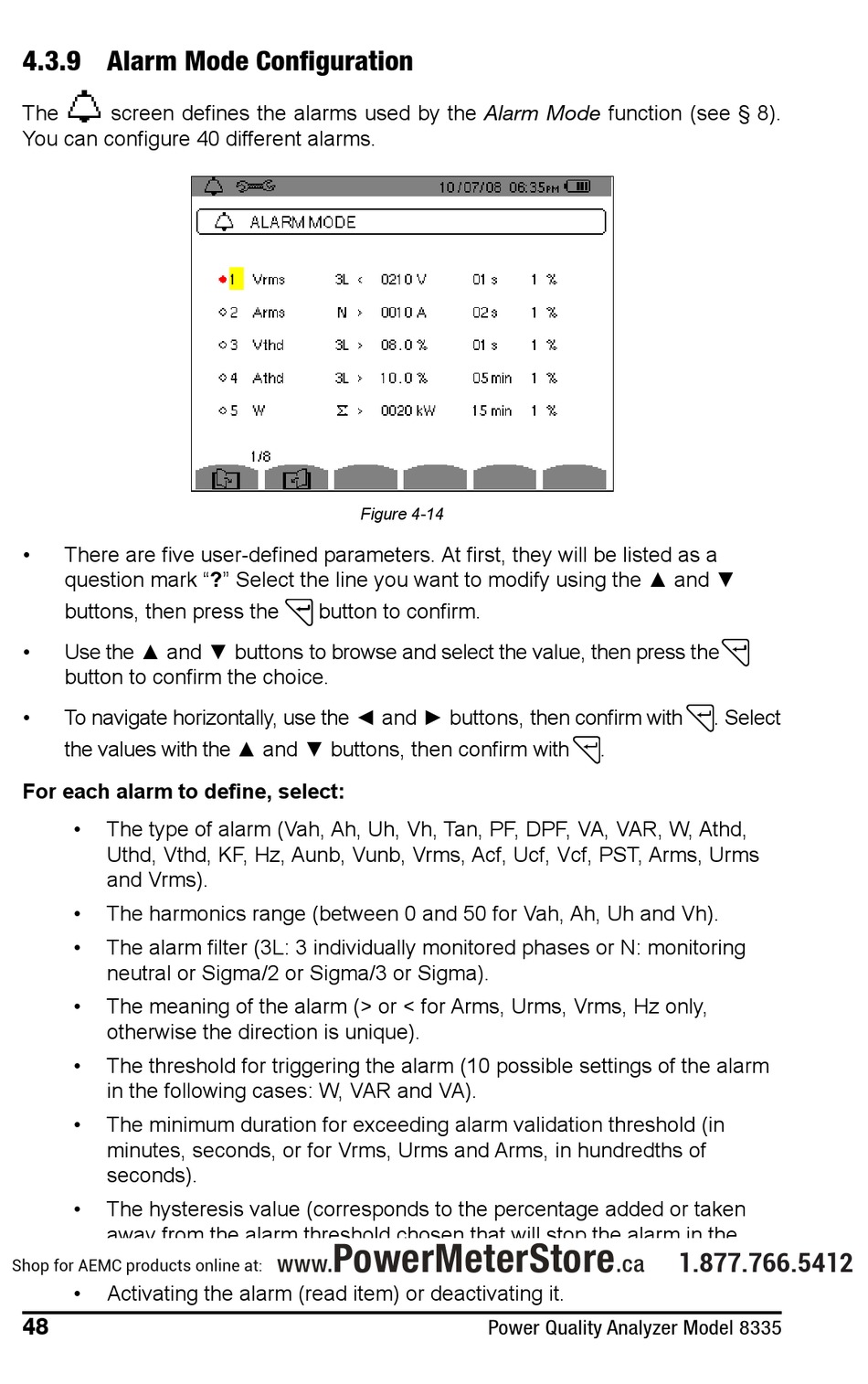

4.3.9 Alarm Mode Configuration
The
screen defines the alarms used by the Alarm Mode function (see § 8).
You can configure 40 different alarms.
•
There are five user-defined parameters. At first, they will be listed as a
question mark "?" Select the line you want to modify using the ▲ and ▼
buttons, then press the
•
Use the ▲ and ▼ buttons to browse and select the value, then press the
button to confirm the choice.
•
To navigate horizontally, use the ◄ and ► buttons, then confirm with
the values with the ▲ and ▼ buttons, then confirm with
For each alarm to define, select:
•
The type of alarm (Vah, Ah, Uh, Vh, Tan, PF, DPF, VA, VAR, W, Athd,
Uthd, Vthd, KF, Hz, Aunb, Vunb, Vrms, Acf, Ucf, Vcf, PST, Arms, Urms
and Vrms).
•
The harmonics range (between 0 and 50 for Vah, Ah, Uh and Vh).
•
The alarm filter (3L: 3 individually monitored phases or N: monitoring
neutral or Sigma/2 or Sigma/3 or Sigma).
•
The meaning of the alarm (> or < for Arms, Urms, Vrms, Hz only,
otherwise the direction is unique).
•
The threshold for triggering the alarm (10 possible settings of the alarm
in the following cases: W, VAR and VA).
•
The minimum duration for exceeding alarm validation threshold (in
minutes, seconds, or for Vrms, Urms and Arms, in hundredths of
seconds).
•
The hysteresis value (corresponds to the percentage added or taken
away from the alarm threshold chosen that will stop the alarm in the
event of overrun - Value 1, 2, 5 or 10%).
