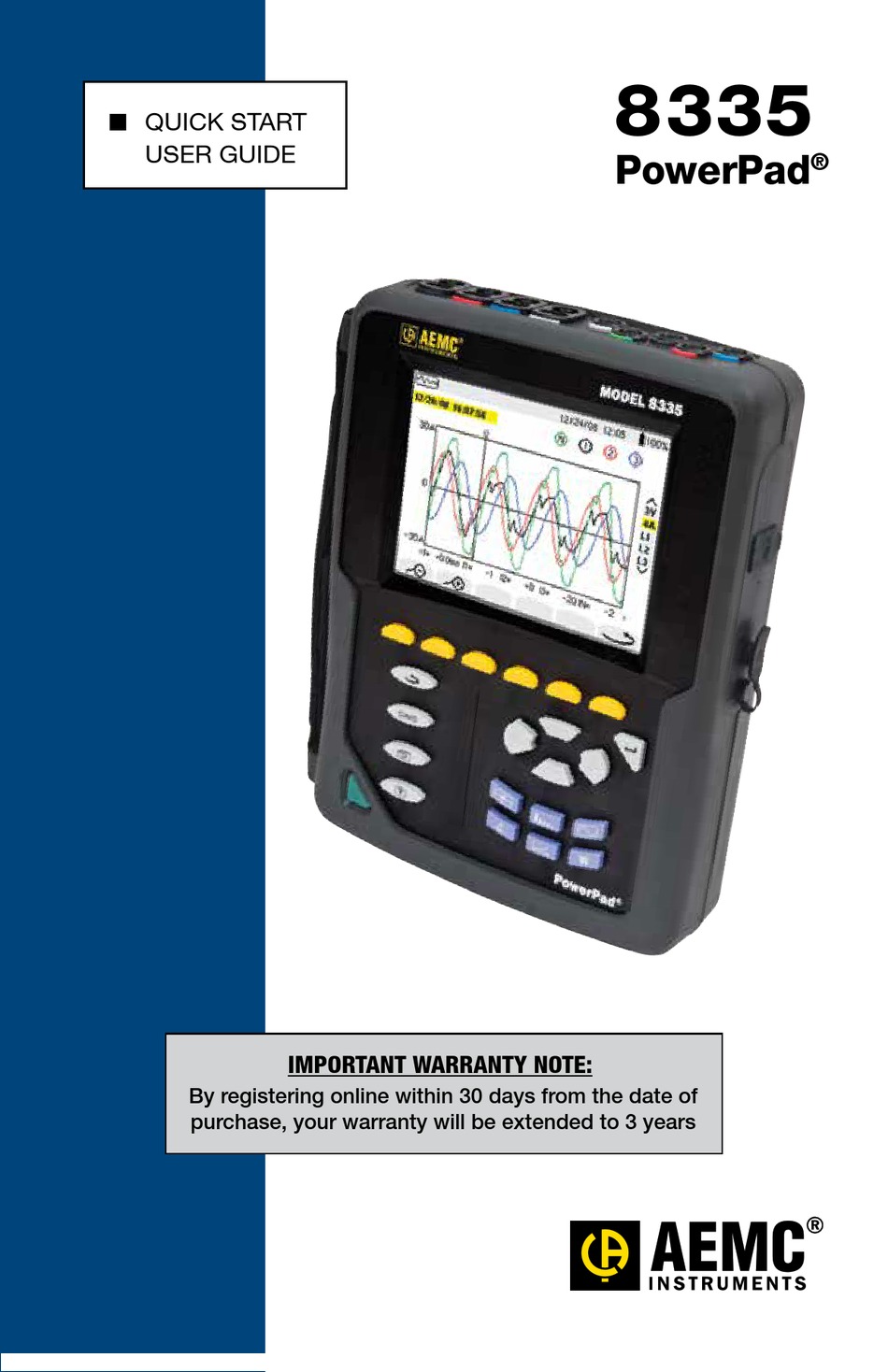

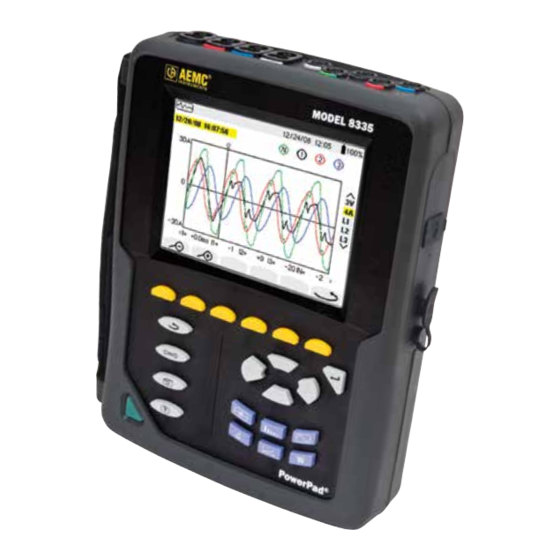

- Page 1 8335 QUICK START USER GUIDE PowerPad ® IMPORTANT WARRANTY NOTE: By registering online within 30 days from the date of purchase, your warranty will be extended to 3 years...
-
Page 2: Statement Of Compliance
The recommended calibration interval for this instrument is 12 months and begins on the date of receipt by the customer. For recalibration, please use our calibration services. Refer to our repair and calibration section at www.aemc.com. Serial #: ________________________________ Catalog #: ______________________________ Model #:... -
Page 3: Product Packaging
PRODUCT PACKAGING Shipping Contents: (1) Large Classic Tool Bag Cat. #2133.73 (1) PowerPad Model 8335 ® Cat. #2136.20 (1) 5 ft USB Cable Cat. #2140.46 (1) Soft Carrying Pouch Cat. #2140.15 (5) Black Test Leads and Alligator Clips Cat. #2140.43 Also Included: 4 GB USB Stick (DataView/User Manual) (1) Power Adapter 110/240V w/ Power Cord... -
Page 4: Charging The Battery
Charging the Battery Fully charge the battery before the first use. The batteries automatically begin recharging when the instrument is connected to AC power. Only use the supplied AC power adapter to recharge the batteries. NOTE: A full recharge of a completely discharged battery takes 5 hours approx. To recharge the battery: 120V ±... -
Page 5: Control Features
Control Features PowerPad ® Over molded protective housing USB port LCD Display Input for external power supply and battery charging Six function buttons (yellow) Confirm/Enter button Four function buttons (see chart, left) ON/OFF button Navigation buttons Four current inputs and five voltage Six mode buttons (see chart, left) inputs Connection Terminals... -
Page 6: Instrument Configuration
Instrument Configuration NOTE: The instrument configurations can also be modified through the DataView software. ® NOTE: The instrument must be configured the first time it is used. The configuration is saved in memory when the instrument is turned OFF. Press the button to configure the unit. -
Page 7: Getting Started
Getting Started NOTE: Make sure the PowerPad is fully charged before use. ® Connecting: • Start the instrument by pressing the button. • Configure the instrument to obtain the required results and type of network. • Connect the current leads and sensors to the PowerPad ®... -
Page 8: Installing Dataview
AEMC offers free software and firmware updates on our website. ® • Visit us at: www.aemc.com • Click on the Tech Info tab and choose the desired software or firmware download. DataView can also be updated by selecting “Update” from the Help menu within the soft- ®... -
Page 9: Repair And Calibration
If the instrument is returned for calibration, we need to know if you want a standard calibration, or a calibration traceable to N.I.S.T. (Includes calibration certificate plus recorded calibration data). Ship To: Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 15 Faraday Drive Dover, NH 03820 USA Phone: (800) 945-2362 (Ext. -
Page 10: Limited Warranty
Instruments, not by the distributor from whom it was purchased. This ® warranty is void if the unit has been tampered with, abused or if the defect is related to service not performed by AEMC Instruments. ® Full warranty coverage and registration is available on our website: www.aemc.com/warranty.html. - Page 11 NOTES:...
- Page 12 10/13 99-MAN 100392 v2 Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 15 Faraday Drive • Dover, NH 03820 USA • Phone: (603) 749-6434 • Fax: (603) 742-2346 www.aemc.com...
