Identifying Ports
Pin
1
2
3
4
Related Information
"Rear Panel Components (Installation)" on page 13
■
"Connect the SER MGT Cable" on page 58
■
"Connect a Terminal or Emulator to the SER MGT Port" on page 67
■

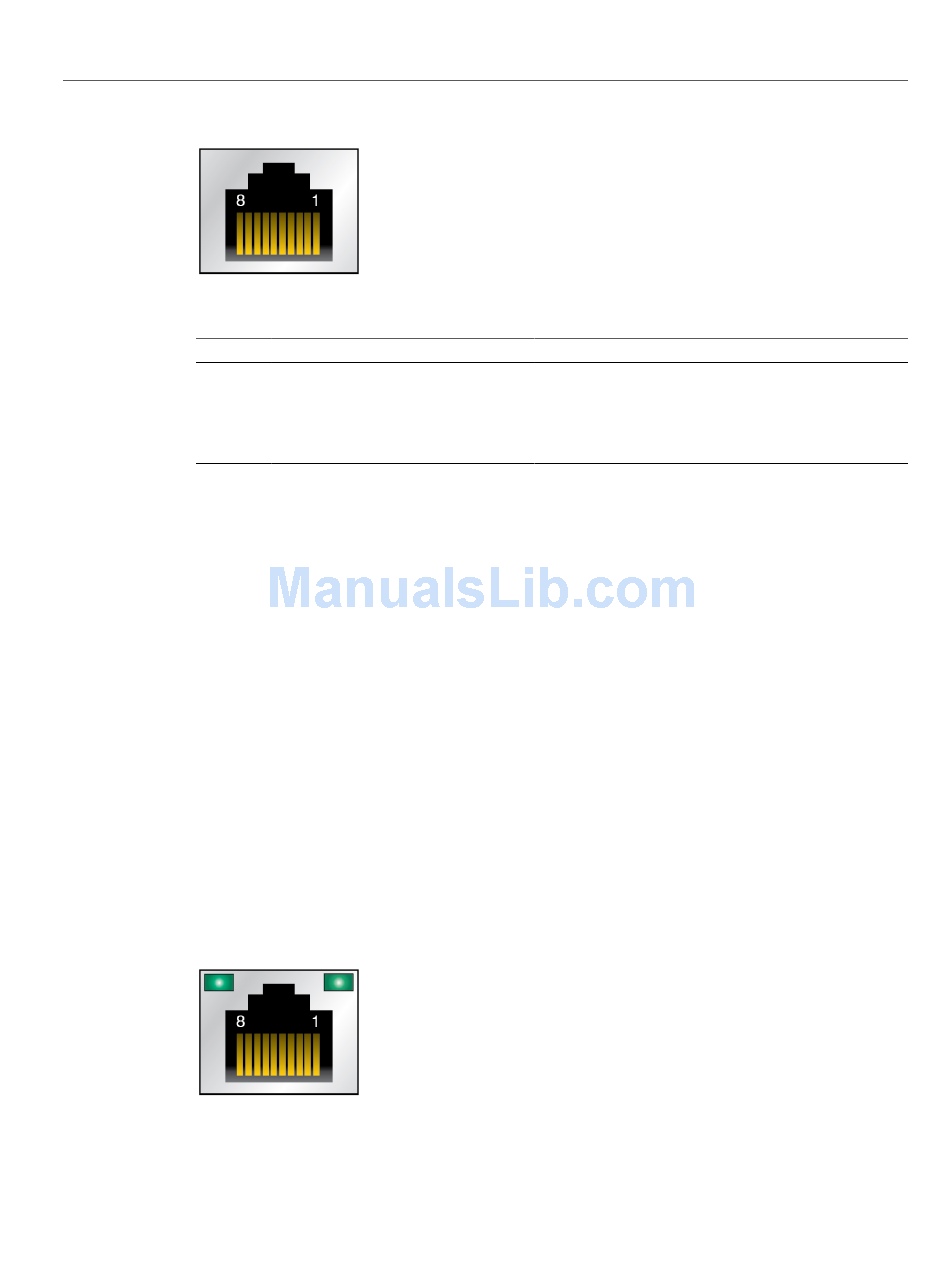

NET MGT Port
The NET MGT RJ-45 port, located on the rear panel, provides an optional Ethernet connection
to the SP. The NET MGT port is an optional connection to Oracle ILOM on the SP. The SP
NET MGT port uses an RJ-45 cable for a 10/100BASE-T connection. If your network does not
use a DHCP server, this port will not be available until you configure network settings through
the SER MGT port.
This port does not support connections to Gigabit networks.
54
SPARC T7-1 Server Installation Guide • October 2015
Signal Description
Request to Send
Data Terminal Ready
Transmit Data
Ground
Pin
Signal Description
5
Ground
6
Receive Data
7
Data Set Ready
8
Clear to Send
