NET MGT Port

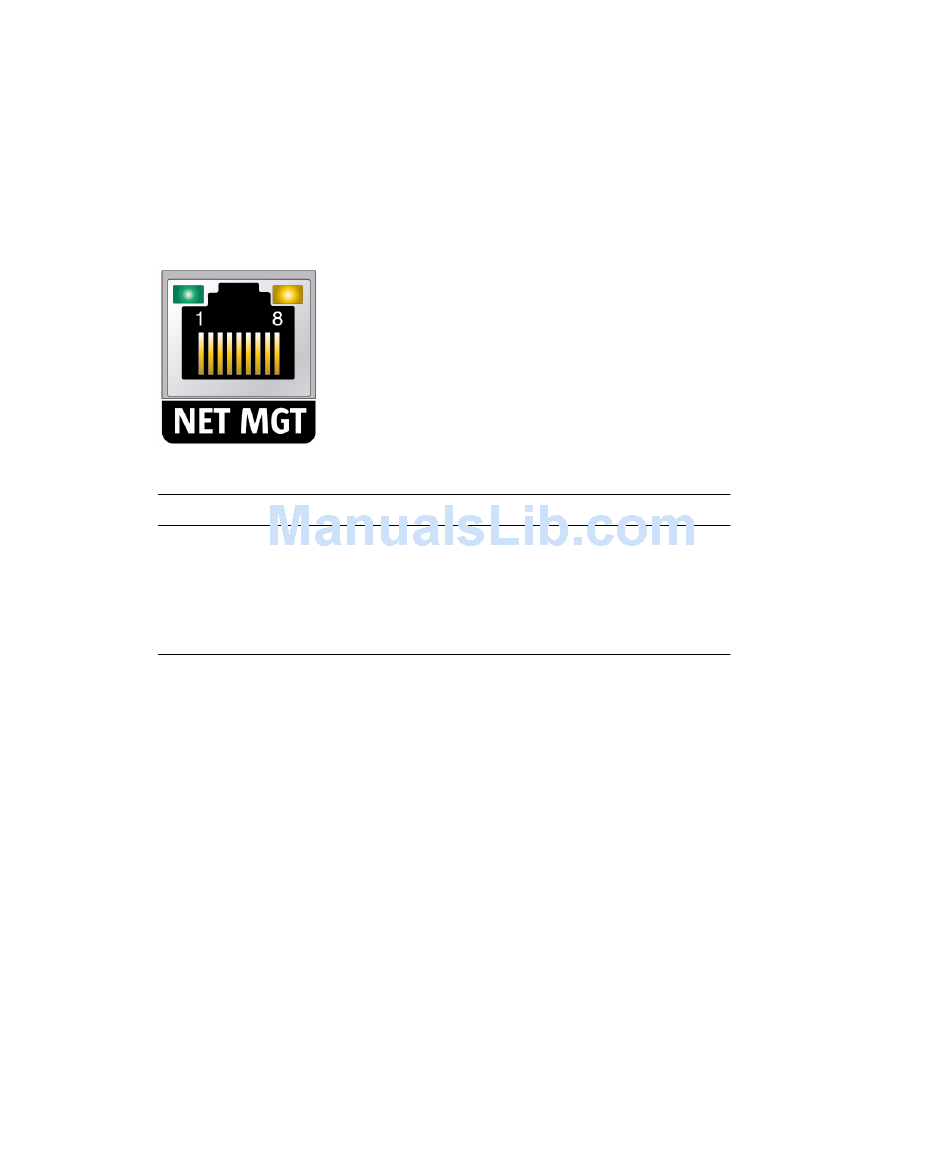

The NET MGT RJ-45 port, located on the rear panel, provides an optional Ethernet
connection to the SP. The NET MGT port is an optional connection to the Oracle
ILOM SP. The service processor network management port uses an RJ-45 cable for a
10/100BASE-T connection. If your network does not use a DHCP server, this port
will not be available until you configure network settings through the SER MGT port.
This port does not support connections to Gigabit networks.
Pin
1
2
3
4
Related Information
"Available Connections" on page 78
■
"Rear Panel Components (Installation)" on page 7
■
"SER MGT Port" on page 83
■
"Gigabit Ethernet Ports" on page 84
■
"USB Ports" on page 86
■
"Video Port" on page 86
■
"Alarm Port" on page 88
■

Gigabit Ethernet Ports

The server has four RJ-45 10-Gigabit Ethernet (10GbE) network connectors, labeled
NET 3, NET 2, NET 1, and NET 0 (left to right) on the server rear panel. Use these
ports to connect the server to the network.
84 Netra Server X3-2 Installation Guide • May 2013
Signal Description
Transmit Data +
Transmit Data -
Receive Data +
No Connect
Pin Signal Description
5 No Connect
6 Receive Data -
7 No Connect
8 No Connect
