EPSON Stylus Pro 4400/4450/4800/4880/4880C

1.2.7 Mechanism Specifications

1.2.7.1 Printable Area

Table 1-12. Printable Area
Item Roll paper / Cut Sheet
Roll paper
PW (Paper width)
Cut Sheet
Roll paper
PL (Paper length)
Cut Sheet
Roll paper
TM (Top margin)
Cut Sheet
Roll paper
BM (Bottom margin)
Cut Sheet
Roll paper
LM (Left margin)
Cut Sheet
Roll paper
RM (Right margin)
Cut Sheet
Note *: Max. value is roll paper 439.8mm(17.31"), and cut sheet 437.8mm (17.24") for
no margin print.
The printer detects paper width when paper is set (print data is accepted
for ASF). (If set paper width detection is OFF, it doesn't detect paper
width.)
It doesn't print the image beyond printable area specified with paper size
setting or detected paper width. (It may print on the platen if set paper
width detection is OFF.)
Margins of roll paper can be changed with the panel as following;
Top/bottom 15mm, left/right 3mm
Top/bottom 25mm, left/right 3mm
Top/bottom/left/right 3mm
Top/bottom/left/right 15mm
NOTE 1: Under special condition, it is possible to set right and
left margin (LM, RM) to 0.
2: When special internal pattern is printed on roll paper,
right and left side margin are fixed to 3mm.
Roll Paper Margin (p.52)"
Product Description
Dimension
*
203mm~431.8mm (17")
Max. 202m
279mm~594mm
0mm/3mm/15mm/35mm
0mm/3mm
0mm/3mm/15mm(/35mm)
0mm/3mm/14mm
0mm/3mm/15mm
0mm/3mm
0mm/3mm/15mm
0mm/3mm
"1.4.4.8
for details.
Basic Specifications
For borderless print, right and left surplus printable area is maximum 3mm
on the home position side and maximum 5mm on the other side distance
from paper edge to platen (sponge width) is less than 3mm, the maximum
surplus print quantity not on platen (0mm~3mm) is printable area.
Conditions for separating into multiple pages for printing cut sheet.
1. For thick paper, print until the bottom edge reaches to 14mm.
Remaining data is invalid and not to be printed.
2. When error occurred such as releasing paper lever when printing, then
print is separated to next page after down margin is printed.
When printing on cut sheet at resolution of 2800 x 1440dpi and setting the
bottom margin to 3mm, the actual bottom margin will be 3.8mm.
PW
LM
Printable Area

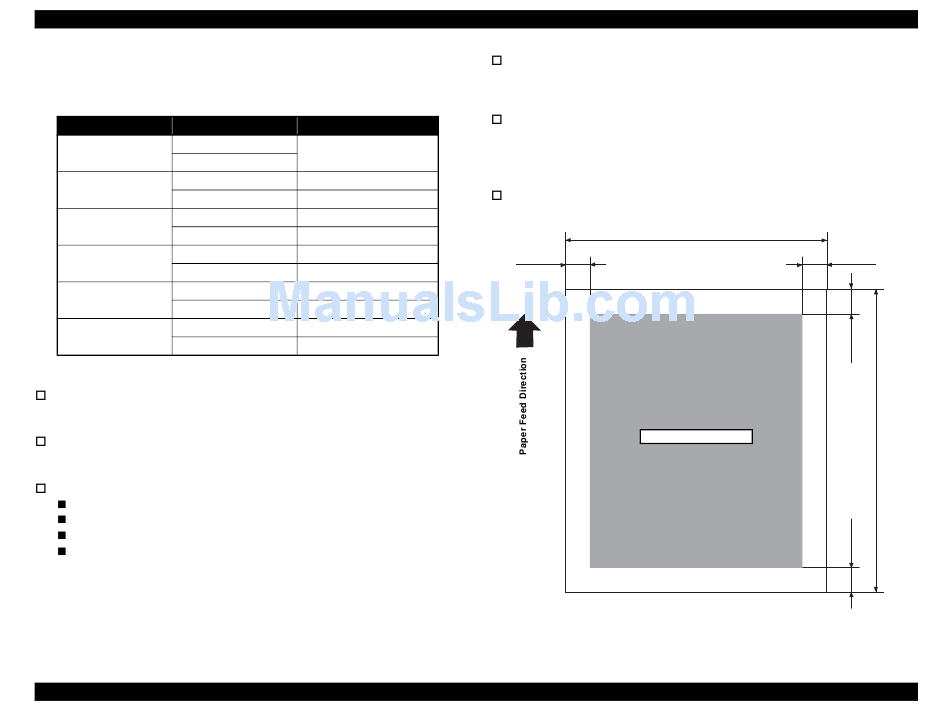

Figure 1-1. Printable Area
Revision C
RM
TM
PL
BM
19
