example, 2000KB, is reached, all incoming packets are dropped until the buffer space consumes less than
2000KB of the specified traffic.

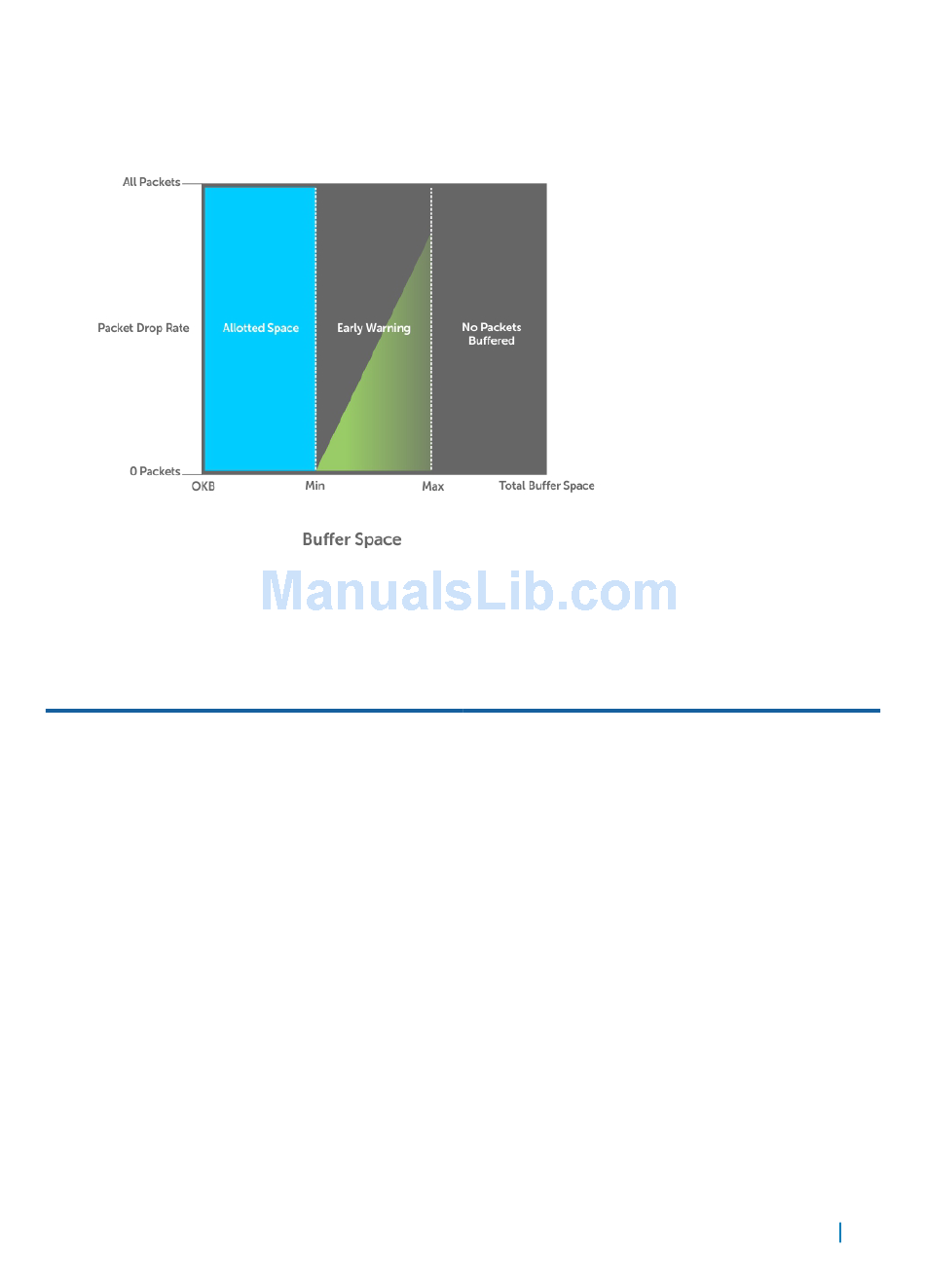

Figure 118. Packet Drop Rate for WRED
You can create a custom WRED profile or use one of the five pre-defined profiles.
Table 75. Pre-Defined WRED Profiles
Wred-profile-name
wred_drop
wred_teng_y
wred_teng_g
wred_fortyg_y
wred_fortyg_g
wred_oneg_y_pe
wred_oneg_g_pe
wred_teng_y_pe
wred_teng_g_pe
Creating WRED Profiles
To create WRED profiles, use the following commands.
1
Create a WRED profile.
min-threshold
0
594
594
594
594
154
154
154
154
max-threshold
0
5941
5941
5941
5941
1538
1538
1538
1538
Quality of Service (QoS)
max-drop-rate
100
100
50
50
25
100
50
50
25
927
