VLT AQUA Drive
Instruction Manual

6 Application Examples

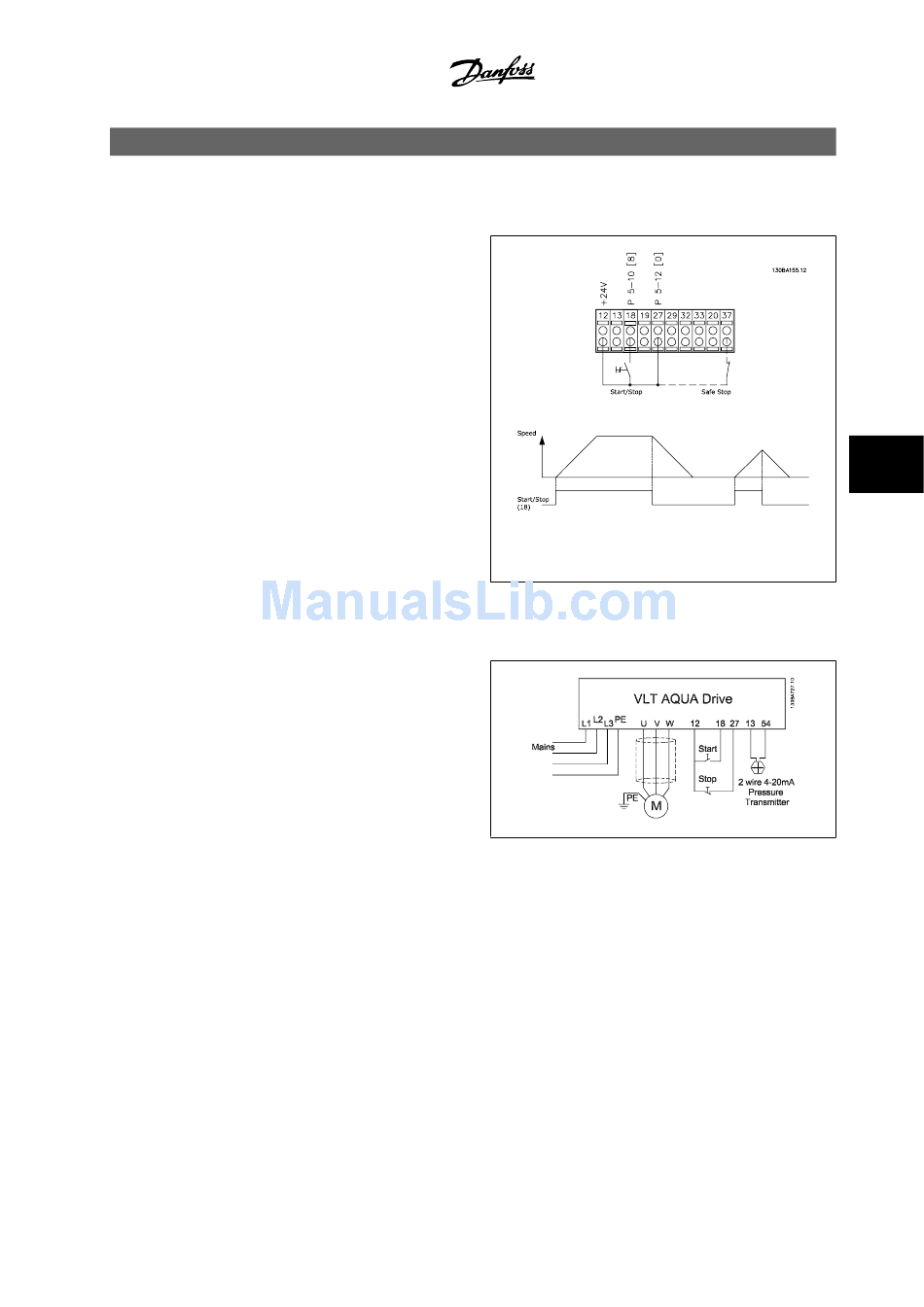

6.1.1 Start/Stop
Terminal 18 = start/stop par. 5-10 [8]
Terminal 27 = No operation par. 5-12 [0]
inverse
Digital Input, Terminal 18
Par. 5-10
Digital Input, Terminal 27
Par. 5-12
6.1.2 Closed-loop Wiring
Terminal 12 /13: +24 V DC
Terminal 18: Start par. 5-18 [8] Start (Default)
Terminal 27: Coast par. 5-12 [2] coast inverse (Default)
Terminal 54: Analog input
L1-L3: Line power terminals
U,V and W: Motor terminals
Start
No operation coast
(Default
Start
= (default)
coast inverse
= (default)
®
MG.20.M5.22 - VLT is a registered Danfoss trademark
Figure 6.1: Terminal 37: Available only with Safe Stop Func-
tion!
6 Application Examples
6
6-1
