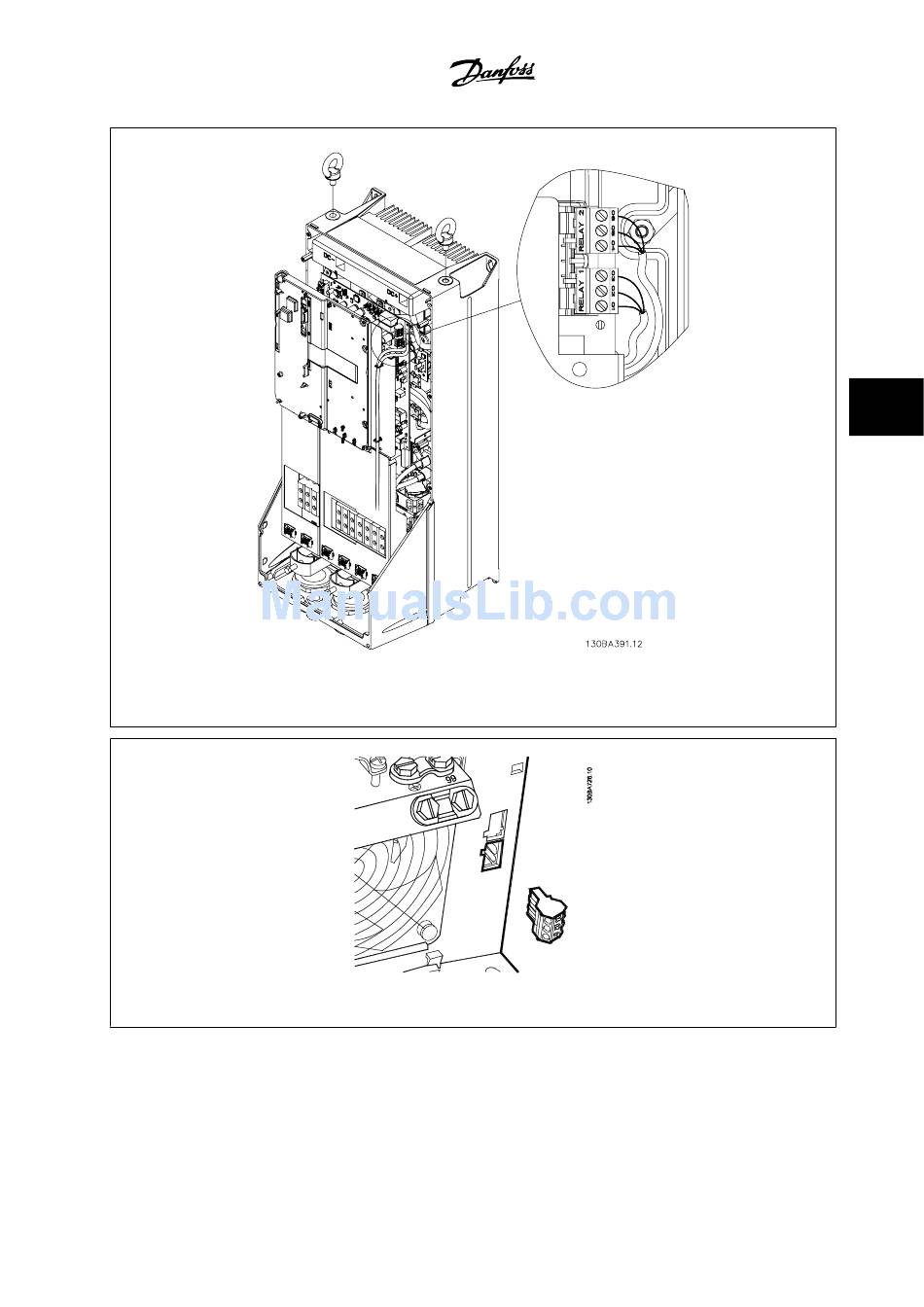

Figure 5.37: Terminals for relay connection (C1 and C2 enclosures).
The relay connections are shown in the cut-out with relay plugs (from the accessory bag) fitted.
Figure 5.38: Terminals for relay connections for B3. Only one knock-out is fitted from the factory.
®
MG.20.M5.22 - VLT
is a registered Danfoss trademark
5 Electrical installation
5
5-21
