5.2 Final optimization and test
5.2.1 Final optimization and test
To optimize motor shaft performance and optimize the adjustable frequency drive for the connected motor and installation, please follow these steps:
Ensure that the adjustable frequency drive and the motor are connected, and power is applied to the adjustable frequency drive.
NOTE!
Before power-up, ensure that connected equipment is ready for use.
Step 1. Locate motor nameplate.
NOTE!
The motor is either star- (Y) or delta-connected (Δ). This information is located on the motor nameplate data.

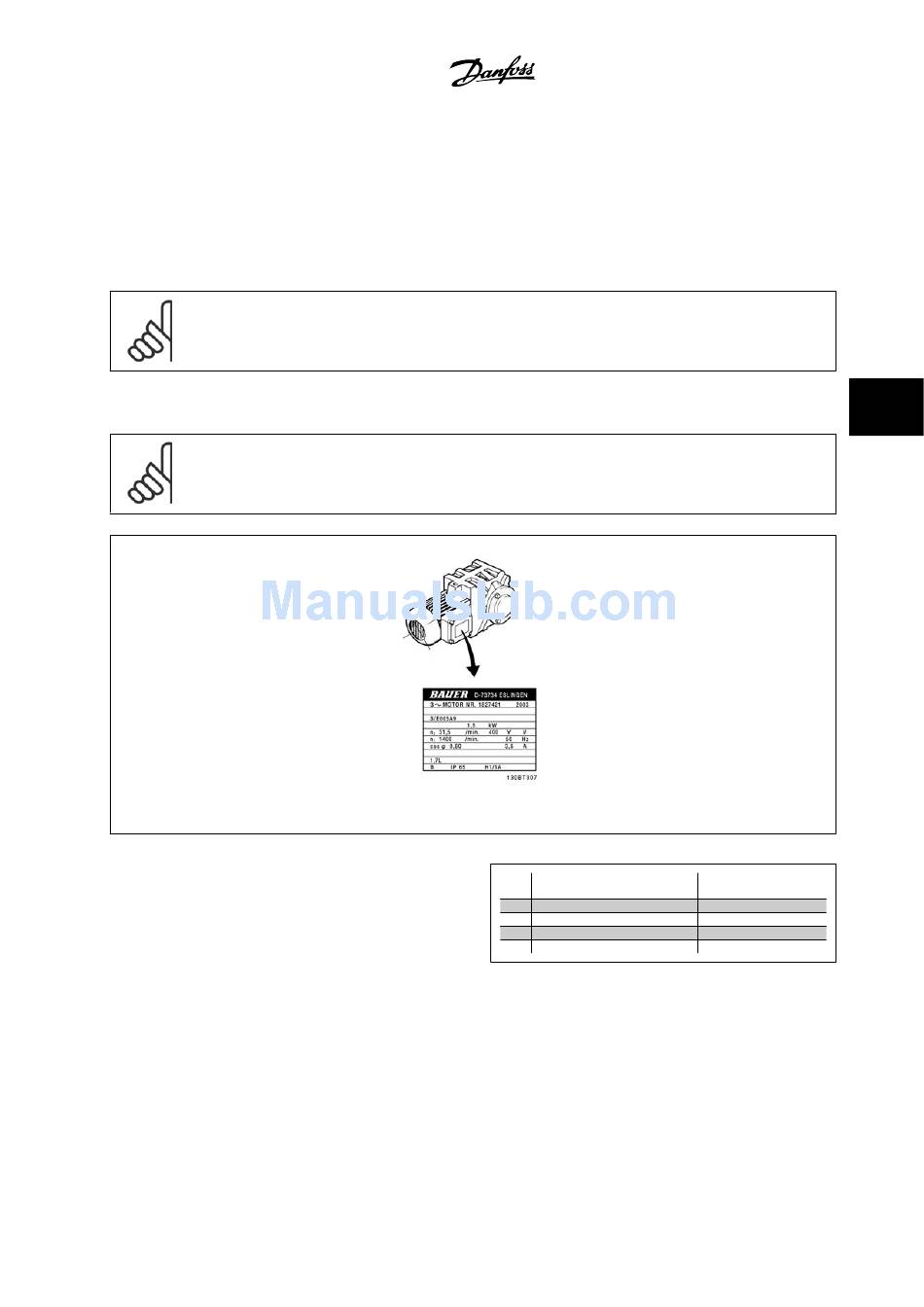

Figure 5.56: Motor nameplate example
Step 2. Enter the motor nameplate data in the following param-
eter list.
To access the list, first press [QUICK MENU] key, then select "Q2 Quick
Set-up."
1.
2.
3.
4.
5.
Table 5.8: Motor related parameters
®
MG.20.M5.22 - VLT is a registered Danfoss trademark
Motor Power [kW] par. 1-20
or Motor Power [HP] par. 1-21
Motor Voltage par. 1-22
Motor Frequency par. 1-23
Motor Current par. 1-24
Motor Nominal Speed par. 1-25
5 Electrical installation
