NOTE!
Dynamic brake calls for extra equipment and safety considerations. For further information, please contact Danfoss.
1.
Use cable clamps to connect the shield to the metal cabinet of the adjustable frequency drive and to the decoupling plate of the brake resistor.
2.
Dimension the cross-section of the brake cable to match the brake current.
NOTE!
Voltages of up to 975 V DC (@ 600 V AC) may occur between the terminals.

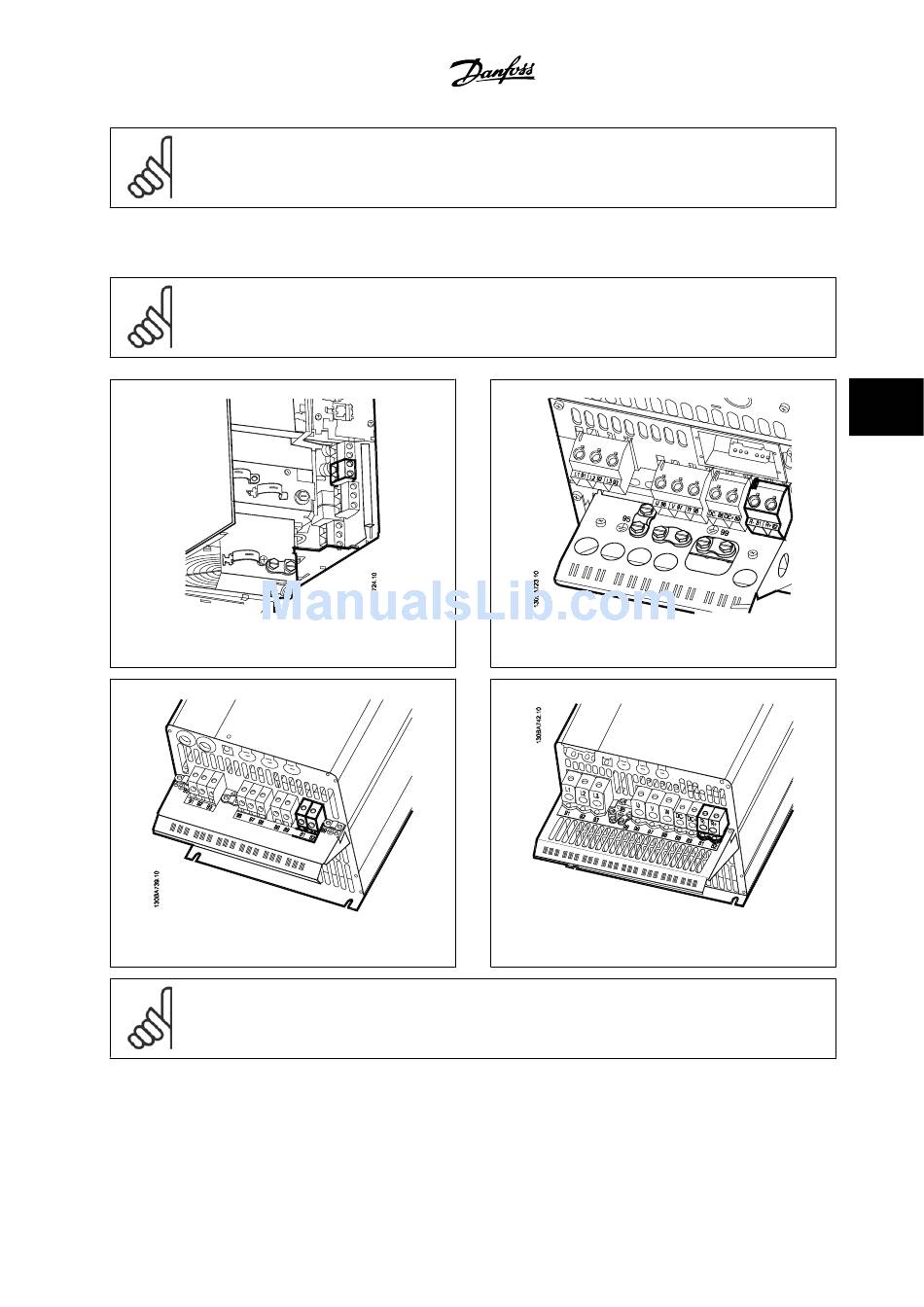

Figure 5.33: Brake connection terminal for B3.
Figure 5.35: Brake connection terminal for C3.
NOTE!
If a short circuit in the brake IGBT occurs, prevent power dissipation in the brake resistor by using a line switch or contactor to disconnect
the line power from the adjustable frequency drive. Only the adjustable frequency drive should control the contactor.
®
MG.20.M5.22 - VLT
is a registered Danfoss trademark
Figure 5.34: Brake connection terminal for B4.
Figure 5.36: Brake connection terminal for C4.
5 Electrical installation
5
5-19
