5 Electrical installation

5.1.28 How to Test Motor and Direction of Rotation.

Note that unintended motor start can occur; make sure no personnel or equipment is in danger!

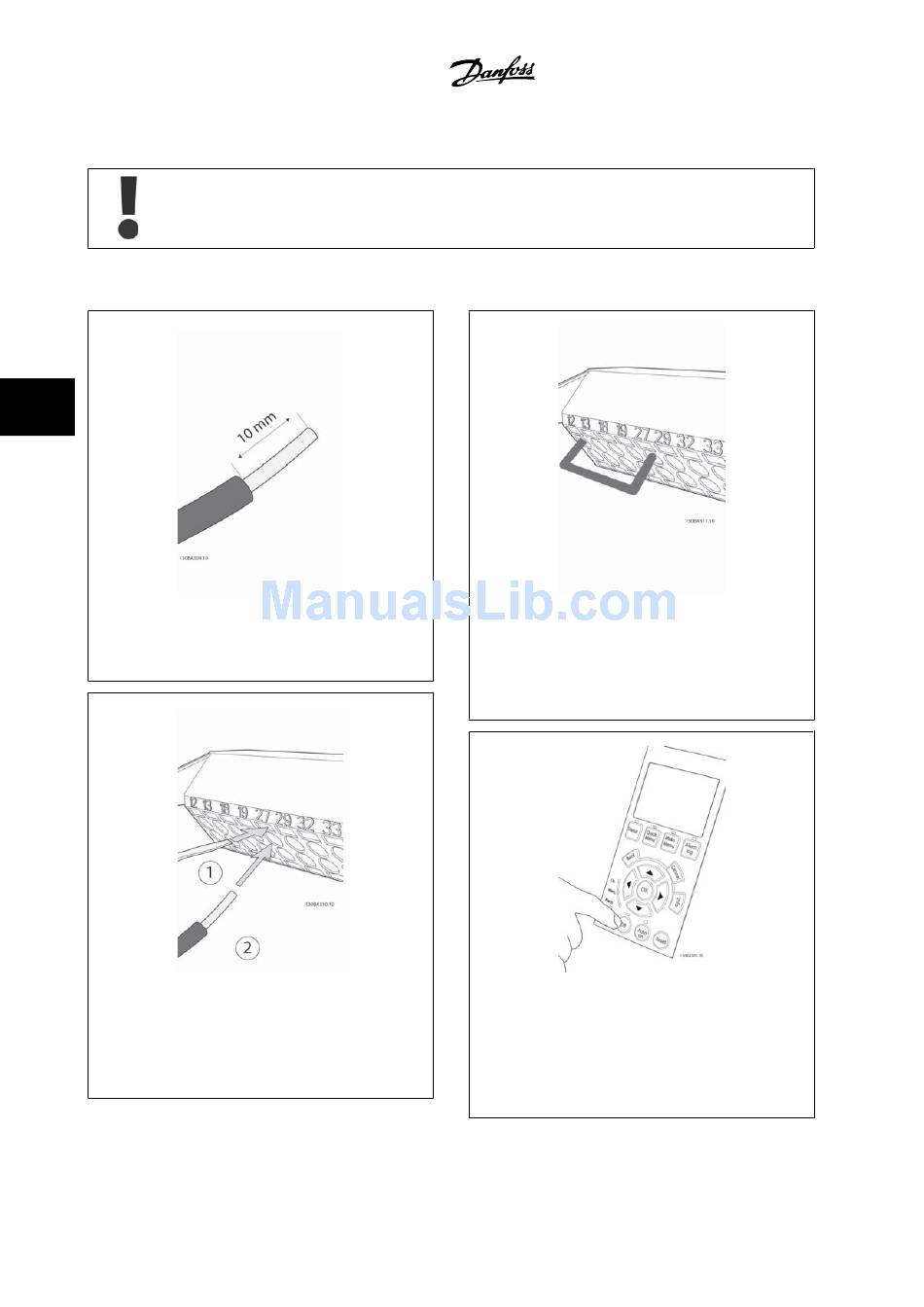

Please follow these steps to test the motor connection and direction of rotation. Start with no power to the unit.
5
Figure 5.46:
Step 1: First, remove the insulation on both ends of a 1.97–
2.76 in [50–70 mm] piece of wire.
Figure 5.47:
Step 2: Insert one end in terminal 27 using a suitable ter-
minal screwdriver. (Note: For units with the Safe Stop func-
tion, the existing jumper between terminal 12 and 37 should
not be removed for the unit to be able to run!)
5-26
Figure 5.48:
Step 3: Insert the other end in terminal 12 or 13. (Note:
For units with the Safe Stop function, the existing jumper
between terminal 12 and 37 should not be removed for the
unit to be able to run!)
Figure 5.49:
Step 4: Power up the unit and press the [Off] button. In
this state, the motor should not rotate. Press [Off] to stop
the motor at any time. Note that the LED on the [OFF] but-
ton should be lit. If alarms or warnings are flashing, please
see chapter 7 for more information.
®
