5 Electrical installation

5.1.19 DC bus connection

The DC bus terminal is used for DC back-up, with the intermediate circuit being supplied from an external source.
Terminal numbers used: 88, 89
5

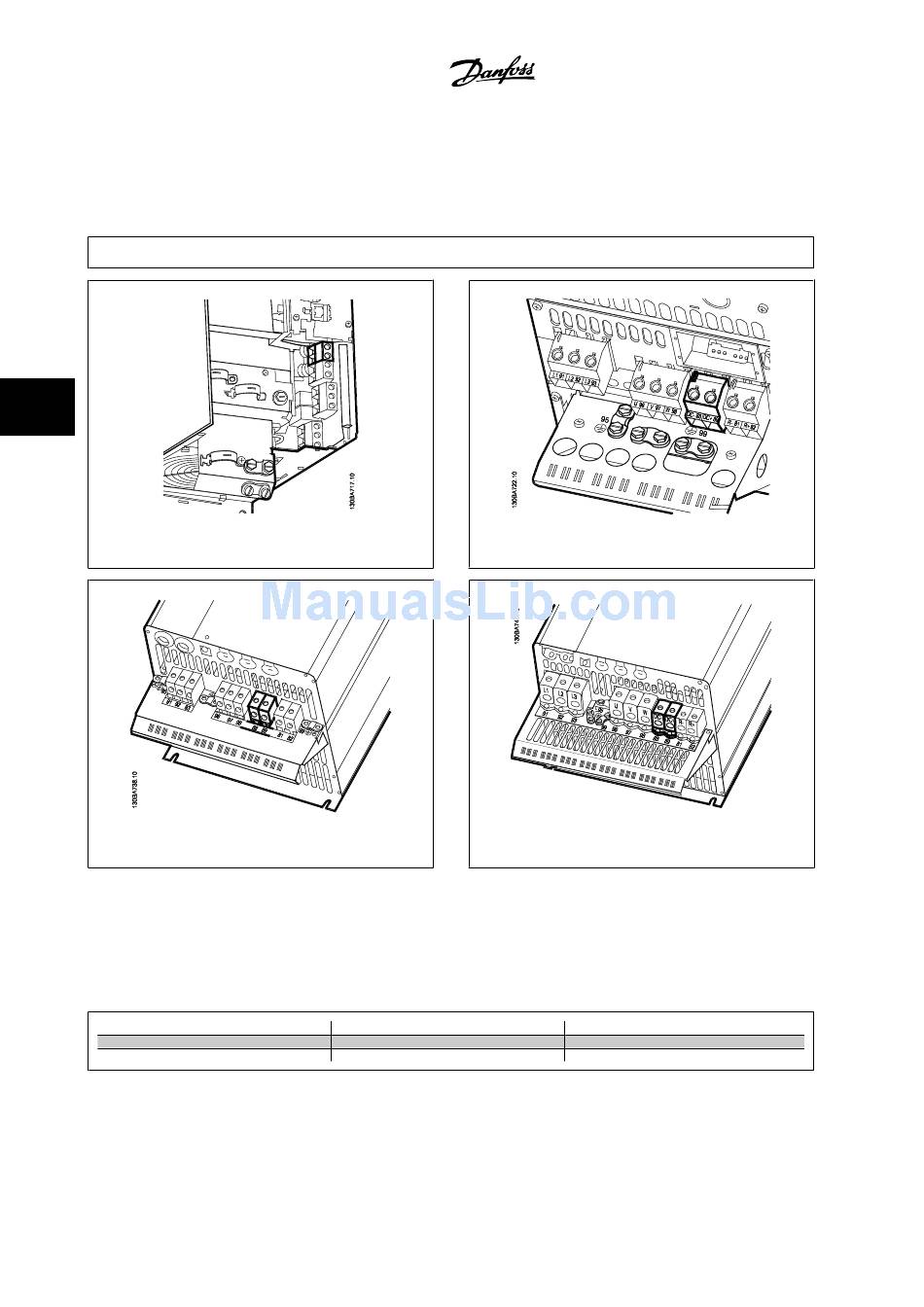

Figure 5.29: DC bus connections for enclosure B3.
Figure 5.31: DC bus connections for enclosure C3.
Please contact Danfoss if you require further information.
5.1.20 Brake Connection Option
The connection cable to the brake resistor must be shielded/armored.
Enclosure
Brake resistor
Terminals
5-18
Figure 5.30: DC bus connections for enclosure B4.
Figure 5.32: DC bus connections for enclosure enclosure C4.
A+B+C+D+F
81
R-
®
MG.20.M5.22 - VLT is a registered Danfoss trademark
®
VLT AQUA Drive
Instruction Manual
A+B+C+D+F
82
R+
