VLT AQUA Drive
Instruction Manual

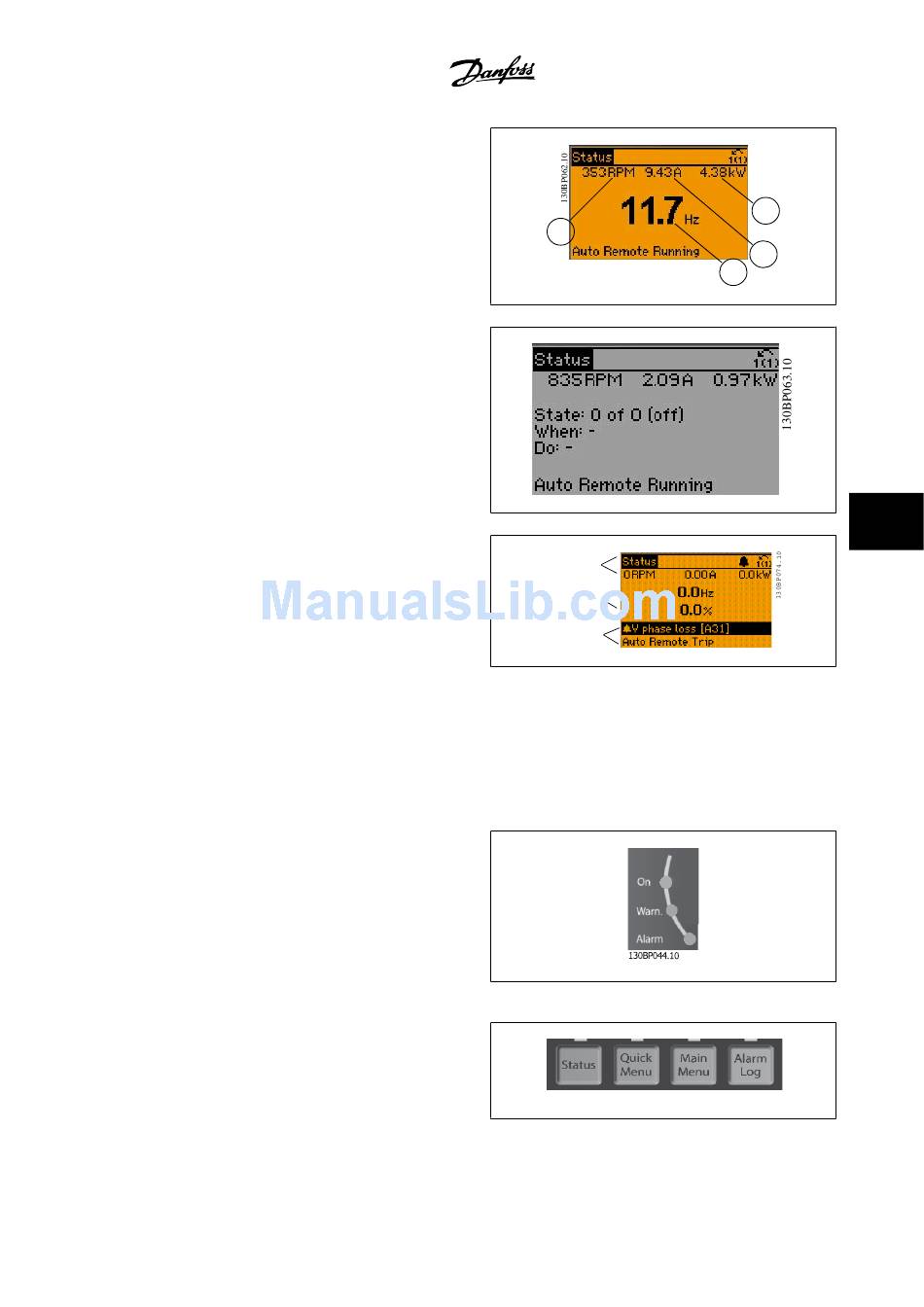

Status display II
See the operating variables (1.1, 1.2, 1.3 and 2) shown in the display in
this illustration.
In the example, Speed, Motor current, Motor power and Frequency are
selected as variables in the first and second lines.
1.1, 1.2 and 1.3 are shown in small size, while 2 is shown in large size.
Status display III:
This state displays the event and action of the smart logic control. For
further information, see the section
Bottom section
always shows the state of the adjustable frequency drive in status mode.
Display Contrast Adjustment
Press [status] and [▲] for darker display.
Press [status] and [▼] for brighter display.
LEDs:
If certain threshold values are exceeded, the alarm and/or warning LED lights up. A status and alarm text appears on the control panel.
The On LED is activated when the adjustable frequency drive receives power from AC line voltage, a DC bus terminal or an external 24 V supply. At the
same time, the back light is on.
• Green LED/On: Control section is working.
• Yellow LED/Warn.: Indicates a warning.
• Flashing Red LED/Alarm: Indicates an alarm.
GLCP keys
Menu keys
The menu keys are divided into functions. The keys below the display and
LEDs are used for parameter set-up, including display indication selection
during normal operation.
Smart Logic Control .
®
MG.20.M5.22 - VLT is a registered Danfoss trademark
7 How to operate the adjustable frequency
1.1
Top section
Middle section
Bottom section
drive
1.3
1.2
2
7
130BP045.10
7-3
