7 How to operate the adjustable frequency
drive

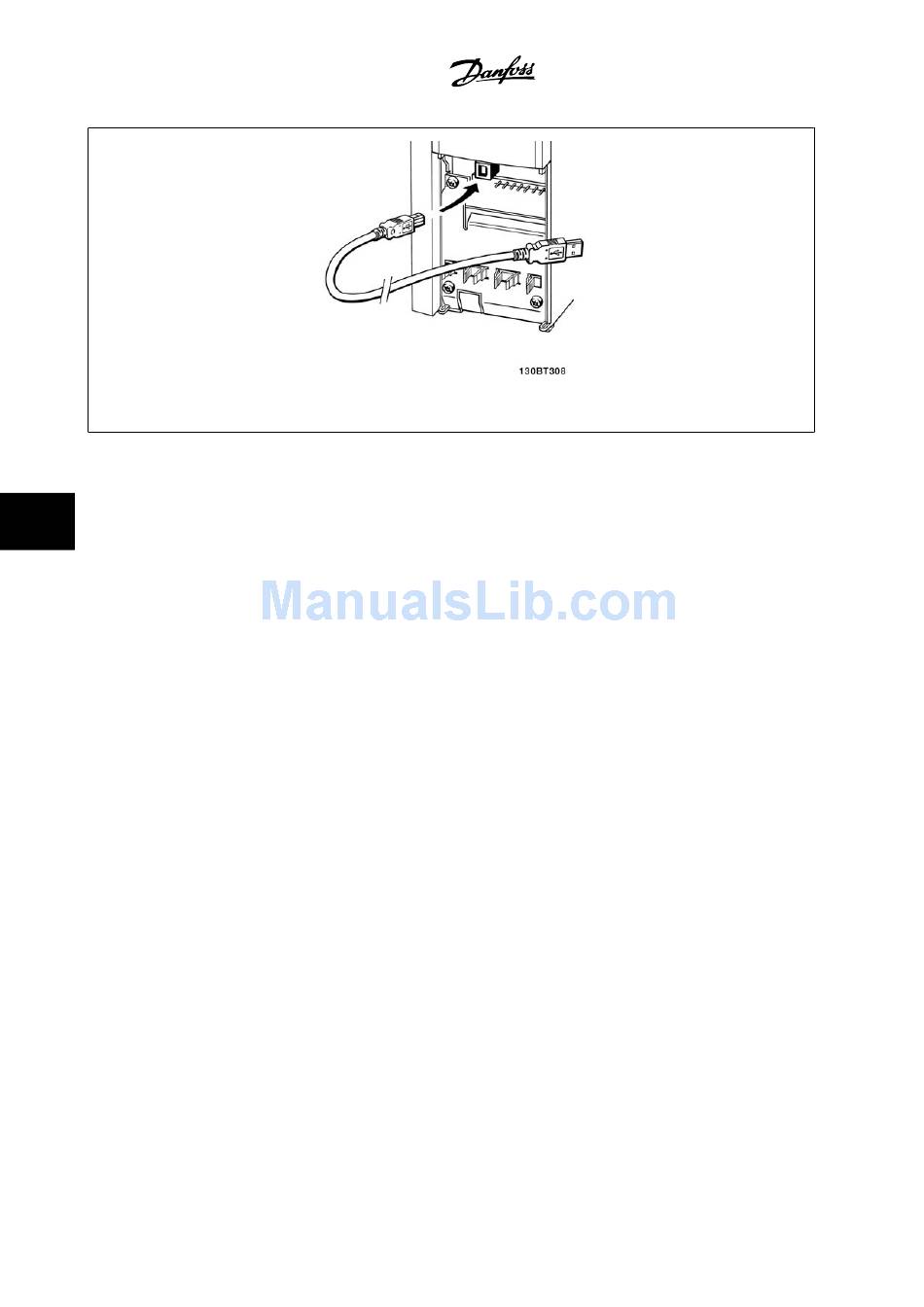

Figure 7.10: For control cable connections, see section on
7.1.14 PC Software tools
7
PC-based Configuration Tool MCT 10
All adjustable frequency drives are equipped with a serial communication port. Danfoss provides a PC tool for communication between the PC and the
adjustable frequency drive, PC-based Configuration Tool MCT 10. Please check the section on
MCT 10 Set-up Software
The MCT 10 has been designed as an easy-to-use interactive tool for setting parameters in our adjustable frequency drives. The software can be down-
loaded from the Danfoss internet site
The MCT 10 Set-up software will be useful for:
• Planning a communication network off-line. MCT 10 contains a complete adjustable frequency drive database
• Commissioning adjustable frequency drives on-line.
• Saving settings for all adjustable frequency drives.
• Replacing an adjustable frequency drive in a network.
• Simple and accurate documentation of adjustable frequency drive settings after commissioning.
• Expanding an existing network.
• Adjustable frequency drives developed in the future will be fully supported.
MCT 10 set-up software supports Profibus DP-V1 via a master class 2 connection. This makes it possible to access on-line read/write parameters in an
adjustable frequency drive via the Profibus network. This will eliminate the need for an extra communication network.
Save Adjustable Frequency Drive Settings:
1. Connect a PC to the unit via the USB COM port. (Note: Use a PC that is isolated from the line power, in conjunction with the USB port. Failure
to do so may damage equipment.)
2. Open MCT 10 Set-up Software
3. Choose "Read from drive".
4. Choose "Save as".
All parameters are now stored on the PC.
7-12
Control Terminals
http://www.Danfoss.com/BusinessAreas/DrivesSolutions/Softwaredownload/DDPC+Software+Program.htm
MG.20.M5.22 - VLT
.
Available Literature for detailed information on this tool.
®
