8.1.4 Q2 Quick Set-up

The parameters in Q2 Quick Set-up are the basic parameters which are always needed to set up the adjustable frequency drive for operation.
Parameter number and name
0-01 Language
1-20 Motor Power
1-22 Motor Voltage
1-23 Motor Frequency
1-24 Motor Current
1-25 Motor Nominal Speed
3-41 Ramp 1 Ramp-up Time
3-42 Ramp 1 Ramp-down Time
4-11 Motor Speed Low Limit
4-13 Motor Speed High Limit
1-29 Automatic Motor Adaptation (AMA)
8.1.5 Q3 Function Set-ups
The function set-up provides quick and easy access to all parameters required for the majority of water and wastewater applications including variable
torque, constant torque, pumps, dosing pumps, well pumps, booster pumps, mixer pumps, aeration blowers and other pump and fan applications. Among
other features, it also includes parameters for selecting which variables to display on the LCP, digital preset speeds, scaling of analog references, closed-
loop single zone and multi-zone applications and specific functions related to water and wastewater applications.
Example of how to access Function Set-up:

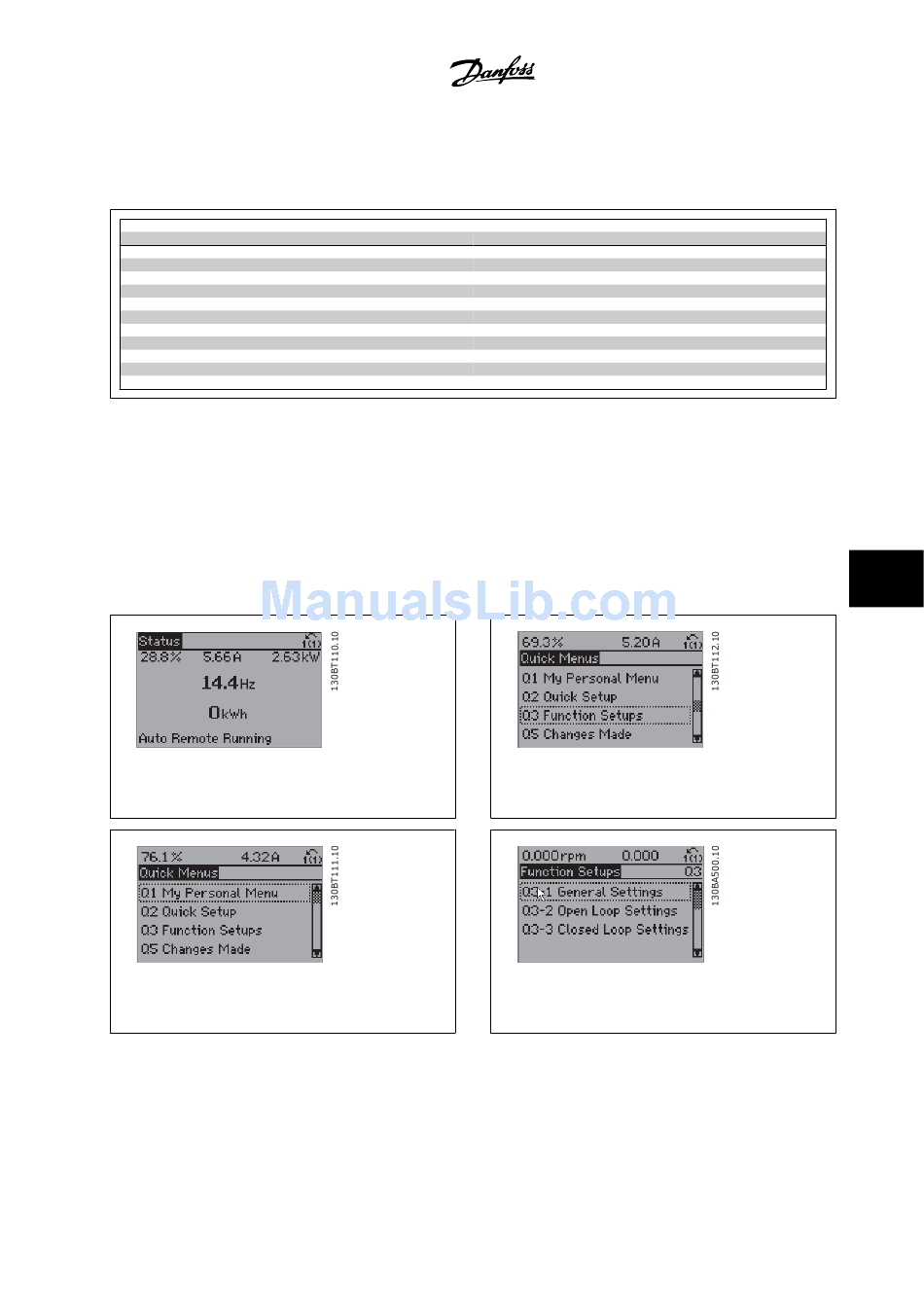

Figure 8.2: Step 1: Turn on the adjustable frequency drive
(On LED lights)
Figure 8.3: Step 2: Press the [Quick Menus] button (quick
menu choices appear).
Q2 Quick Set-up
Unit
kW
V
Hz
A
RPM
s
s
RPM
RPM
®
