5.1.17 Motor connection for C1 and C2

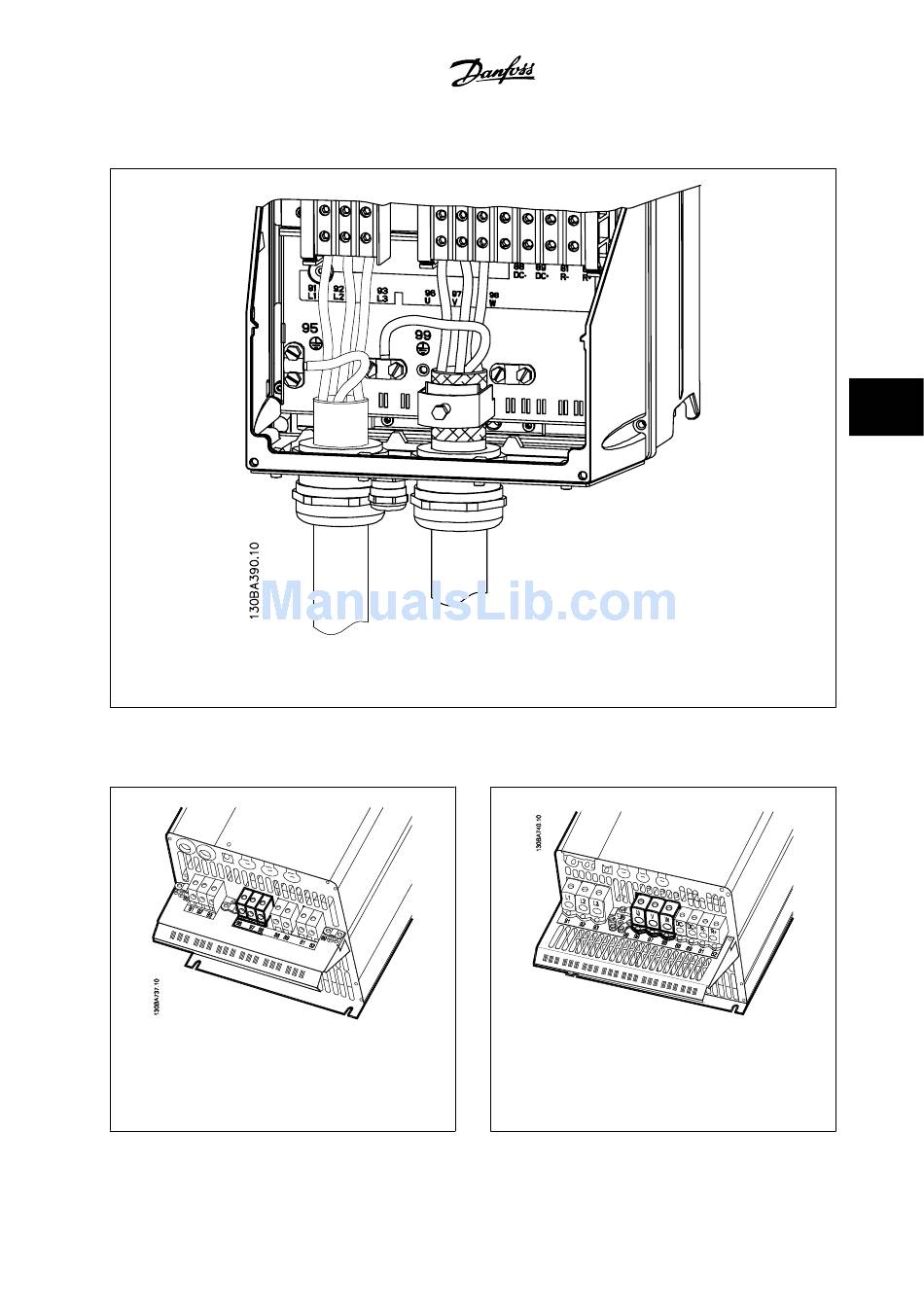

Figure 5.26: First terminate the motor ground, then place motor U, V and W wires in the terminal and tighten them. Please ensure that the
outer insulation of the motor cable is removed under the EMC clamp.
5.1.18 Motor connection for C3 and C4
Figure 5.27: First terminate the motor ground, then place
motor U, V and W wires in the terminal and tighten them.
Please ensure that the outer insulation of the motor cable is
removed under the EMC clamp.
®
MG.20.M5.22 - VLT is a registered Danfoss trademark
Figure 5.28: First terminate the motor ground, then place
motor U, V and W wires in the terminal and tighten them.
Please ensure that the outer insulation of the motor cable is
removed under the EMC clamp.
