Danfoss vlt AQUA Instruction Manual page 38

5 Electrical installation
5.1.15 Motor connection for B1 and B2
5

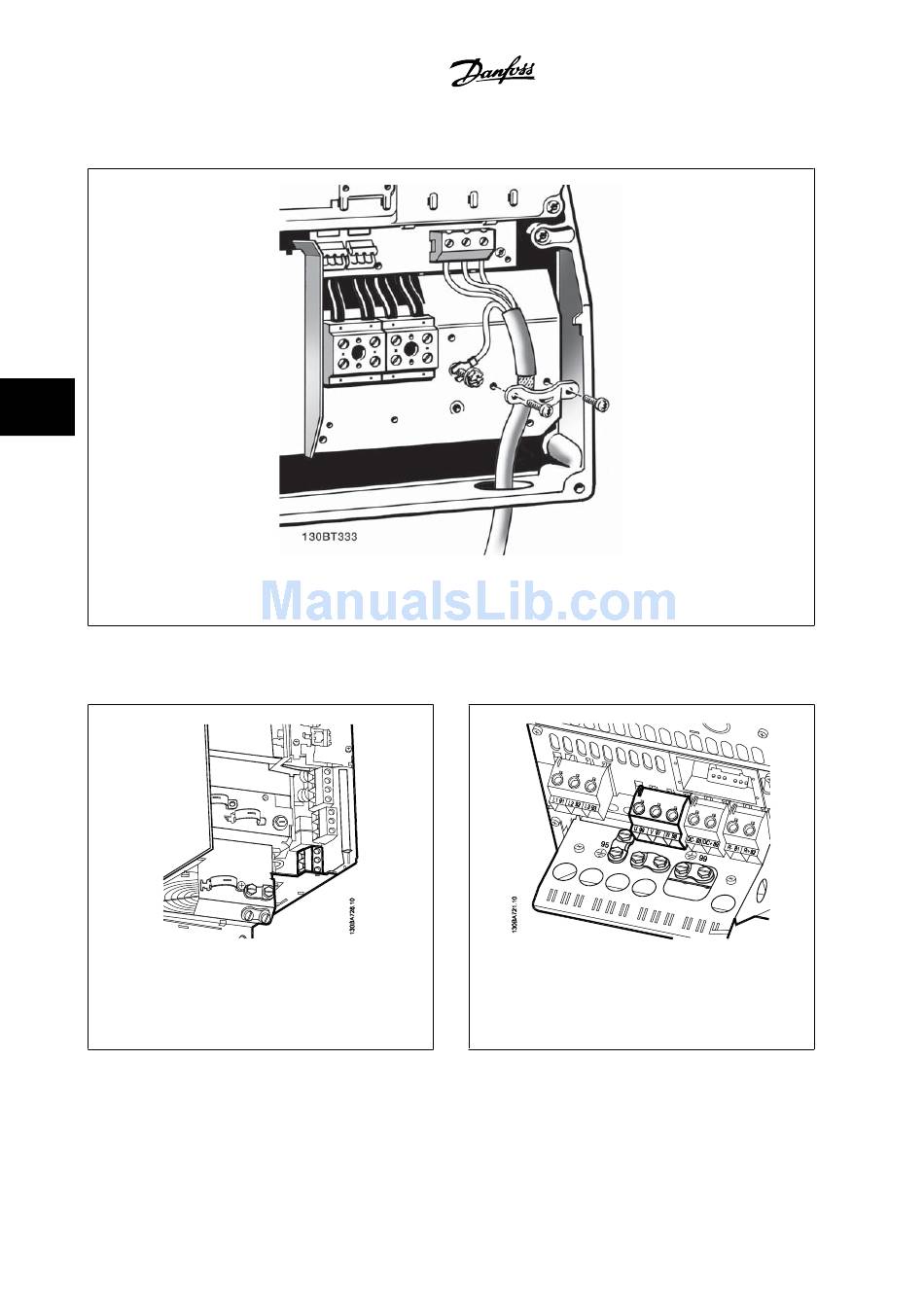

Figure 5.23: First terminate the motor ground, then place motor U, V and W wires in the terminal and tighten them. Please ensure that the
outer insulation of the motor cable is removed under the EMC clamp.
5.1.16 Motor connection for B3 and B4
Figure 5.24: First terminate the motor ground, then place
motor U, V and W wires in the terminal and tighten them.
Please ensure that the outer insulation of the motor cable is
removed under the EMC clamp.
5-16
Figure 5.25: First terminate the motor ground, then place
motor U, V and W wires in the terminal and tighten them.
Please ensure that the outer insulation of the motor cable is
removed under the EMC clamp.
®
MG.20.M5.22 - VLT is a registered Danfoss trademark
®
VLT AQUA Drive
Instruction Manual
