VLT AQUA Drive
Instruction Manual

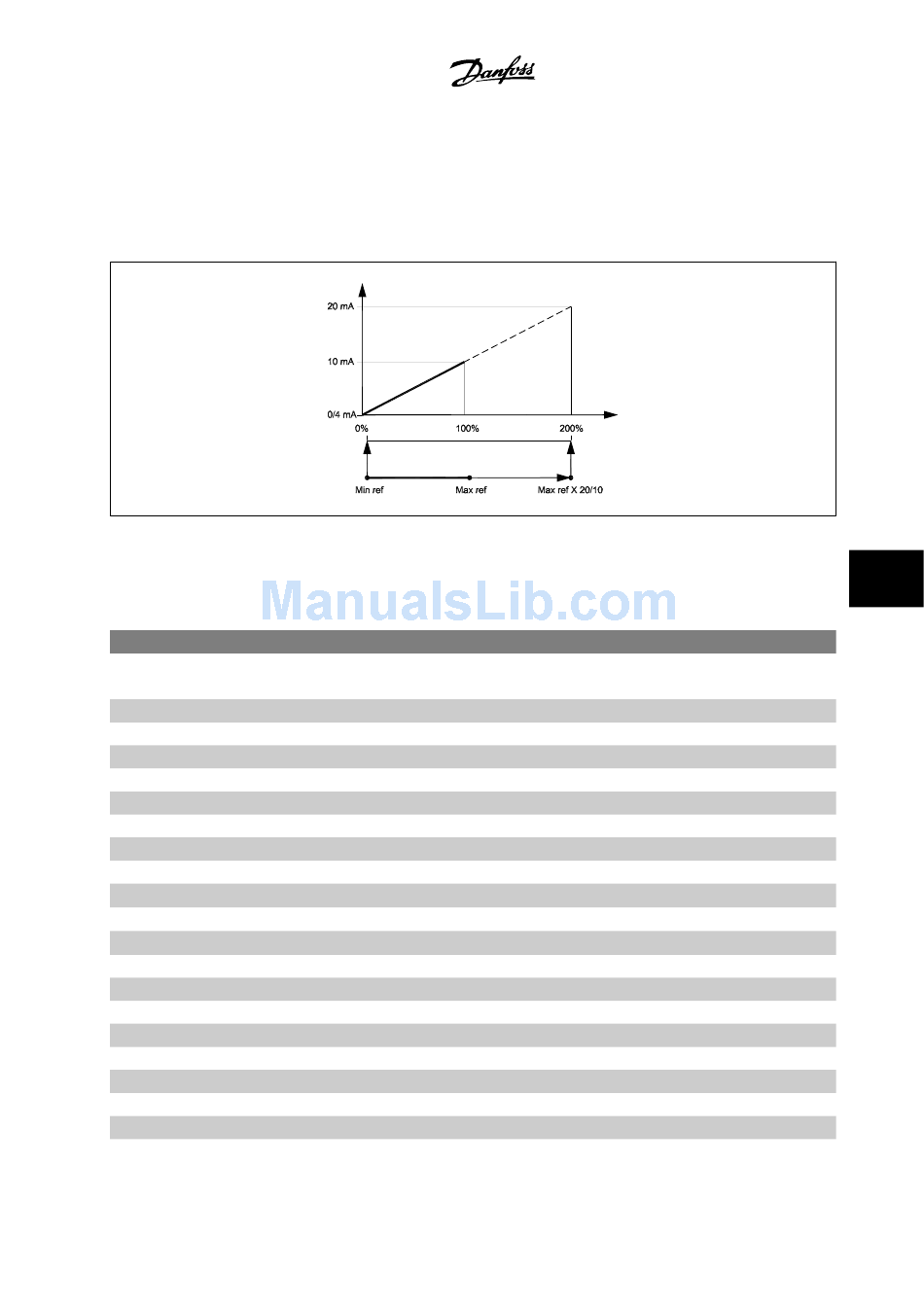

EXAMPLE 3:
Variable value= REFERENCE, range= Min ref - Max ref
Range needed for output= Min ref (0%) - Max ref (100%), 0–10 mA
Output signal 0 or 4 mA is needed at Min ref - set par.6-51
Output signal 10 mA is needed at Max ref (100% of range) - set par.6-52
(20 mA / 10 mA x 100%=200%).
8.2.9 Drive Closed-loop, 20-**
This parameter group is used for configuring the closed-loop PID controller, which controls the output frequency of the adjustable frequency drive.
20-12 Reference/Feedback Unit
Option:
[0] None
[1] * %
[5] PPM
[10] 1/min
[11] RPM
[12] Pulse/s
[20] l/s
[21] l/min
[22] l/h
[23] 3
m /s
[24] m 3 /min
[25] 3
m /h
[30] kg/s
[31] kg/min
[32] kg/h
[33] t/min
[34] t/h
[40] m/s
[41] m/min
[45] m
Terminal 42 Output Min Scale
Terminal 42 Output Max Scale
Function:
®
MG.20.M5.22 - VLT is a registered Danfoss trademark
8 How to program the adjustable frequency
to 0%
to 200%
drive
8
8-33
