Danfoss vlt AQUA Instruction Manual page 44

5 Electrical installation

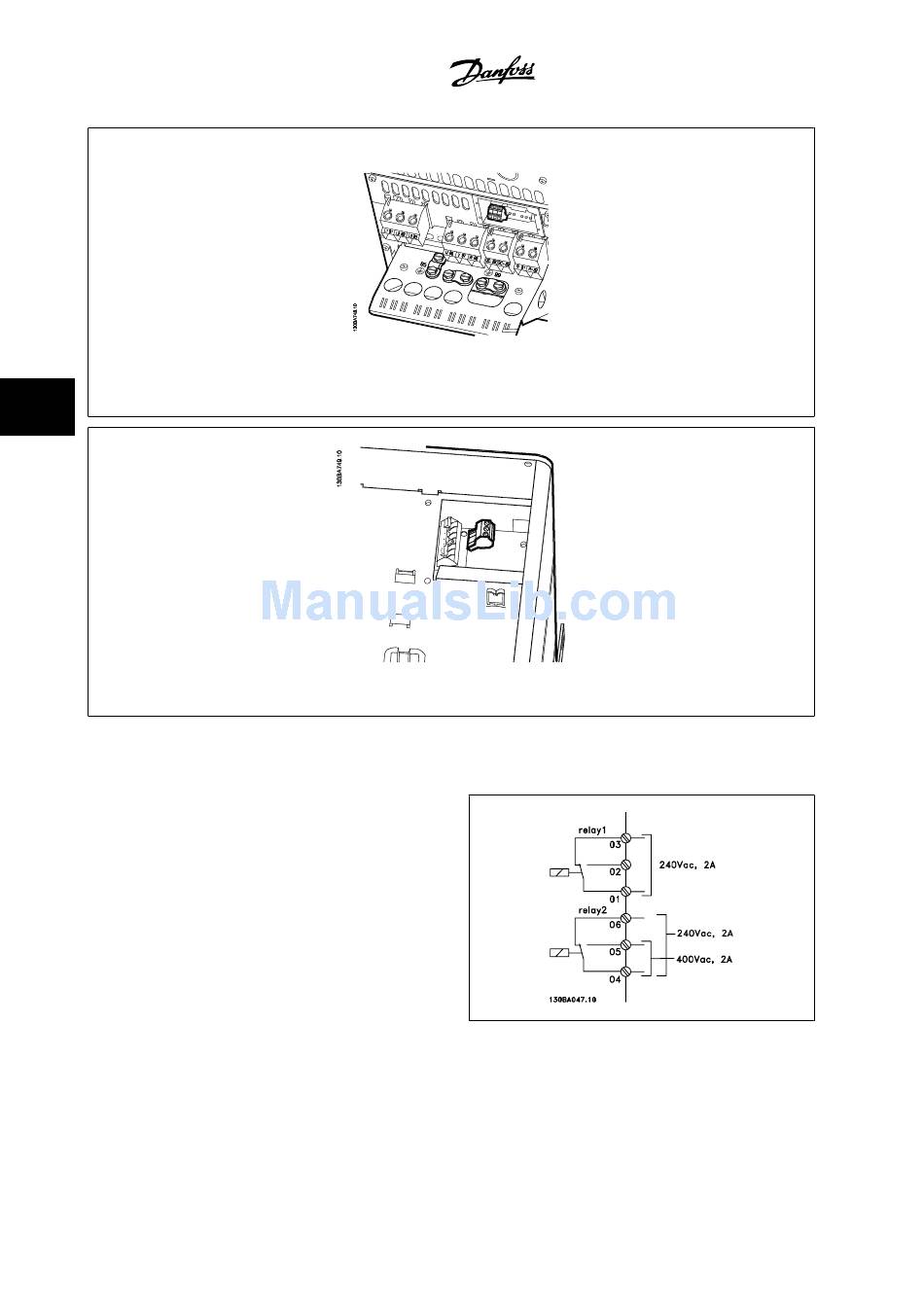

Figure 5.39: Terminals for relay connections for B4.
5
Figure 5.40: Terminals for relay connections for C3 and C4. Located in the upper right corner of the adjustable frequency drive.
5.1.22 Relay Output
Relay 1
• Terminal 01: common
• Terminal 02: normal open 240 V AC
• Terminal 03: normal closed 240 V AC
Relay 2
• Terminal 04: common
• Terminal 05: normal open 400 V AC
• Terminal 06: normal closed 240 V AC
Relay 1 and relay 2 are programmed in par. 5-40
On Delay, Relay
par. 5-41
Additional relay outputs by using option module MCB 105.
5-22
Function Relay
Off Delay, Relay
, and par. 5-42 .
MG.20.M5.22 - VLT
,
®
is a registered Danfoss trademark
®
VLT AQUA Drive
Instruction Manual
