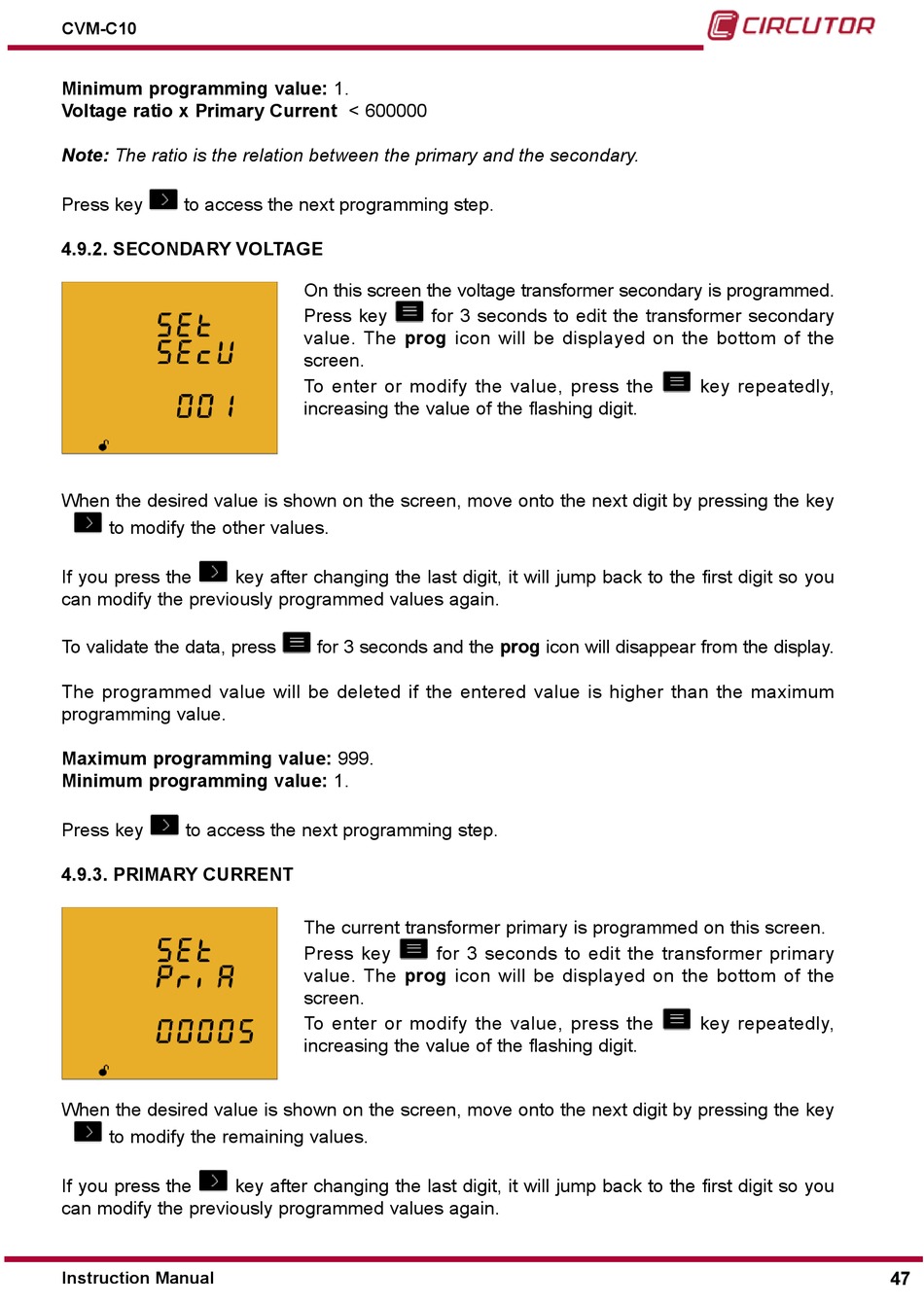

4�9�2� Secondary Voltage; 4�9�3� Primary Current - Circutor CVM-C10 Instruction Manual

CVM-C10
Minimum programming value: 1.
Voltage ratio x Primary Current < 600000
Note: The ratio is the relation between the primary and the secondary.
Press key to access the next programming step.
4�9�2� SeCONDARy VOLTAge
When the desired value is shown on the screen, move onto the next digit by pressing the key
to modify the other values.
If you press the key after changing the last digit, it will jump back to the first digit so you
can modify the previously programmed values again.
To validate the data, press
The programmed value will be deleted if the entered value is higher than the maximum
programming value.
Maximum programming value: 999.
Minimum programming value: 1.
Press key to access the next programming step.
4�9�3� PRIMARy CURReNT
When the desired value is shown on the screen, move onto the next digit by pressing the key
to modify the remaining values.
If you press the key after changing the last digit, it will jump back to the first digit so you
can modify the previously programmed values again.
Instruction Manual
On this screen the voltage transformer secondary is programmed.
Press key for 3 seconds to edit the transformer secondary
value. The prog icon will be displayed on the bottom of the
screen.
To enter or modify the value, press the
increasing the value of the flashing digit.
for 3 seconds and the prog icon will disappear from the display.
The current transformer primary is programmed on this screen.
Press key for 3 seconds to edit the transformer primary
value. The prog icon will be displayed on the bottom of the
screen.
To enter or modify the value, press the
increasing the value of the flashing digit.
key repeatedly,
key repeatedly,
47
