3�5�13�- MeASURINg SINgLe-PhASe NeTWORKS, PhASe TO PhASe, WITh A 2-WIRe
CONNeCTION, CVM-C10-fLeX MODeL�
L1
L2

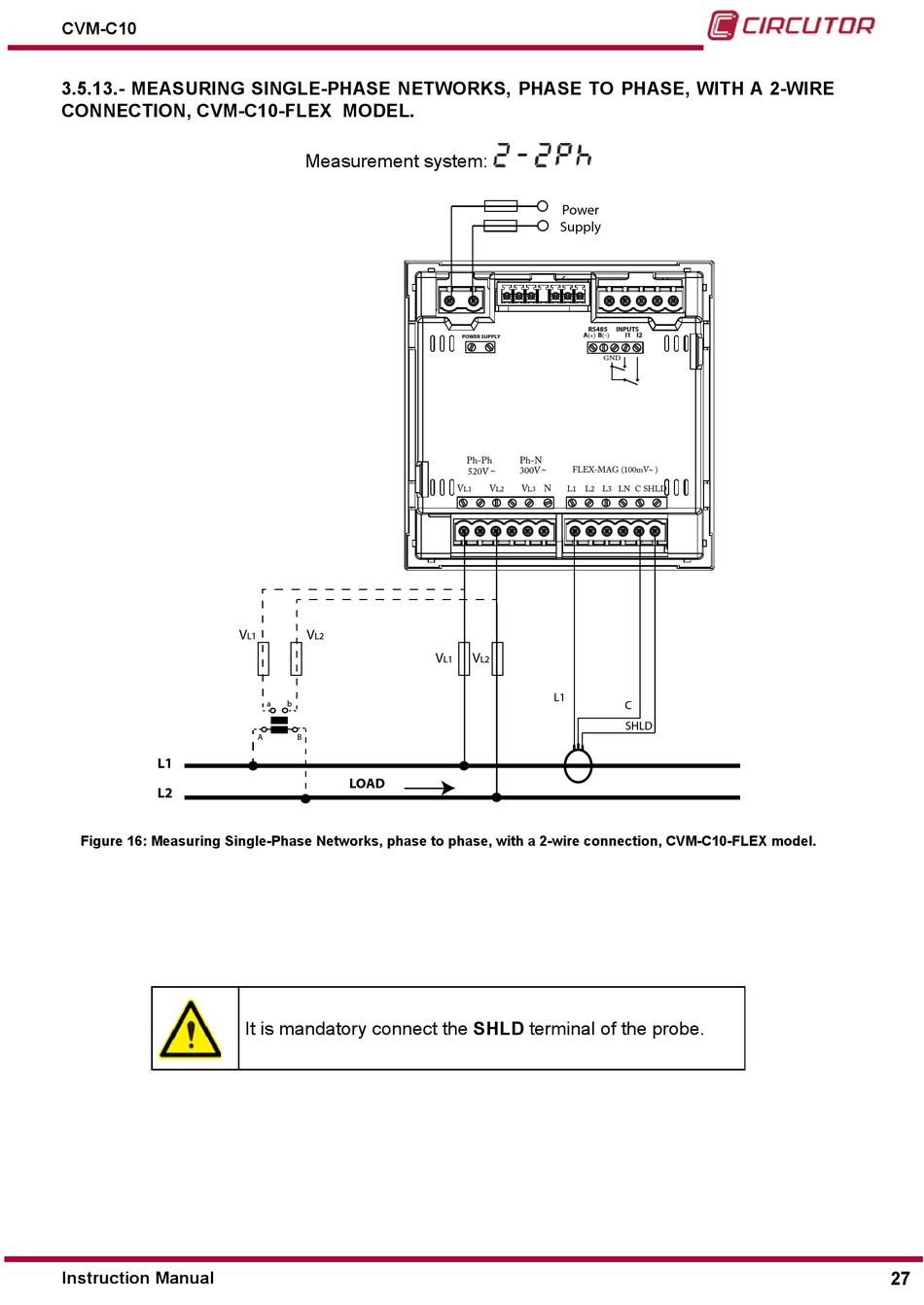

figure 16: Measuring Single-Phase Networks, phase to phase, with a 2-wire connection, CVM-C10-fLeX model�
Instruction Manual
Measurement system:
V V
L1 L2
a b
A B
LOAD
It is mandatory connect the ShLD terminal of the probe.
Power
Supply
RS485
A(+) B(-)
POWER SUPPLY
GND
Ph-Ph Ph-N
300V ~
520V ~ FLEX-MAG (100mV~ )
V V V N
L1 L2 L3 LN C SHLD
L1 L2 L3
V V
L1 L2
L1
INPUTS
I1 I2
C
SHLD
