Symbols T1, T2 and T3 on the display indicate the three tariffs available on the device.
The corresponding symbol flashes to indicate the selected tariff.
42

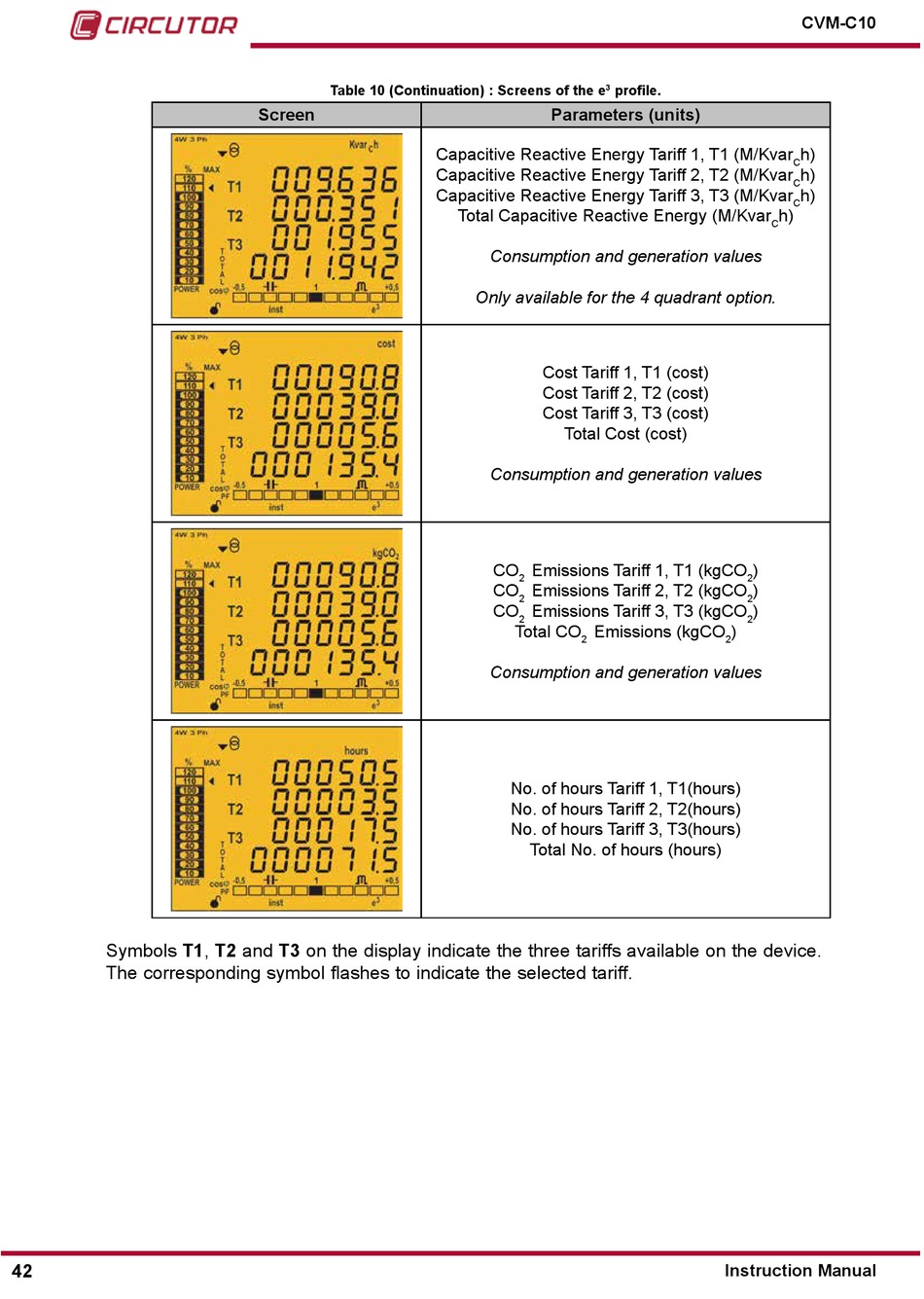

Table 10 (Continuation) : Screens of the e
Screen
3
Parameters (units)
Capacitive Reactive Energy Tariff 1, T1 (M/Kvar
Capacitive Reactive Energy Tariff 2, T2 (M/Kvar
Capacitive Reactive Energy Tariff 3, T3 (M/Kvar
Total Capacitive Reactive Energy (M/Kvar
Consumption and generation values
Only available for the 4 quadrant option.
Cost Tariff 1, T1 (cost)
Cost Tariff 2, T2 (cost)
Cost Tariff 3, T3 (cost)
Total Cost (cost)
Consumption and generation values
CO Emissions Tariff 1, T1 (kgCO
2
CO Emissions Tariff 2, T2 (kgCO
2
CO Emissions Tariff 3, T3 (kgCO
2
Total CO Emissions (kgCO
2
Consumption and generation values
No. of hours Tariff 1, T1(hours)
No. of hours Tariff 2, T2(hours)
No. of hours Tariff 3, T3(hours)
Total No. of hours (hours)
profile�
h)
C
)
2
)
2
)
2
)
2
