CVM-C10

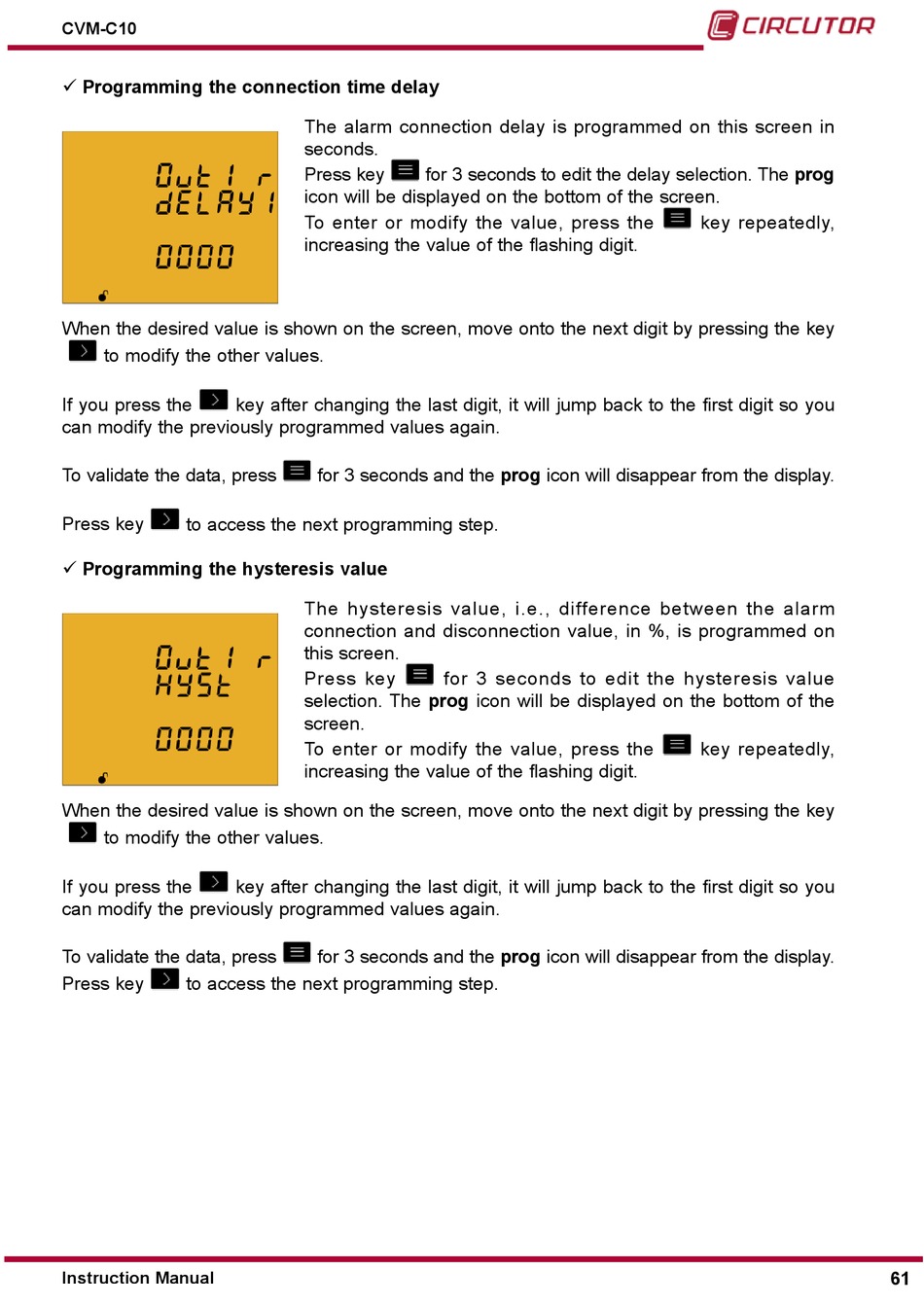

 Programming the connection time delay
When the desired value is shown on the screen, move onto the next digit by pressing the key
to modify the other values.
If you press the key after changing the last digit, it will jump back to the first digit so you
can modify the previously programmed values again.
To validate the data, press
Press key to access the next programming step.
 Programming the hysteresis value
When the desired value is shown on the screen, move onto the next digit by pressing the key
to modify the other values.
If you press the key after changing the last digit, it will jump back to the first digit so you
can modify the previously programmed values again.
To validate the data, press
Press key to access the next programming step.
Instruction Manual
The alarm connection delay is programmed on this screen in
seconds.
for 3 seconds to edit the delay selection. The prog
Press key
icon will be displayed on the bottom of the screen.
To enter or modify the value, press the
increasing the value of the flashing digit.
for 3 seconds and the prog icon will disappear from the display.
The hysteresis value, i.e., difference between the alarm
connection and disconnection value, in %, is programmed on
this screen.
Press key for 3 seconds to edit the hysteresis value
selection. The prog icon will be displayed on the bottom of the
screen.
To enter or modify the value, press the
increasing the value of the flashing digit.
for 3 seconds and the prog icon will disappear from the display.
key repeatedly,
key repeatedly,
