CVM-C10
3�5�11�- MeASURINg TWO-PhASe NeTWORKS WITh A 3-WIRe CONNeCTION, CVM-C10-
fLeX MODeL�
L1
L2
N

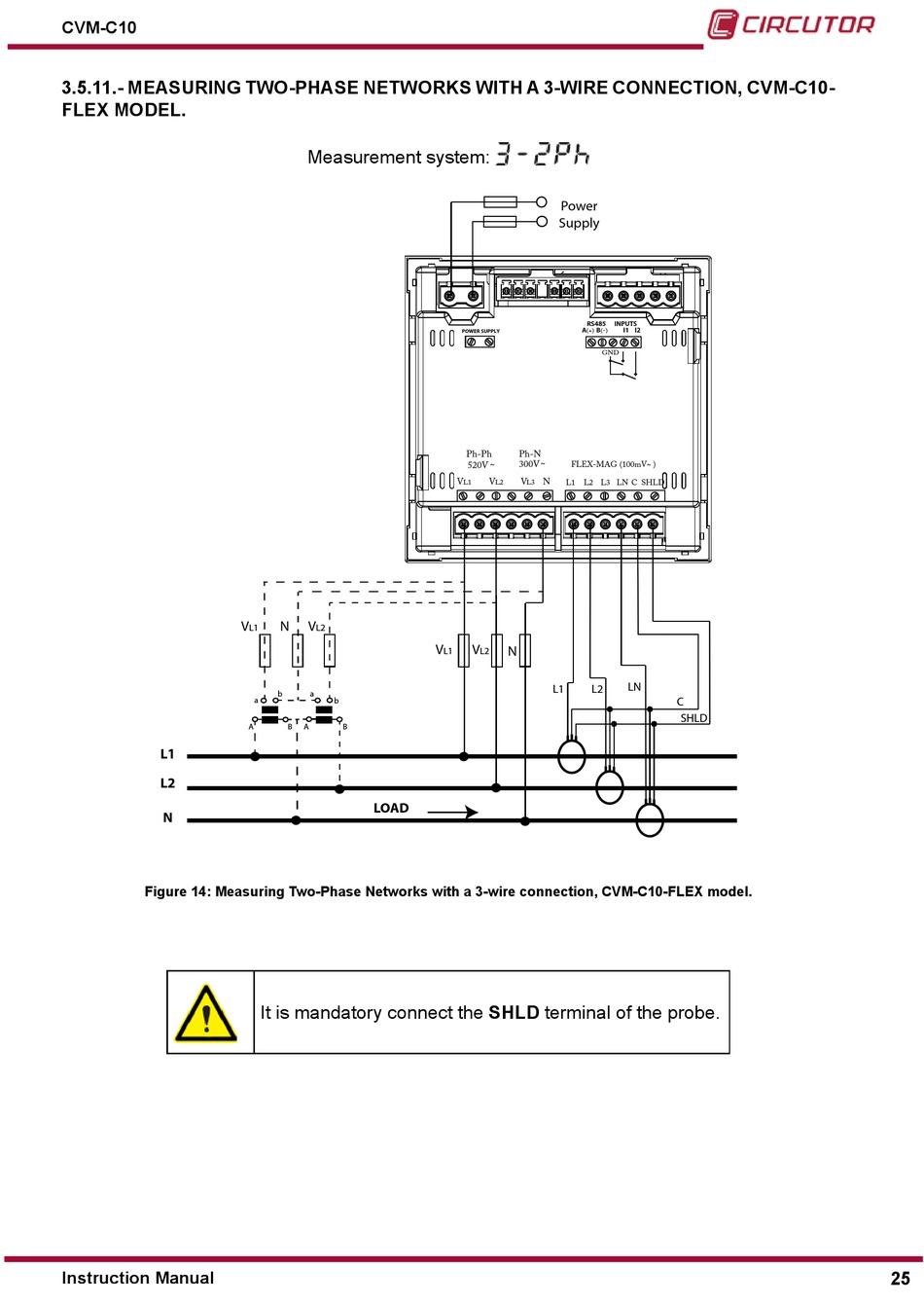

figure 14: Measuring Two-Phase Networks with a 3-wire connection, CVM-C10-fLeX model�
Instruction Manual
Measurement system:
V
N
V
L1
L2
b
a
a
b
A
B
A
B
LOAD
It is mandatory connect the ShLD terminal of the probe.
Power
Supply
RS485
A(+) B(-)
POWER SUPPLY
GND
Ph-Ph
Ph-N
300V ~
520V ~
FLEX-MAG (100mV~ )
V
V
V
N
L1
L2 L3 LN C SHLD
L1
L2
L3
V
V
N
L1
L2
L1
L2
INPUTS
I1 I2
LN
C
SHLD
25
