3.5.- CONNECTION DIAGRAM
3�5�1�- MeASURINg ThRee-PhASe NeTWORKS WITh A 4-WIRe CONNeCTION, CVM-
C10-ITf AND CVM-C10-mV MODeL�
L1
L2
L3
N

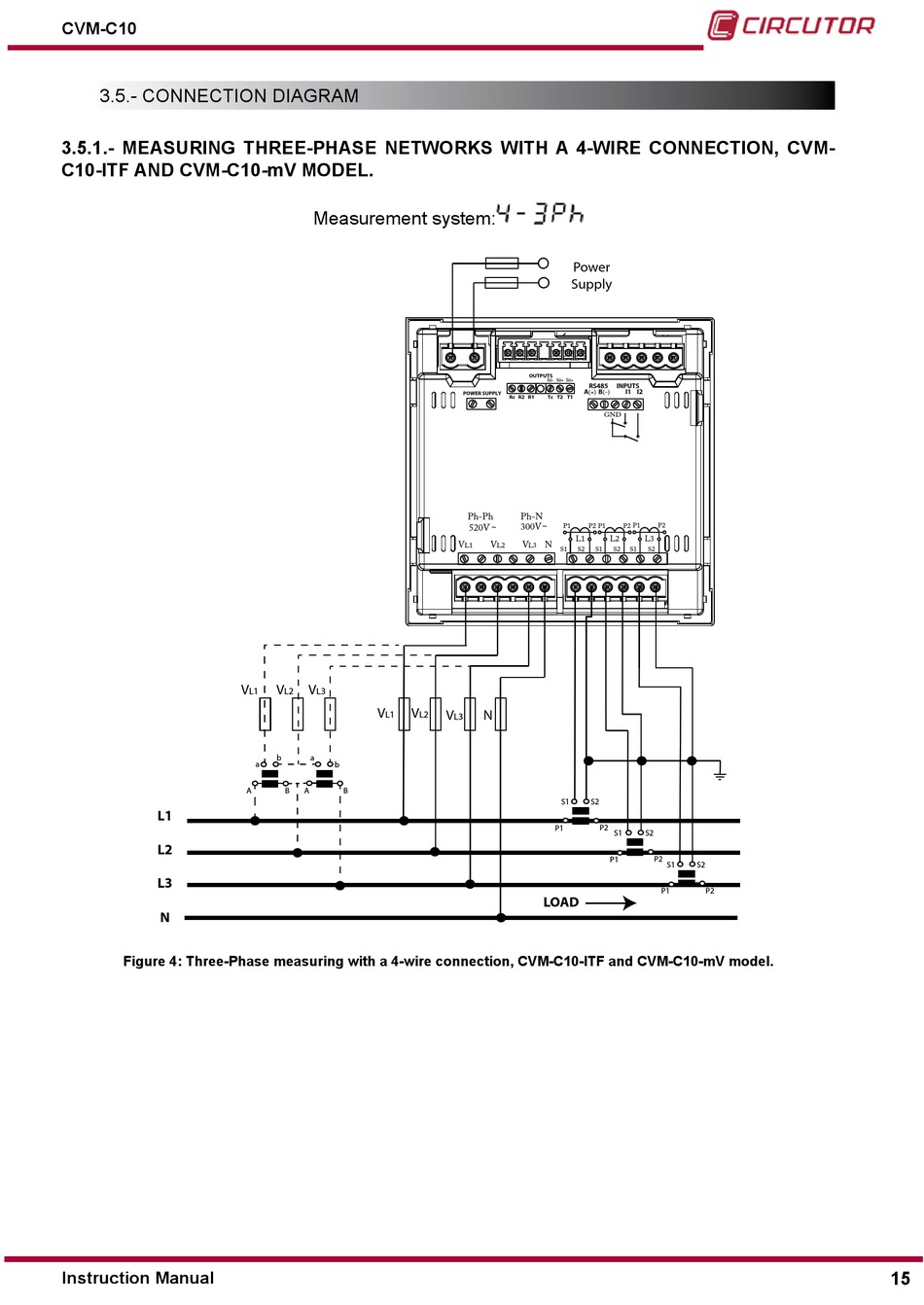

figure 4: Three-Phase measuring with a 4-wire connection, CVM-C10-ITf and CVM-C10-mV model�
