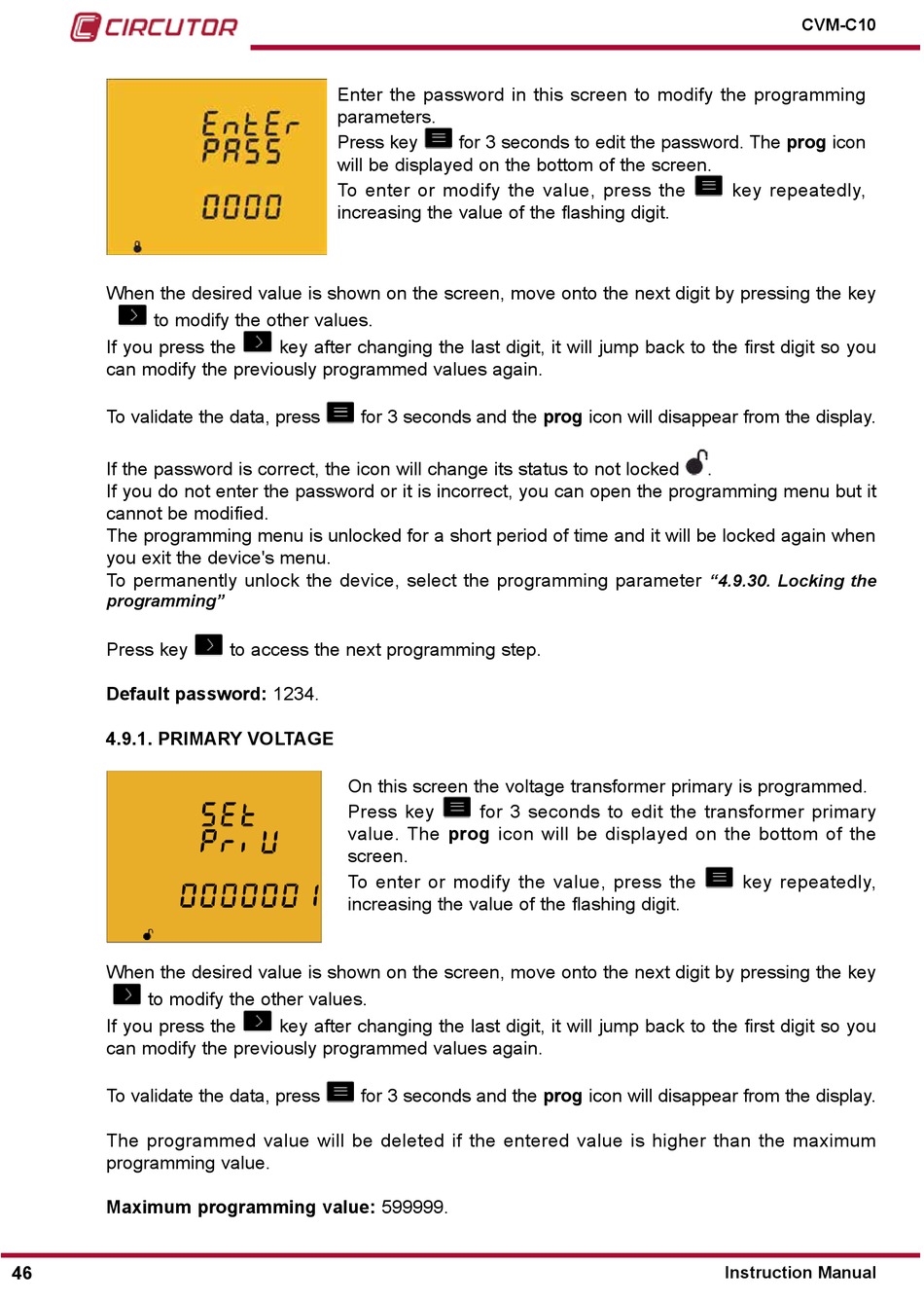

4�9�1� Primary Voltage - Circutor CVM-C10 Instruction Manual

When the desired value is shown on the screen, move onto the next digit by pressing the key
to modify the other values.
If you press the
can modify the previously programmed values again.
To validate the data, press
If the password is correct, the icon will change its status to not locked
If you do not enter the password or it is incorrect, you can open the programming menu but it
cannot be modified.
The programming menu is unlocked for a short period of time and it will be locked again when
you exit the device's menu.
To permanently unlock the device, select the programming parameter
programming"
Press key
Default password: 1234.
4�9�1� PRIMARy VOLTAge
When the desired value is shown on the screen, move onto the next digit by pressing the key
to modify the other values.
If you press the
can modify the previously programmed values again.
To validate the data, press
The programmed value will be deleted if the entered value is higher than the maximum
programming value.
Maximum programming value: 599999.
46
Enter the password in this screen to modify the programming
parameters.
Press key
will be displayed on the bottom of the screen.
To enter or modify the value, press the
increasing the value of the flashing digit.
key after changing the last digit, it will jump back to the first digit so you
for 3 seconds and the prog icon will disappear from the display.
to access the next programming step.
On this screen the voltage transformer primary is programmed.
Press key
value. The prog icon will be displayed on the bottom of the
screen.
To enter or modify the value, press the
increasing the value of the flashing digit.
key after changing the last digit, it will jump back to the first digit so you
for 3 seconds and the prog icon will disappear from the display.
for 3 seconds to edit the password. The prog icon
for 3 seconds to edit the transformer primary
CVM-C10
key repeatedly,
.
"4.9.30. Locking the
key repeatedly,
