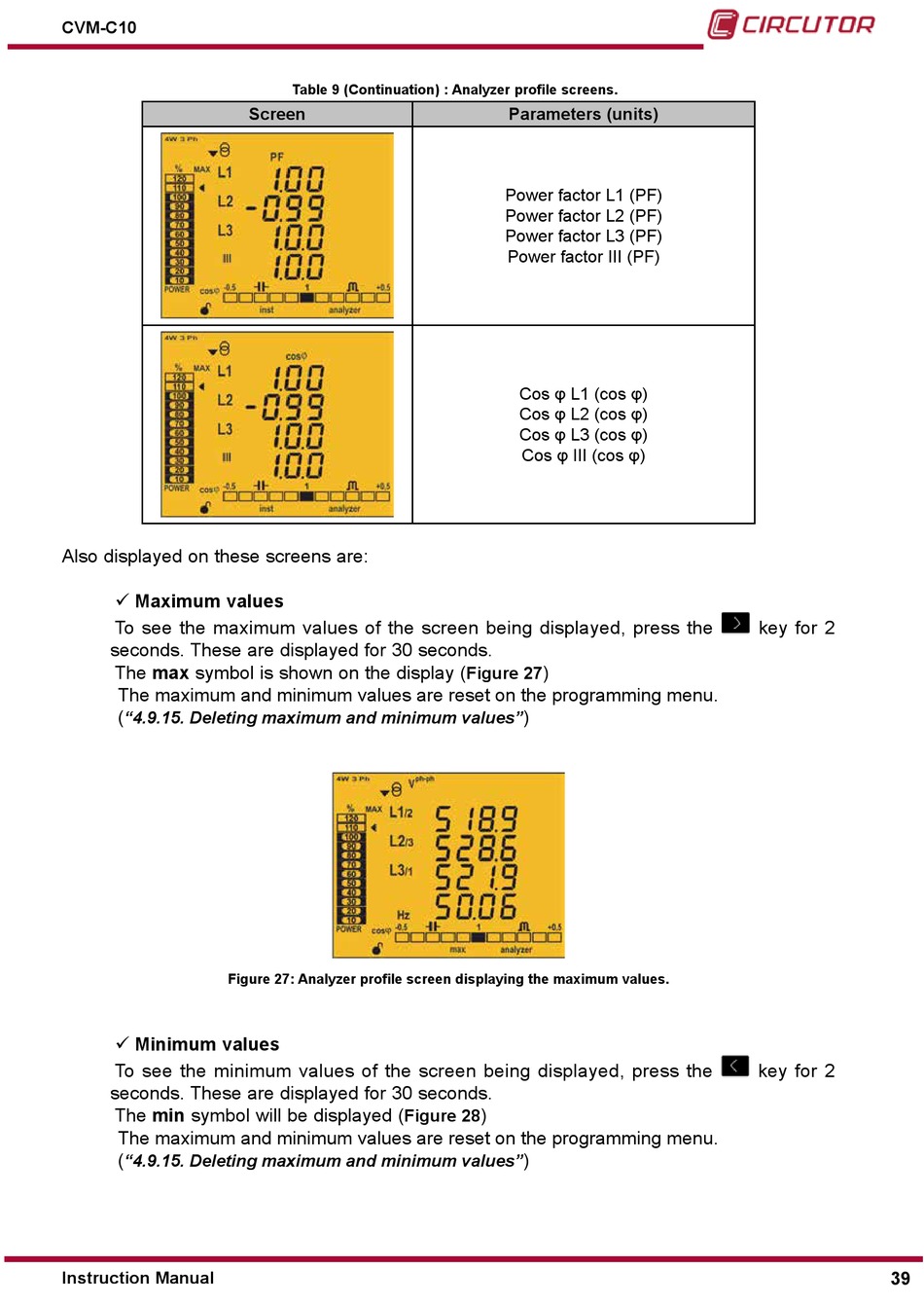

Circutor CVM-C10 Instruction Manual page 39

CVM-C10
Also displayed on these screens are:
 Maximum values
To see the maximum values of the screen being displayed, press the
seconds. These are displayed for 30 seconds.
The max symbol is shown on the display (
The maximum and minimum values are reset on the programming menu.
(
"4.9.15. Deleting maximum and minimum values"
figure 27: Analyzer profile screen displaying the maximum values.
 Minimum values
To see the minimum values of the screen being displayed, press the
seconds. These are displayed for 30 seconds.
The min symbol will be displayed (
The maximum and minimum values are reset on the programming menu.
(
"4.9.15. Deleting maximum and minimum values"
Instruction Manual
Table 9 (Continuation) : Analyzer profile screens�
Screen
figure 28
Parameters (units)
Power factor L1 (PF)
Power factor L2 (PF)
Power factor L3 (PF)
Power factor III (PF)
Cos φ L1 (cos φ)
Cos φ L2 (cos φ)
Cos φ L3 (cos φ)
Cos φ III (cos φ)
)
figure 27
)
)
)
key for 2
key for 2
