3�5�6�- MeASURINg ThRee-PhASe NeTWORKS WITh A 3-WIRe CONNeCTION,
CVM-C10-MC MODeL�
20
Measurement system:
V V V
L1 L2 L3
b a
a
A B A
L1
L2
L3

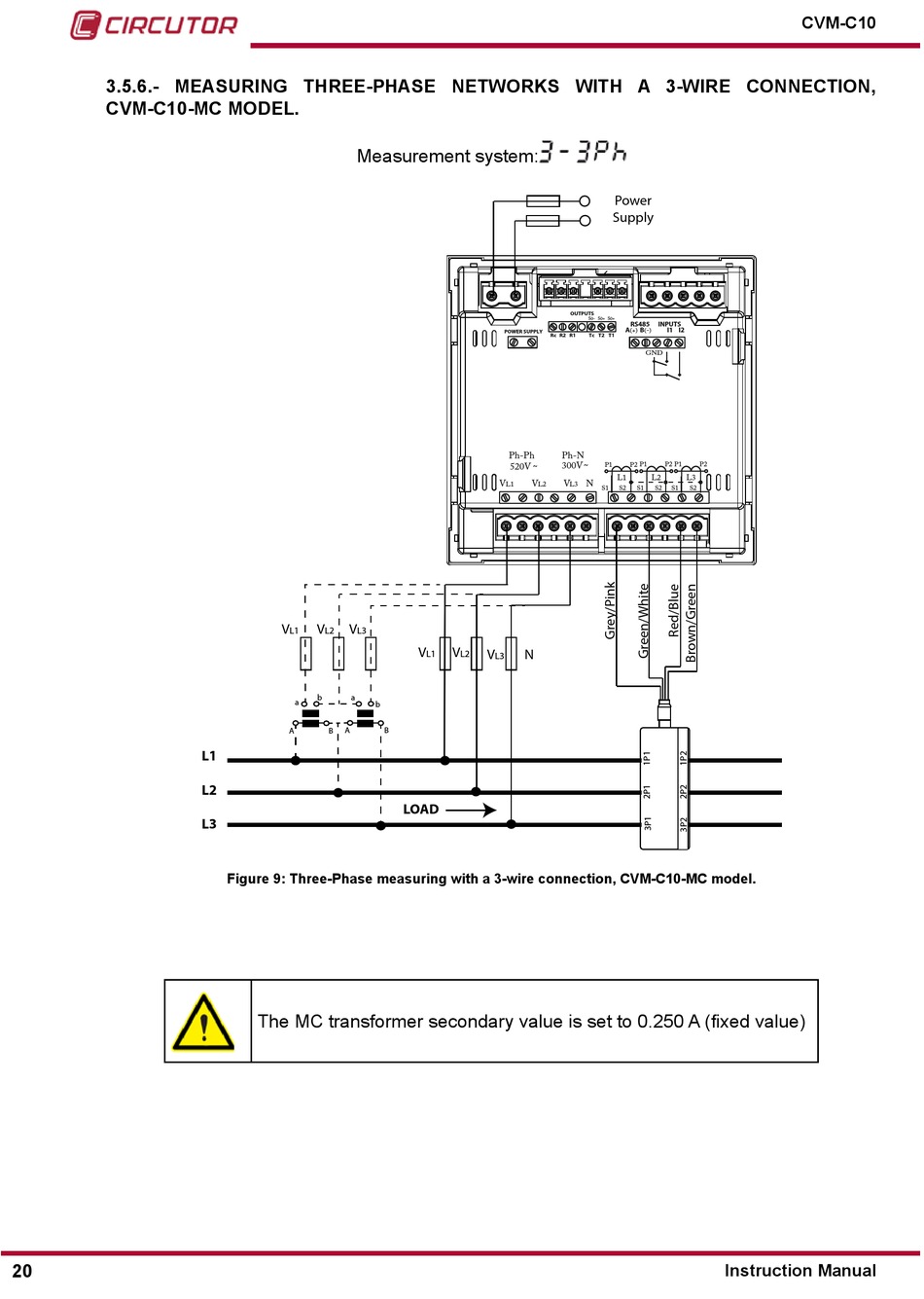

figure 9: Three-Phase measuring with a 3-wire connection, CVM-C10-MC model�
The MC transformer secondary value is set to 0.250 A (fixed value)
