3.4.- UNIT TERMINALS
3�4�1�- LIST Of TeRMINALS, CVM-C10-ITf, CVM-C10-MC AND CVM-C10-mV MODeLS
1 : A1 Auxiliary power supply.
2: A2 Auxiliary power supply.
3: Rc, Common relay output
4: R2, Relay output 2
5: R1, Relay output 1
6: CT, Common digital output.
7: T2, Digital output 2
8: T1, Digital output 1
9: A(+), RS485
10: B(-), RS485
11: gND, for RS485 and digital inputs
12: I1, digital input 1 / tariff selection
12
Table 5:List of terminals of the CVM-C10-ITf, CVM-C10-MC and CVM-C10-mV�
2 3 4 5
1
POWER SUPPLY
Ph-Ph
520V ~
V V
L1 L2
14 15 16

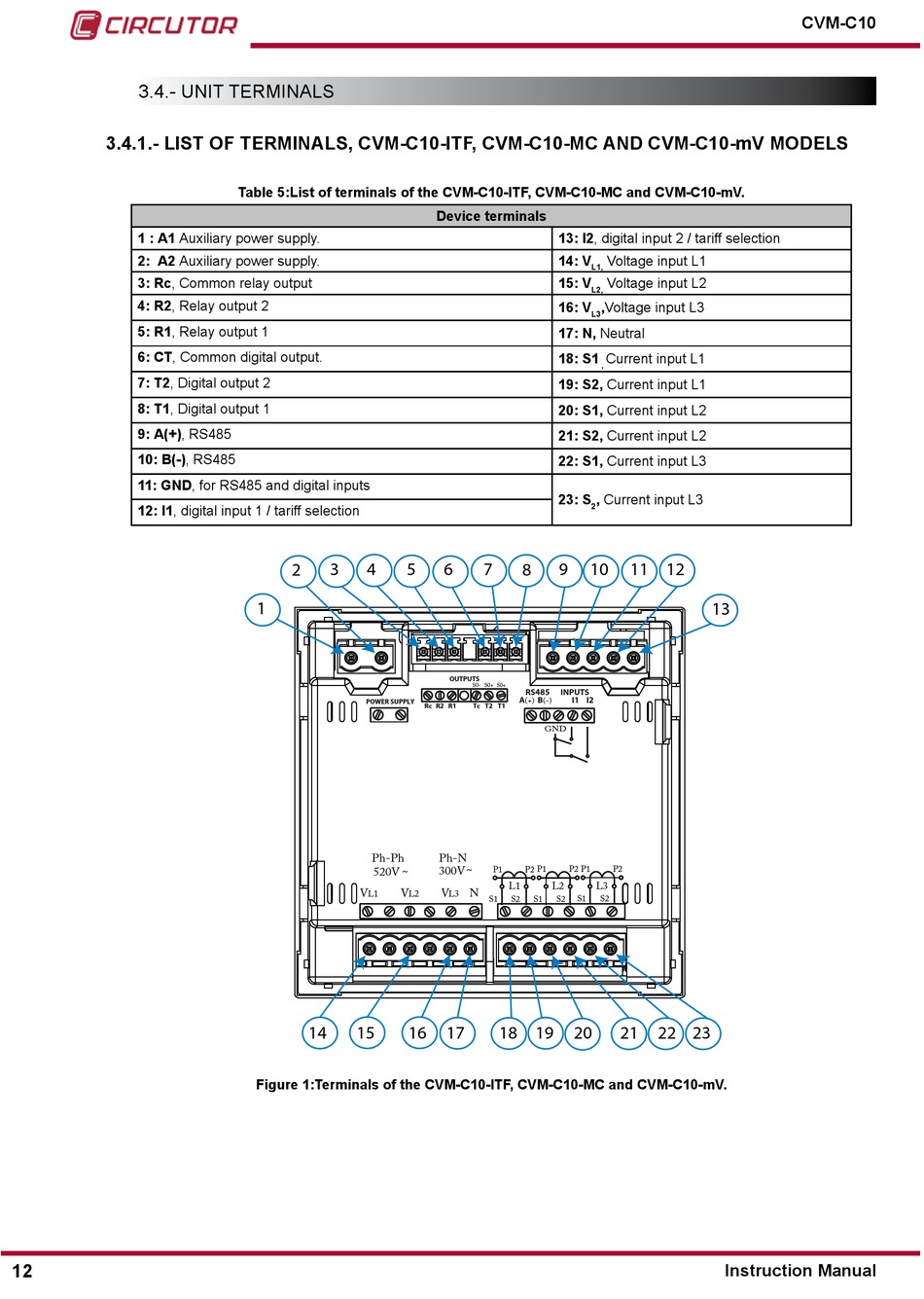

figure 1:Terminals of the CVM-C10-ITf, CVM-C10-MC and CVM-C10-mV�
Device terminals
13: I2, digital input 2 / tariff selection
14: V
L1,
15: V
L2,
16: V
L3
17: N, Neutral
18: S1
19: S2, Current input L1
20: S1, Current input L2
21: S2, Current input L2
22: S1, Current input L3
23: S , Current input L3
2
6 7 9 10
8
OUTPUTS
S0- S0+ S0+
RS485 INPUTS
A(+) B(-) I1 I2
Rc R2 R1 Tc T2 T1
GND
Ph-N
300V ~
P1 P2 P1
P1 P2
L1 L2 L3
V N
L3
S1 S2 S1 S2 S1
17 18 19 20
Voltage input L1
Voltage input L2
,Voltage input L3
Current input L1
,
11 12
13
P2
S2
21 22 23
