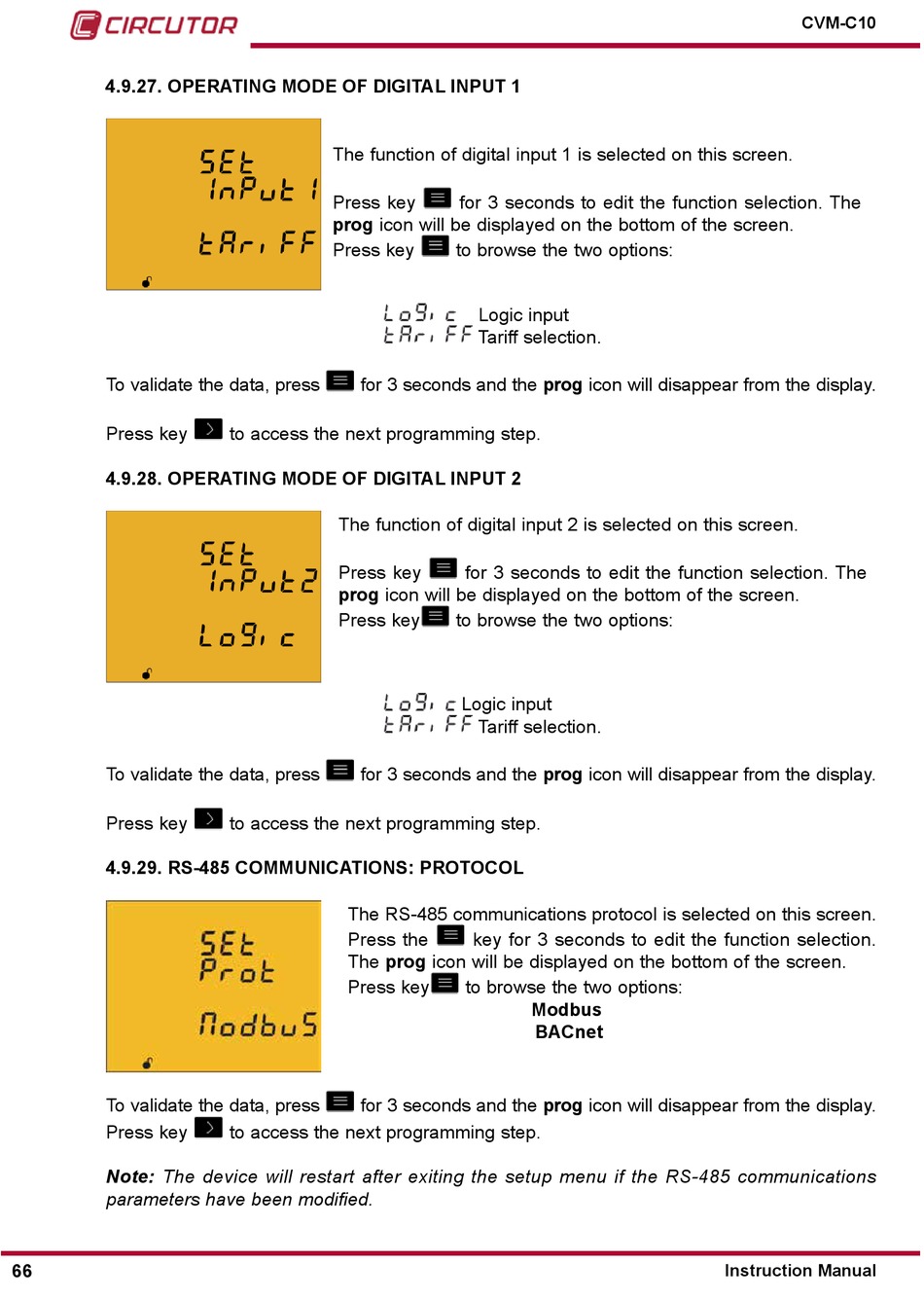

4�9�27� OPeRATINg MODe Of DIgITAL INPUT 1
To validate the data, press
Press key
4�9�28� OPeRATINg MODe Of DIgITAL INPUT 2
To validate the data, press
Press key
4�9�29� RS-485 COMMUNICATIONS: PROTOCOL
To validate the data, press
Press key
Note: The device will restart after exiting the setup menu if the RS-485 communications
parameters have been modified.
66
The function of digital input 1 is selected on this screen.
Press key
prog icon will be displayed on the bottom of the screen.
Press key
for 3 seconds and the prog icon will disappear from the display.
to access the next programming step.
The function of digital input 2 is selected on this screen.
Press key
prog icon will be displayed on the bottom of the screen.
Press key
for 3 seconds and the prog icon will disappear from the display.
to access the next programming step.
The RS-485 communications protocol is selected on this screen.
Press the
The prog icon will be displayed on the bottom of the screen.
Press key
for 3 seconds and the prog icon will disappear from the display.
to access the next programming step.
for 3 seconds to edit the function selection. The
to browse the two options:
Logic input
Tariff selection.
for 3 seconds to edit the function selection. The
to browse the two options:
Logic input
Tariff selection.
key for 3 seconds to edit the function selection.
to browse the two options:
Modbus
BACnet
CVM-C10
Instruction Manual
