CVM-C10
To validate the data, press
Press key
to access the next programming step

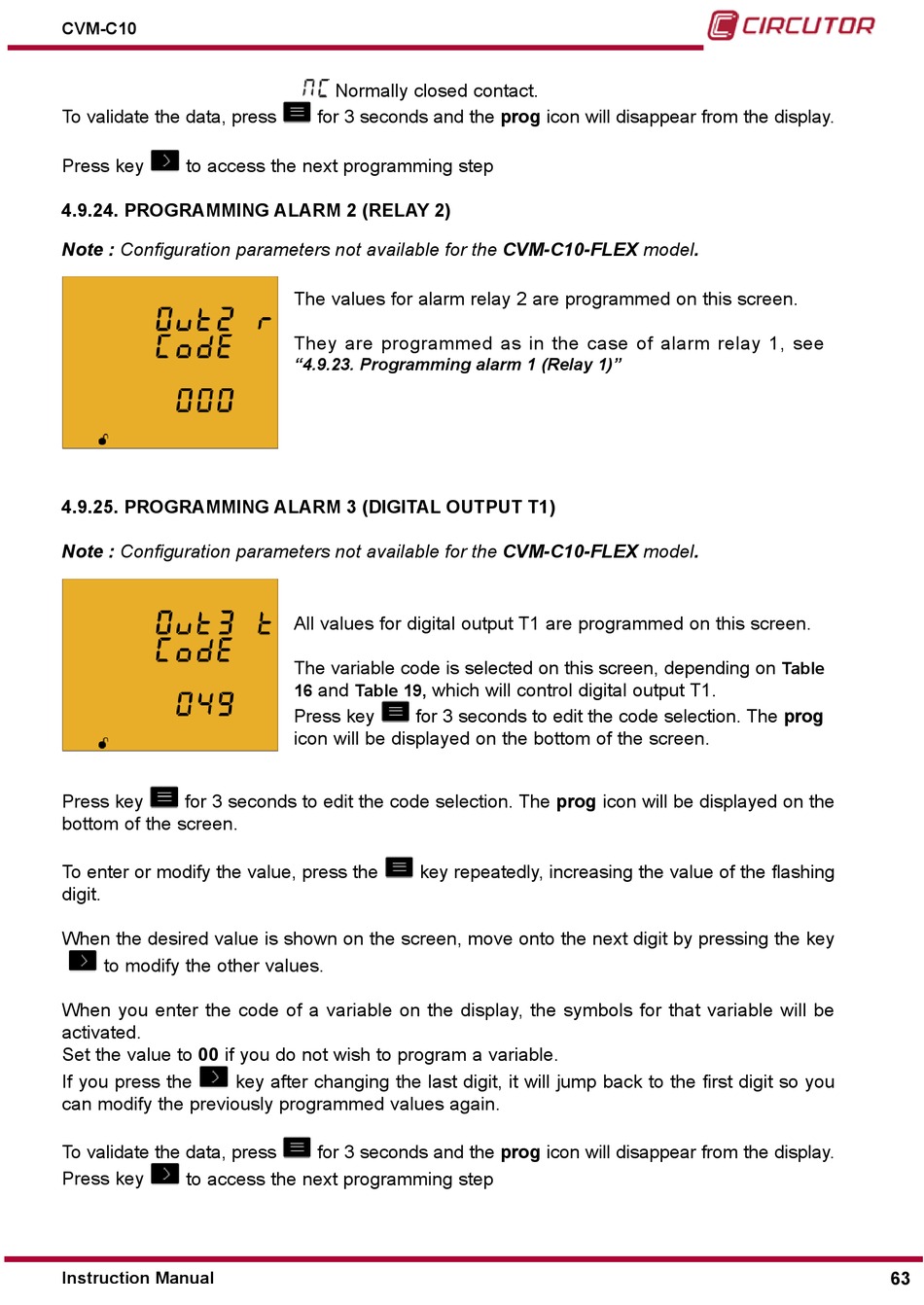

4�9�24� PROgRAMMINg ALARM 2 (ReLAy 2)
Note : Configuration parameters not available for the CVM-C10-FLEX model.
4�9�25� PROgRAMMINg ALARM 3 (DIgITAL OUTPUT T1)
Note : Configuration parameters not available for the CVM-C10-FLEX model.
Press key
for 3 seconds to edit the code selection. The prog icon will be displayed on the
bottom of the screen.
To enter or modify the value, press the
digit.
When the desired value is shown on the screen, move onto the next digit by pressing the key
to modify the other values.
When you enter the code of a variable on the display, the symbols for that variable will be
activated.
Set the value to 00 if you do not wish to program a variable.
If you press the
key after changing the last digit, it will jump back to the first digit so you
can modify the previously programmed values again.
To validate the data, press
Press key
to access the next programming step
Instruction Manual
Normally closed contact.
for 3 seconds and the prog icon will disappear from the display.
The values for alarm relay 2 are programmed on this screen.
They are programmed as in the case of alarm relay 1, see
"4.9.23. Programming alarm 1 (Relay 1)"
All values for digital output T1 are programmed on this screen.
The variable code is selected on this screen, depending on
and
which will control digital output T1.
16
Table 19,
Press key
for 3 seconds to edit the code selection. The prog
icon will be displayed on the bottom of the screen.
key repeatedly, increasing the value of the flashing
for 3 seconds and the prog icon will disappear from the display.
Table
63
