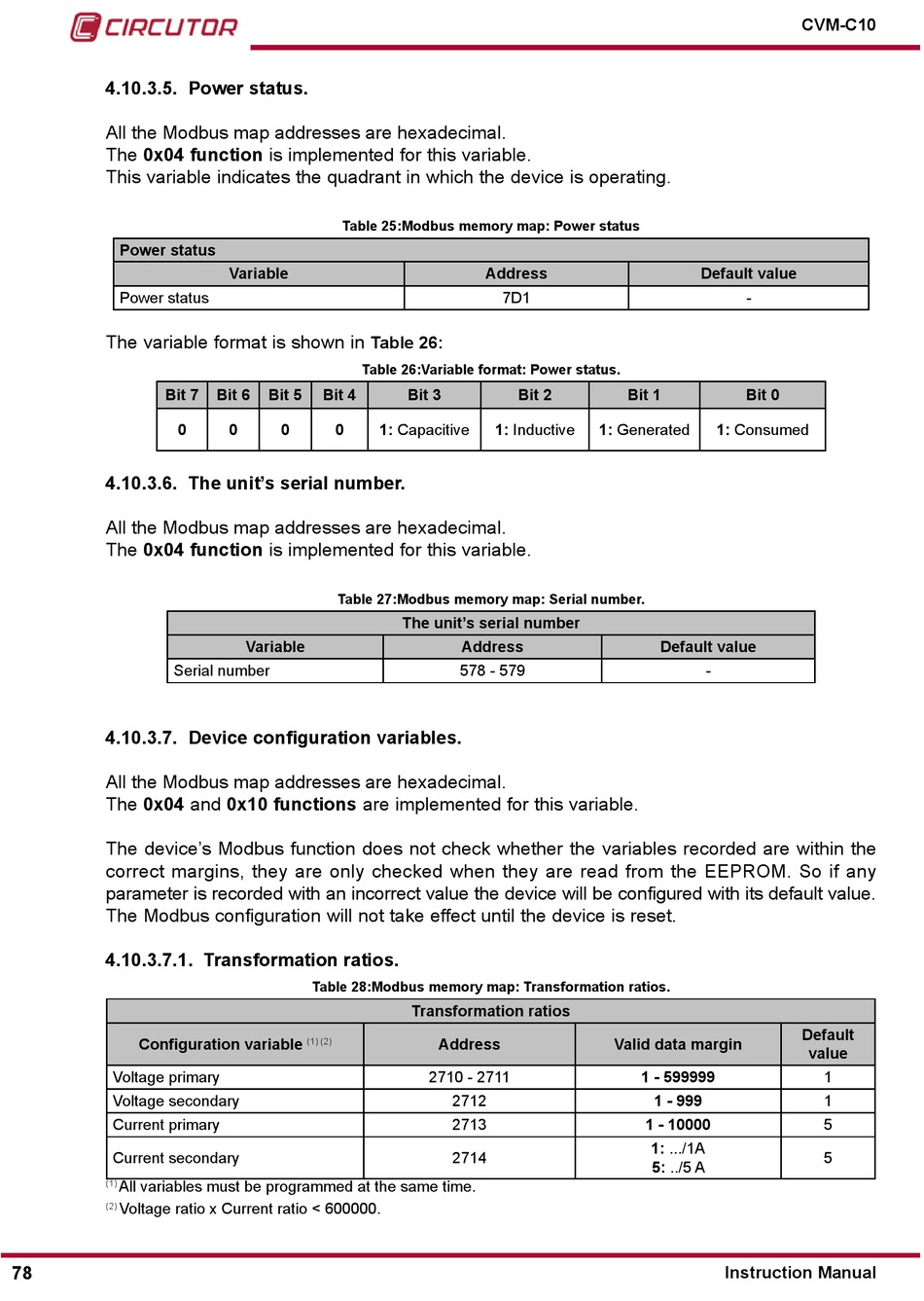

Circutor CVM-C10 Instruction Manual page 78

4�10�3�5� Power status�
All the Modbus map addresses are hexadecimal.
The 0x04 function is implemented for this variable.
This variable indicates the quadrant in which the device is operating.
Power status
Power status
The variable format is shown in
Bit 7
0
4�10�3�6� The unit's serial number�
All the Modbus map addresses are hexadecimal.
The 0x04 function is implemented for this variable.
Serial number
4�10�3�7� Device configuration variables.
All the Modbus map addresses are hexadecimal.
The 0x04 and 0x10 functions are implemented for this variable.
The device's Modbus function does not check whether the variables recorded are within the
correct margins, they are only checked when they are read from the EEPROM. So if any
parameter is recorded with an incorrect value the device will be configured with its default value.
The Modbus configuration will not take effect until the device is reset.
4�10�3�7�1� Transformation ratios�
Configuration variable
Voltage primary
Voltage secondary
Current primary
Current secondary
All variables must be programmed at the same time.
(1)
Voltage ratio x Current ratio < 600000.
(2)
78
Table 25:Modbus memory map: Power status
Variable
Table 26:
Table 26:Variable format: Power status�
Bit 6 Bit 5 Bit 4
0 0 0 1: Capacitive
Table 27:Modbus memory map: Serial number�
Variable
Table 28:Modbus memory map: Transformation ratios�
(1) (2)
Address
7D1
Bit 3 Bit 2
1: Inductive
The unit's serial number
Address
578 - 579
Transformation ratios
Address
2710 - 2711
2712
2713
2714
Default value
-
Bit 1 Bit 0
1: Generated 1: Consumed
Default value
-
Valid data margin
1 - 599999
1 - 999
1 - 10000
1: .../1A
5: ../5 A
Instruction Manual
CVM-C10
Default
value
1
1
5
5
