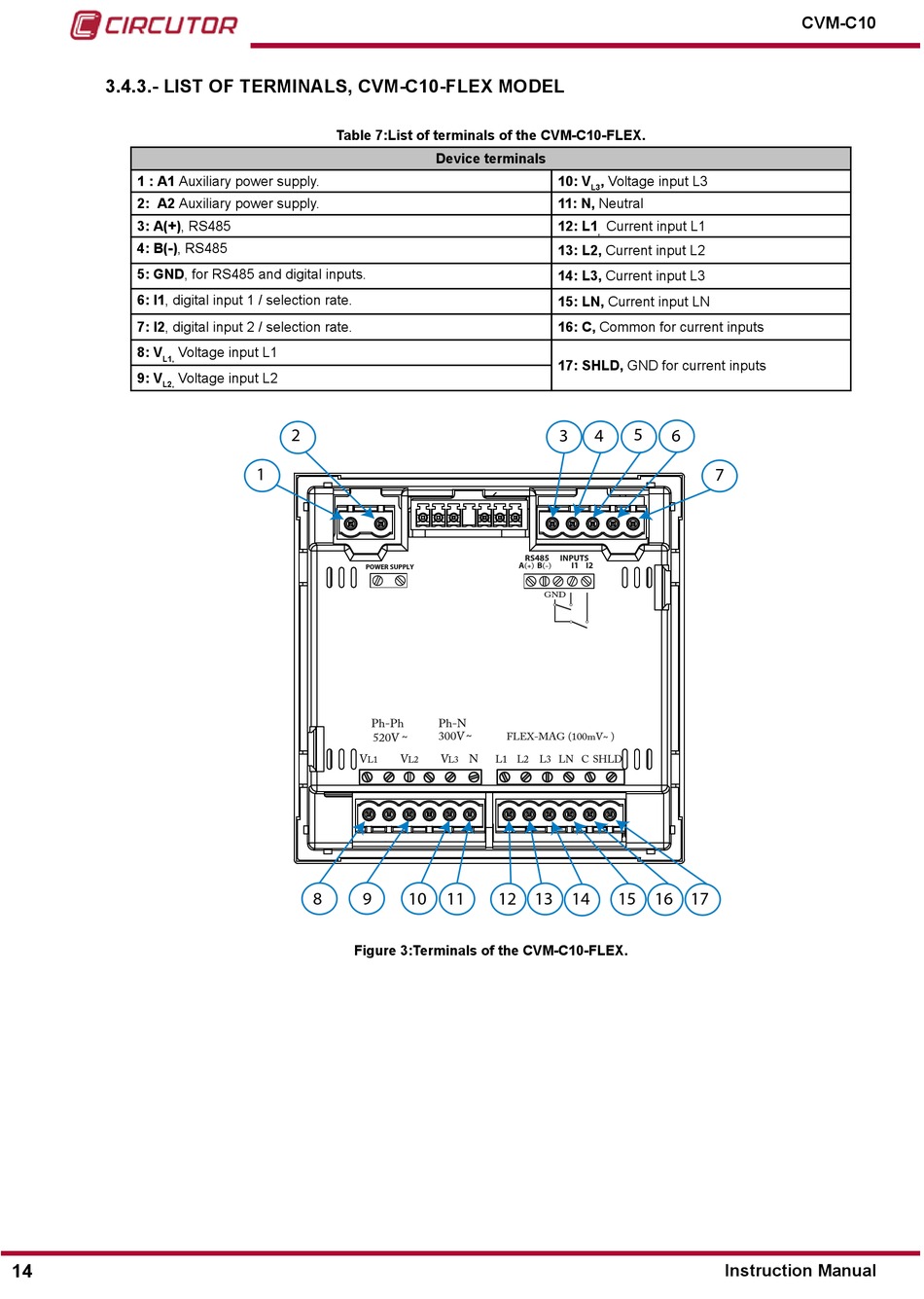

3�4�3�- LIST Of TeRMINALS, CVM-C10-fLeX MODeL
1 : A1 Auxiliary power supply.
2: A2 Auxiliary power supply.
3: A(+), RS485
4: B(-), RS485
5: gND, for RS485 and digital inputs.
6: I1, digital input 1 / selection rate.
7: I2, digital input 2 / selection rate.
8: V Voltage input L1
L1,
9: V
Voltage input L2
L2,
14
Table 7:List of terminals of the CVM-C10-fLeX�
2
1
POWER SUPPLY
Ph-Ph
520V ~
V V
L1 L2
10
8 9
figure 3:Terminals of the CVM-C10-fLeX�
Device terminals
10: V , Voltage input L3
L3
11: N, Neutral
12: L1
Current input L1
,
13: L2, Current input L2
14: L3, Current input L3
15: LN, Current input LN
16: C, Common for current inputs
17: ShLD, GND for current inputs
3 4
RS485 INPUTS
A(+) B(-) I1 I2
GND
Ph-N
300V ~
FLEX-MAG (100mV~ )
V N
L1 L2 L3 LN C SHLD
L3
11 12 13 14
5
6
7
15 16 17
