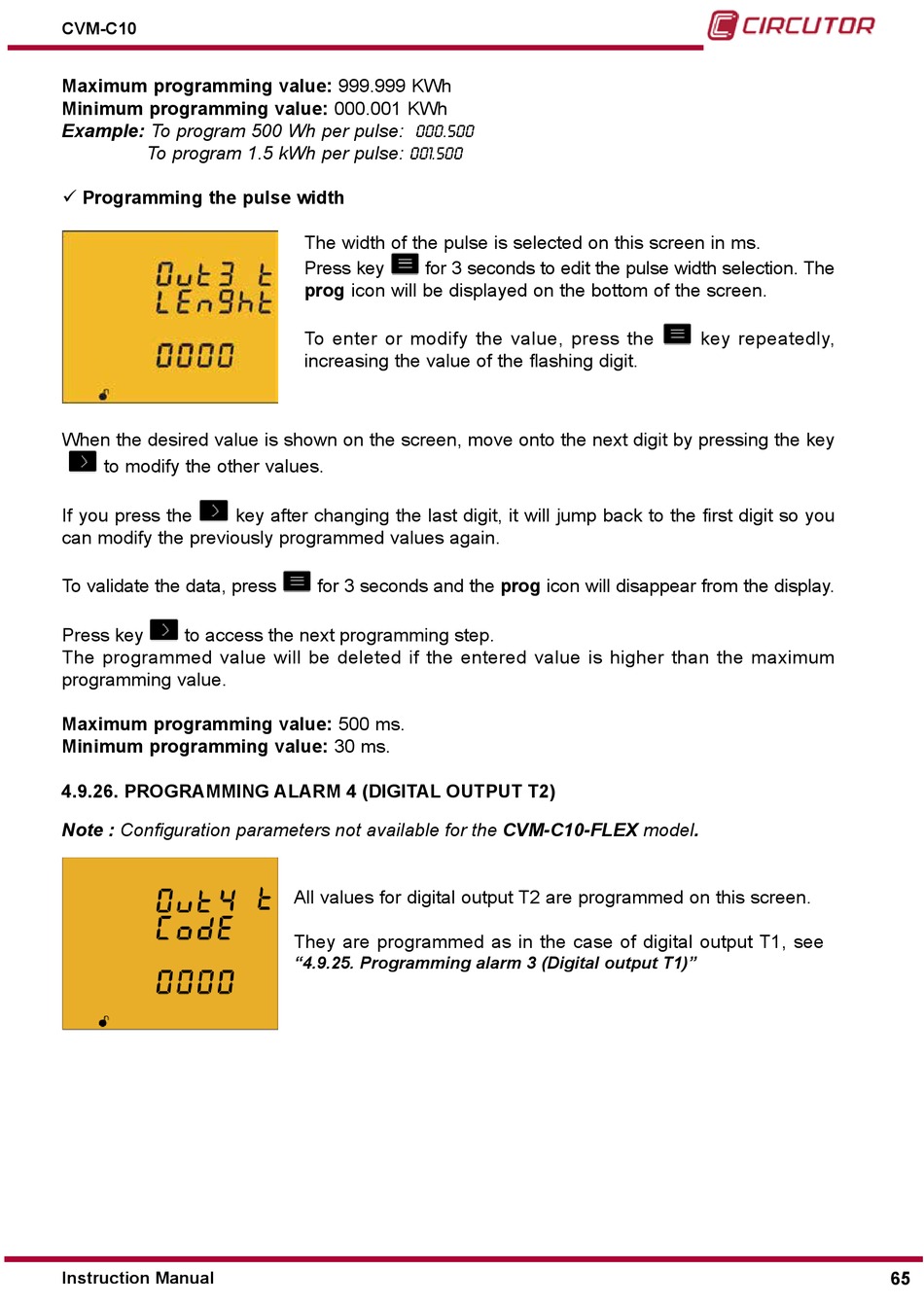

4�9�26� Programming Alarm 4 (Digital Output T2) - Circutor CVM-C10 Instruction Manual

CVM-C10
Maximum programming value: 999.999 KWh
Minimum programming value: 000.001 KWh
Example: To program 500 Wh per pulse: 000.500
To program 1.5 kWh per pulse: 001.500
 Programming the pulse width
When the desired value is shown on the screen, move onto the next digit by pressing the key
to modify the other values.
If you press the key after changing the last digit, it will jump back to the first digit so you
can modify the previously programmed values again.
To validate the data, press
Press key to access the next programming step.
The programmed value will be deleted if the entered value is higher than the maximum
programming value.
Maximum programming value: 500 ms.
Minimum programming value: 30 ms.
4�9�26� PROgRAMMINg ALARM 4 (DIgITAL OUTPUT T2)
Note : Configuration parameters not available for the CVM-C10-FLEX model.
Instruction Manual
The width of the pulse is selected on this screen in ms.
Press key for 3 seconds to edit the pulse width selection. The
prog icon will be displayed on the bottom of the screen.
To enter or modify the value, press the
increasing the value of the flashing digit.
for 3 seconds and the prog icon will disappear from the display.
All values for digital output T2 are programmed on this screen.
They are programmed as in the case of digital output T1, see
"4.9.25. Programming alarm 3 (Digital output T1)"
key repeatedly,
65
