Serial RS-232C Connector

B-8 JNSGyro-4T Operator's Manual
For ports 1A, 2A, 3A, 4A, 2C, 3C, and 4C. The RS232 connectors
(Figure B-2) are sealed receptacle, 7 pin, ODU p/n G80F1C-T07QC00-
0000.

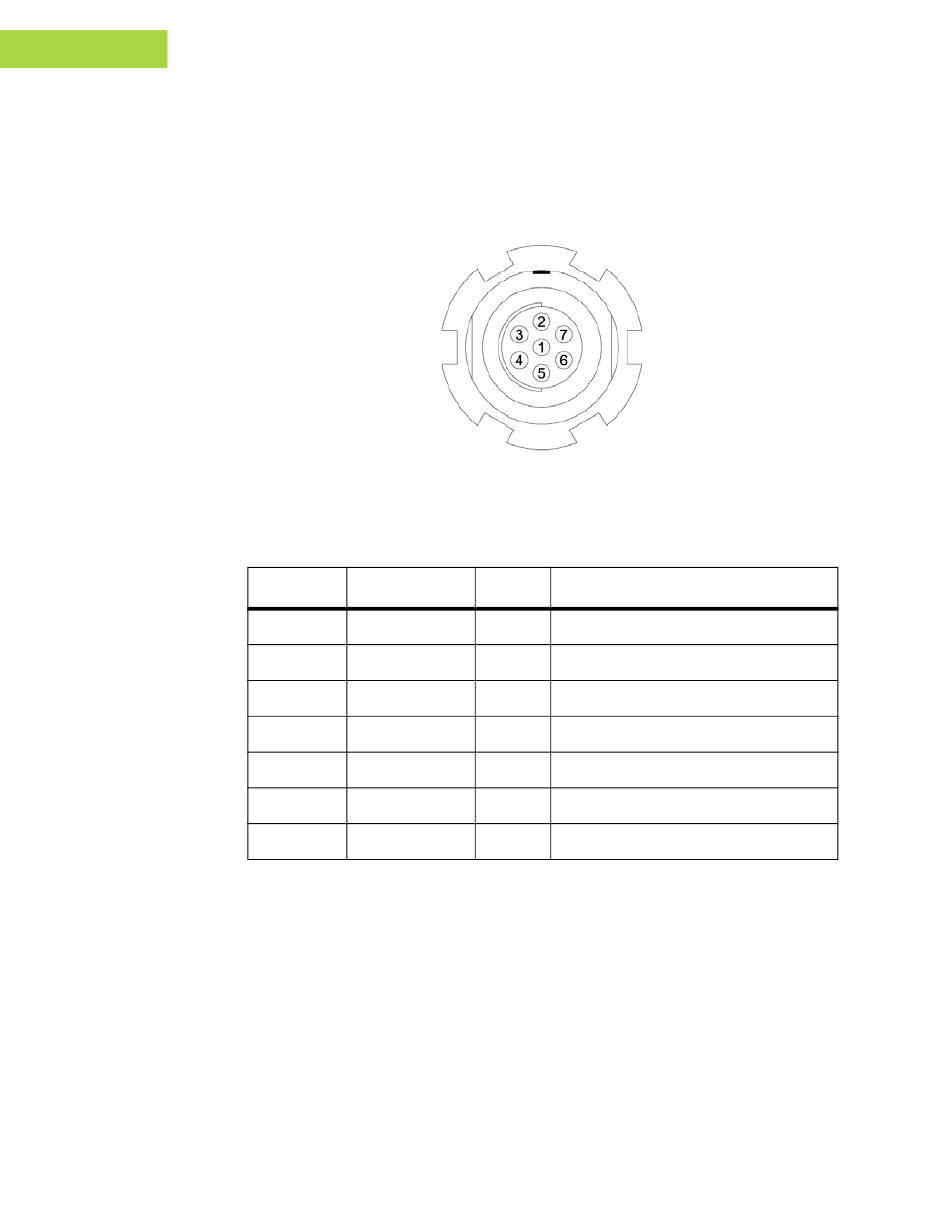

Figure B-2. RS-232C Connector
Table B-4 gives the RS-232C cable connector specifications.
Number Signal Name
1 Power_OUT
2 GND
3 CTS
4 RTS
5 RXD
6 TXD
7
Table B-4.
Dir
P Power Output (supplied voltage)
- Signal ground
I Clear to send
O Request to send
I Receive data
O Transmit data
Not used
