Opening and Closing the Media Slot

The opening in the take-up cassette is called the media slot. A lever at
the end of the cassette opens and closes this slot.
• To open the slot, press the lever in and turn it counter-clockwise.
• Open the slot before you put it into a processor. This allows the
media to move freely out of the cassette.
• To close the slot, press the lever in. This releases a spring that
closes the slot.
• Close the slot when you put the cassette into the imagesetter.

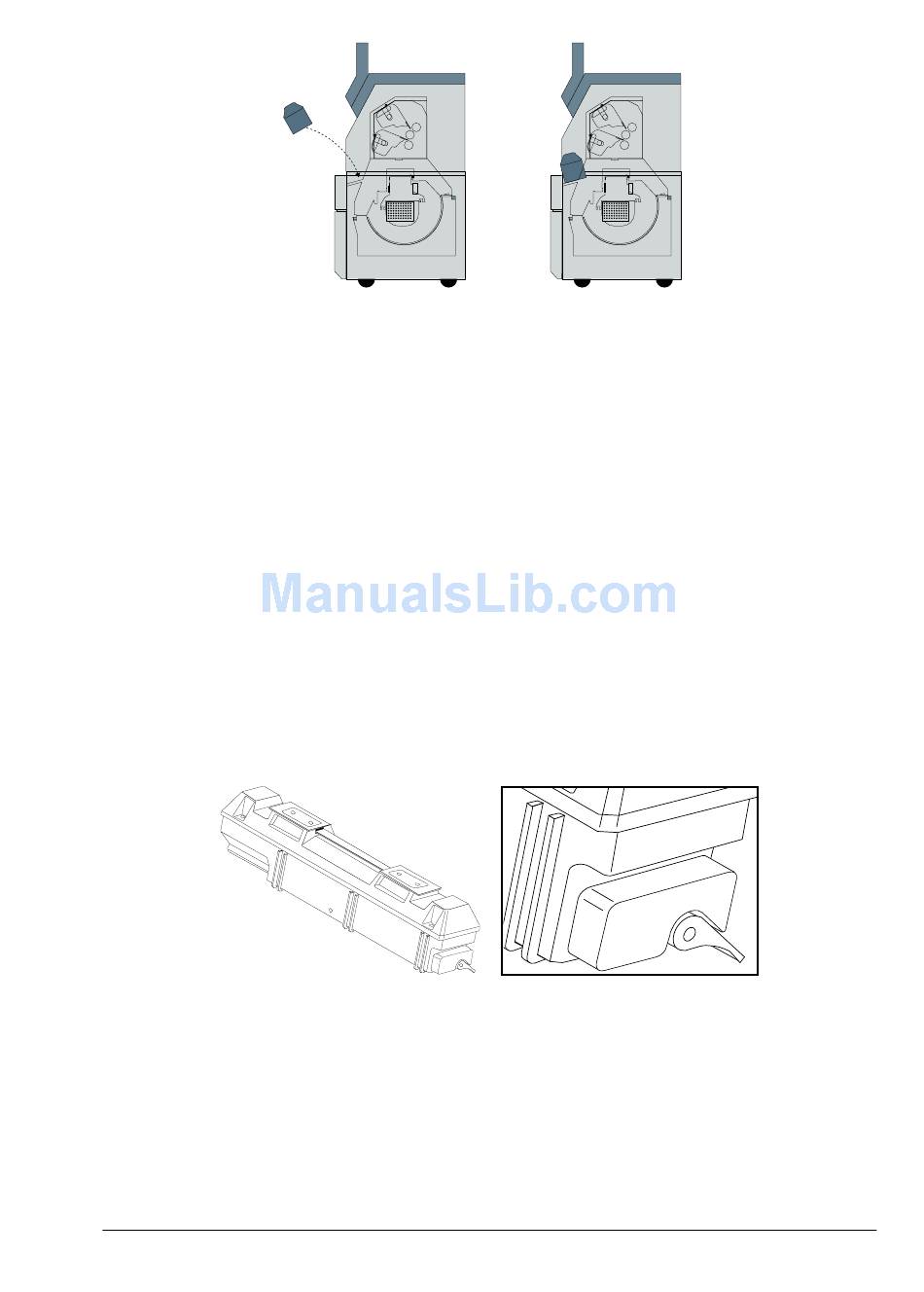

Figure 4.16. The lever at the end of the take-up cassette opens and closes the
Figure 4.15. Inserting the take-up cassette.
media slot in the bottom of the cassette.
Media Operations • 4–13
