Step 8: Replace the light shield that covers the rear of the media
supply area.
Step 9: Replace the light shield that covers the front of the media
supply area.
Note: If the shield does not close all the way, do
not force it into position. Instead, slide it the the
left or right on the metal pins until you get it into
the correct position.
Step 10: Start the imagesetter and resume operations.

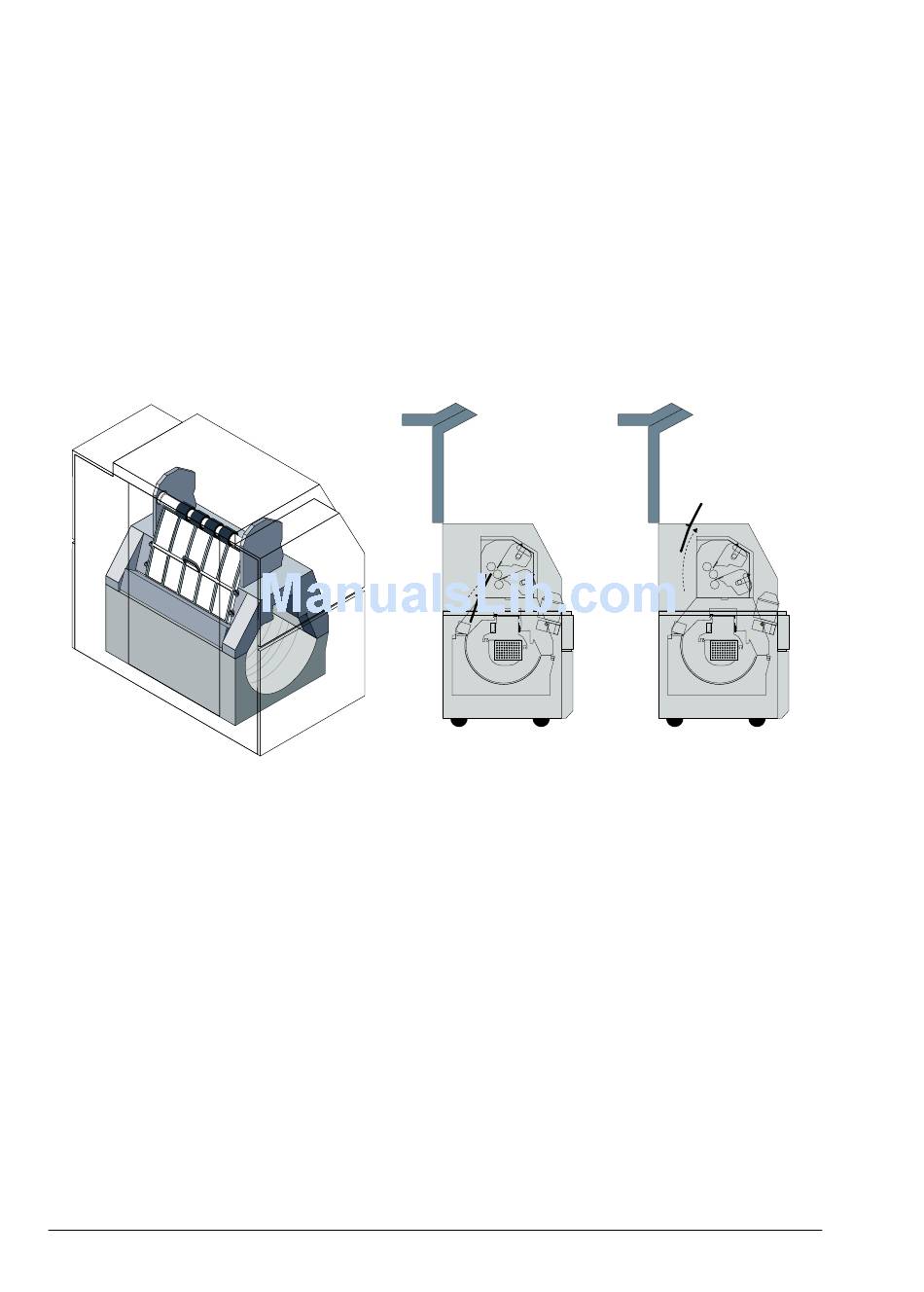

Figure 7.5. Left, view of the imagesetter showing location of the light shields and
7–10 • SelectSet Avantra User Guide
latches. Right, removing the light shield.
