Loading Media into Supply Cassettes

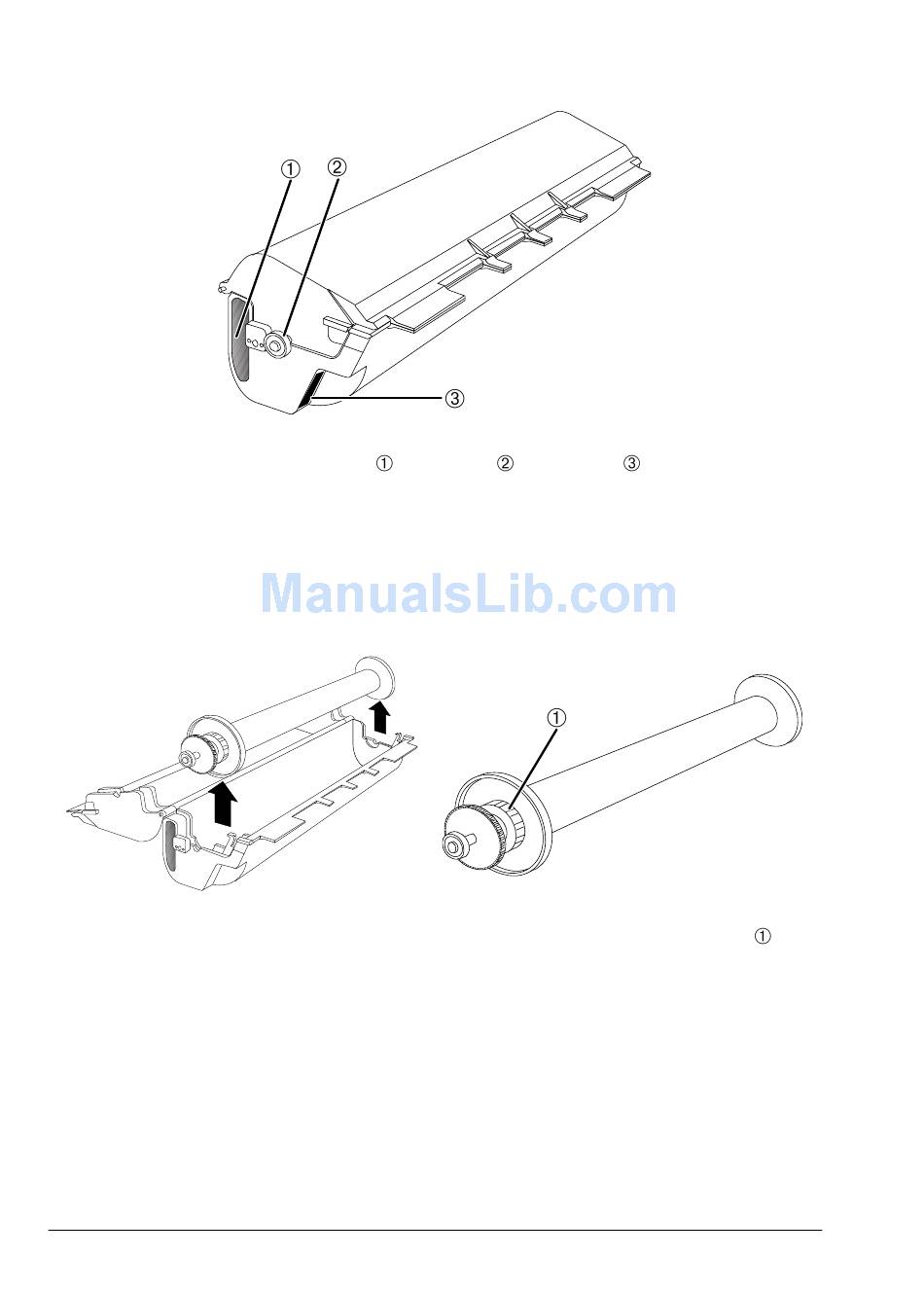

Figure 4.1. The supply cassette.
Step 1. Remove the media roll from the cassette.
Place the supply cassette on a level surface.
Open the cassette and remove the empty media roll.
Figure 4.2. Remove the empty media roll. Loosen the outer locking knob
Remove the endcaps from both ends of the roll. Loosen the
outer locking knob, then tap the bearing with the palm of
your hand.
4–2 • SelectSet Avantra User Guide
— Handle. — Bearing. —Gear opening.
.
