Installing Loaded Supply Cassettes

Note: If your imagesetter is not equipped with the
DualSupply Option, status icons and button icons
that deal with Supply B are grayed out.
Step 1. Put the cassette into the imagesetter.
Open the imagesetter top cover and the light shield.

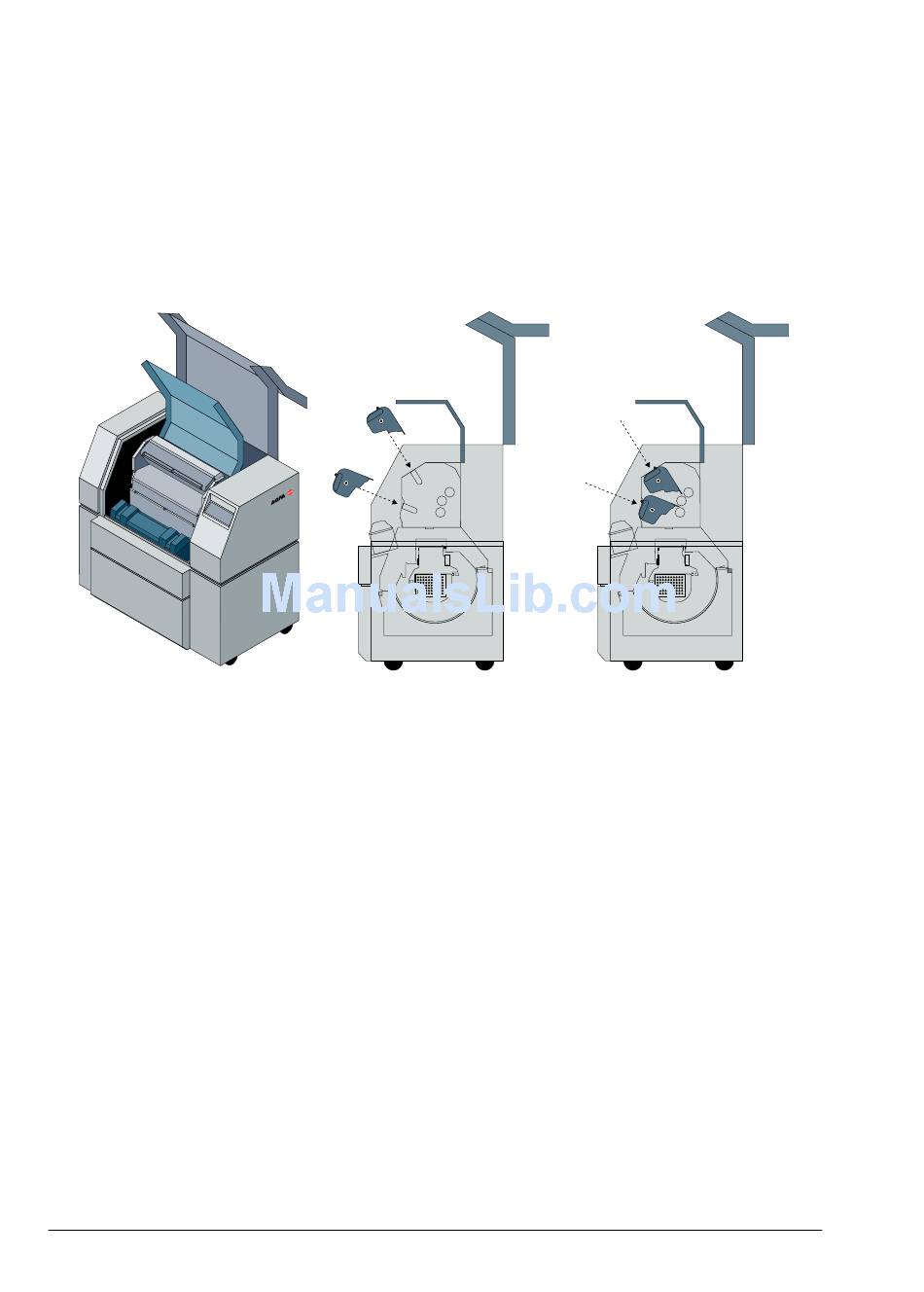

Figure 4.10. Left, top cover and light shield open.
540.MediaCoverUp.art
Center and right, sliding the supply cassette into the imagesetter
Slide the supply cassette into the imagesetter.
The bearings that extend out the end of the cassette fit into
slots in the side of the media compartment.
If media is hanging beyond the fingers of the supply cassette,
make sure that it fits between the open rollers without bend-
ing or folding.
On systems with the DualSupply Option, make sure that the
rollers are open to receive media from the supply cassette
you are inserting. If not, use Switch Supplies in the Utilities
Screen.
Close the light shield and top cover.
