Step 6:
Clear any media fragments out of the media path.
Step 7:
Put the nip drive assembly back in place.
• Line up the locating pins on the back of the assembly with
those on the mounting plate.
• Tighten the screws.
• Reconnect the wires.
Step 8:
Put the light shield back in place.
Step 9:
Put the front cover back on the imagesetter and close both
side doors.
Step 10: Start the imagesetter and resume operations.
7–4 • SelectSet Avantra User Guide

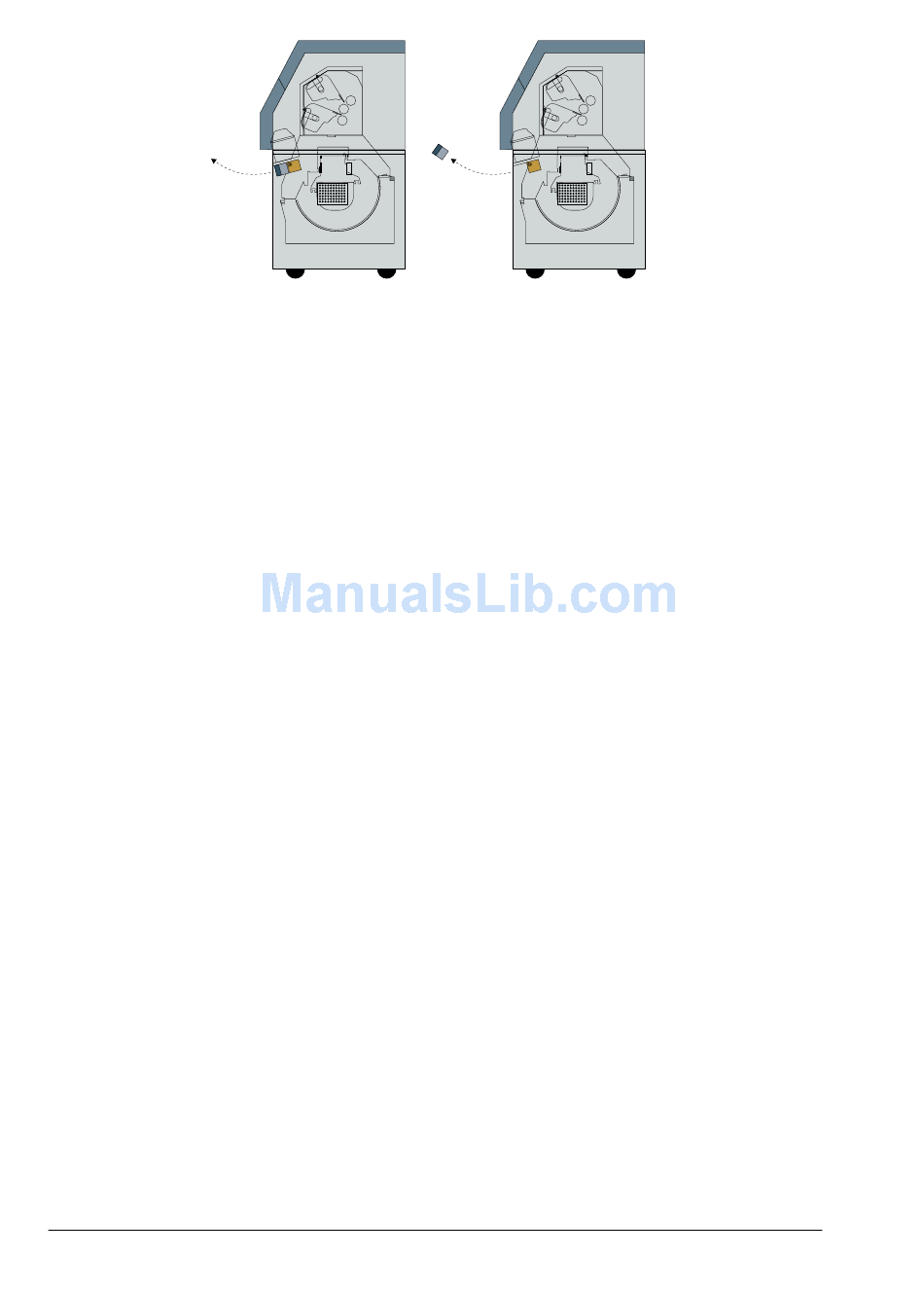

Figure 7.2. Remove the nip drive assembly.
