SnapServer 7.0 Administrator's Guide

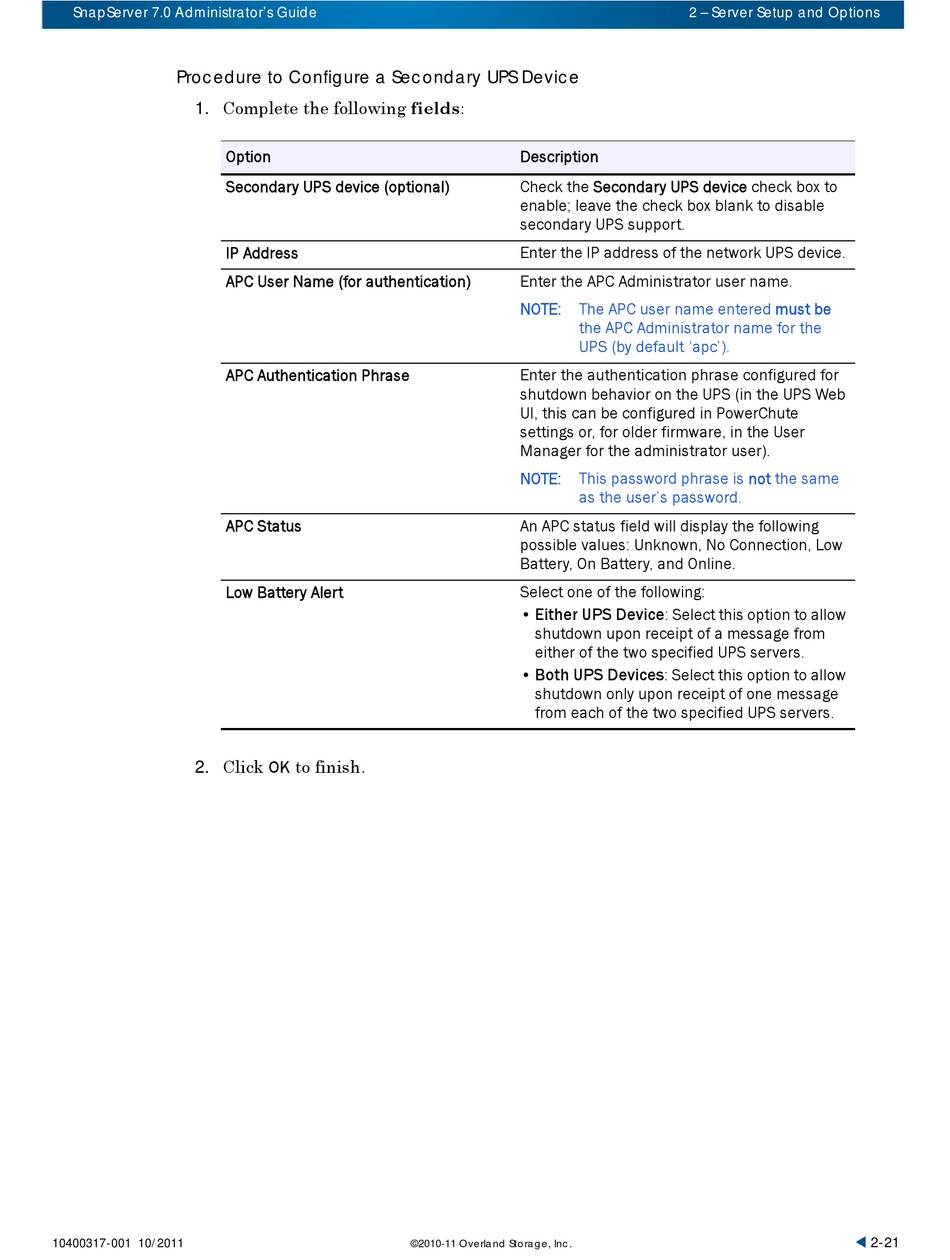

Procedure to Configure a Secondary UPS Device
1. Complete the following fields:
Option
Secondary UPS device (optional)
IP Address
APC User Name (for authentication)
APC Authentication Phrase
APC Status
Low Battery Alert
2. Click OK to finish.
10400317-001 10/2011
Description
Check the Secondary UPS device check box to
enable; leave the check box blank to disable
secondary UPS support.
Enter the IP address of the network UPS device.
Enter the APC Administrator user name.
NOTE: The APC user name entered must be
the APC Administrator name for the
UPS (by default 'apc').
Enter the authentication phrase configured for
shutdown behavior on the UPS (in the UPS Web
UI, this can be configured in PowerChute
settings or, for older firmware, in the User
Manager for the administrator user).
NOTE: This password phrase is not the same
as the user's password.
An APC status field will display the following
possible values: Unknown, No Connection, Low
Battery, On Battery, and Online.
Select one of the following:
Either UPS Device : Select this option to allow
•
shutdown upon receipt of a message from
either of the two specified UPS servers.
Both UPS Devices : Select this option to allow
•
shutdown only upon receipt of one message
from each of the two specified UPS servers.
©2010-11 Overland Storage, Inc.
2 – Server Setup and Options
2-21
