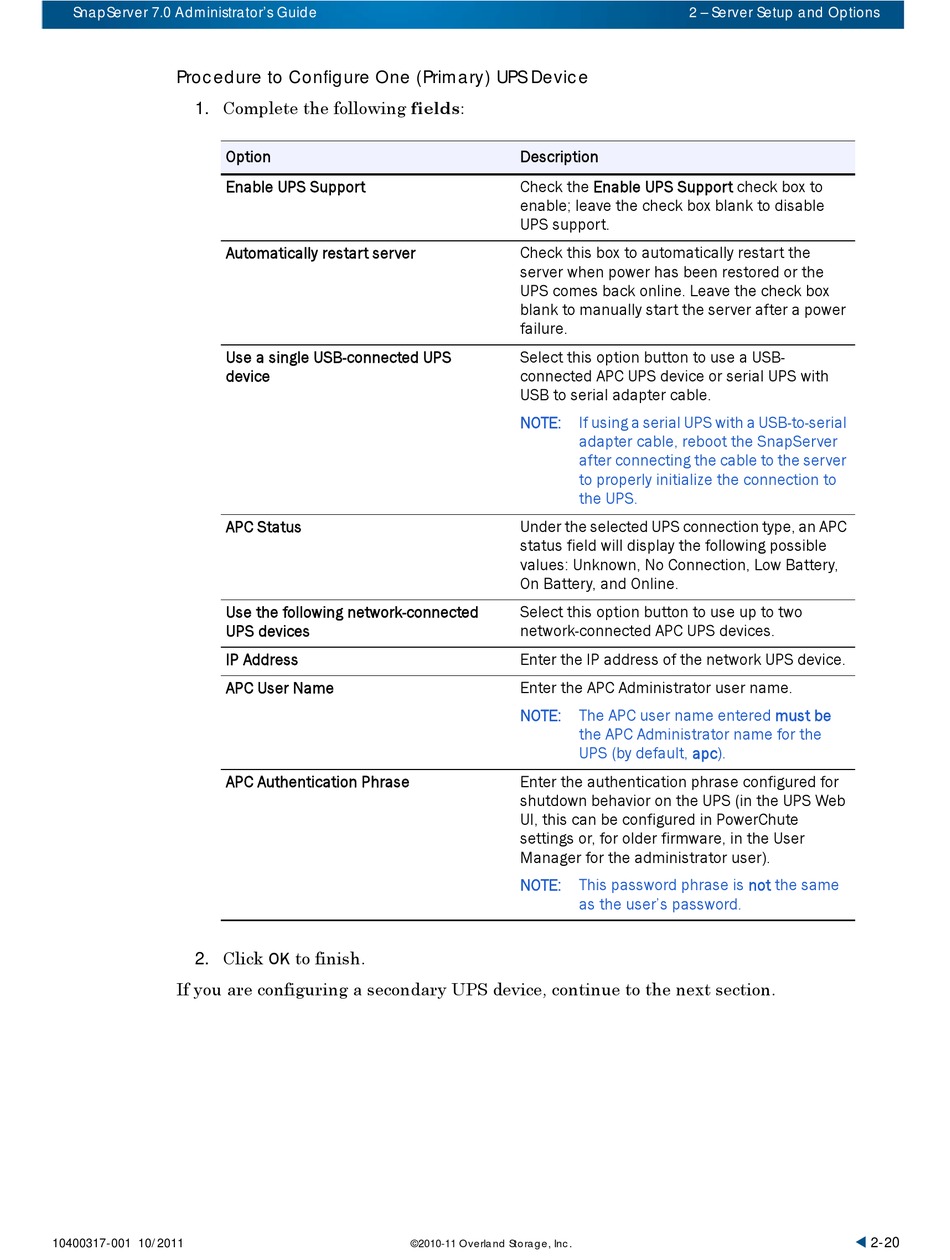

Overland Storage SnapServer Administrator's Manual page 39

SnapServer 7.0 Administrator's Guide
Procedure to Configure One (Primary) UPS Device
1. Complete the following fields:
Option
Enable UPS Support
Automatically restart server
Use a single USB-connected UPS
device
APC Status
Use the following network-connected
UPS devices
IP Address
APC User Name
APC Authentication Phrase
2. Click OK to finish.
If you are configuring a secondary UPS device, continue to the next section.
10400317-001 10/2011
Description
Check the Enable UPS Support check box to
enable; leave the check box blank to disable
UPS support.
Check this box to automatically restart the
server when power has been restored or the
UPS comes back online. Leave the check box
blank to manually start the server after a power
failure.
Select this option button to use a USB-
connected APC UPS device or serial UPS with
USB to serial adapter cable.
NOTE: If using a serial UPS with a USB-to-serial
adapter cable, reboot the SnapServer
after connecting the cable to the server
to properly initialize the connection to
the UPS.
Under the selected UPS connection type, an APC
status field will display the following possible
values: Unknown, No Connection, Low Battery,
On Battery, and Online.
Select this option button to use up to two
network-connected APC UPS devices.
Enter the IP address of the network UPS device.
Enter the APC Administrator user name.
NOTE: The APC user name entered must be
the APC Administrator name for the
UPS (by default, apc).
Enter the authentication phrase configured for
shutdown behavior on the UPS (in the UPS Web
UI, this can be configured in PowerChute
settings or, for older firmware, in the User
Manager for the administrator user).
NOTE: This password phrase is not the same
as the user's password.
©2010-11 Overland Storage, Inc.
2 – Server Setup and Options
2-20
