SnapServer 7.0 Administrator's Guide
• RAID 0 set (nonredundant) – You cannot add a drive to a RAID 0 set. To
reconfigure a RAID 0 set, you must delete the RAID set and then recreate it.
• RAID 1 (redundant) – You can add a new drive to a RAID set 1 as either a spare or
as a new member. Adding a disk drive to a RAID set 1 does not add storage capacity.
The new member simply creates an additional copy of the original drive.
• RAID 5, 6, or 10 set (redundant) – You can add a spare to a RAID 5, 6, or 10 set.
However, you cannot add a new drive as a new member.
To add a new disk drive as a spare for a RAID 1, 5, 6, or 10 set:
1. Navigate to the Storage > RAID Sets page and click the name of the RAID set to which
you want to add a drive.
NOTE: Disk drives that have been previously configured can be added; they are indicated in the
2. On the page that opens, click Add Disk.
If you are adding to a RAID 1 set, select either Spare or Member at the top of the page.
3. Select one or more drives to add to the configuration, and then click Next.
4. On the confirmation page, click Add Disk.
Reintegrate Orphaned Disk Drives
An orphan disk drive occurs in the following circumstances: (1) a working drive from a
RAID set is accidentally removed from the server; or (2) the RAID set or system is started
with a drive missing. In either case, the drive becomes suspect and is considered an orphan.
To remedy the problem, click on the RAID set in the Storage > RAID Sets page, then click the
Repair link next to the drive in question.

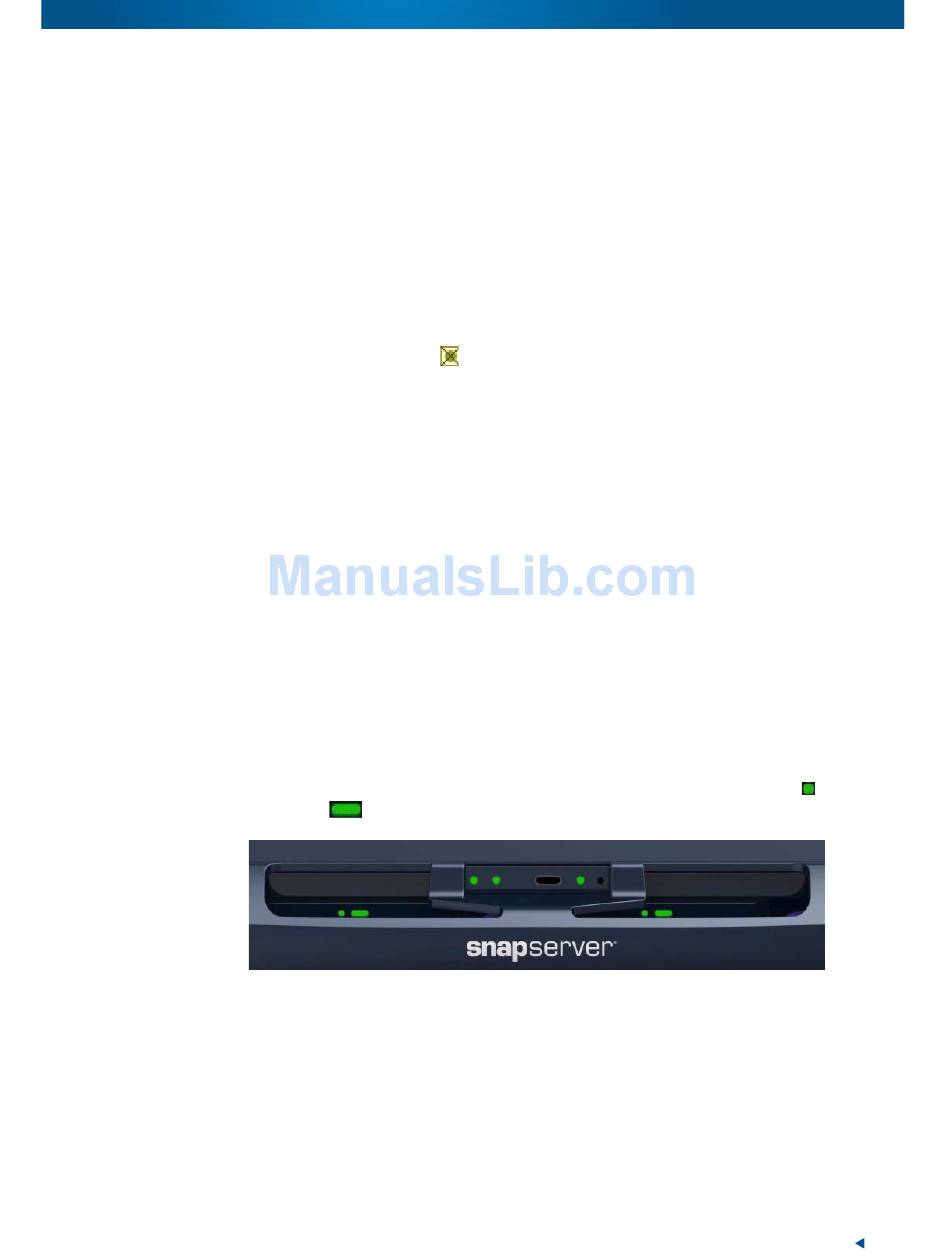

Disk Drive LED Indicator Usage

LEDs are located above each disk drive assembly and provide information on that disk
drive's current status. There are two LEDs per drive; the round activity LED (
oblong drive LED (
10400317-001 10/2011
Storage > Disks
list by the
been used in a different system. If you want to use the drive, add it to the RAID as you
would any other drive.
). LEDs may be green, amber, or red.
©2010-11 Overland Storage, Inc.
icon and a message stating that the disk has previously
6 – Other Storage Options
) and the
6-28
