Overland Storage 2196000 Quick Start Manual

Snap server 510 nas

Advertisement

Quick Start Guide
and User CD
Kurzanleitung und Benutzer-CD
Guía de iniciación rápida y CD del usuario
Guide de mise en route rapide et CD de l'utilisateur
Guida rapida all'uso e CD utente
Руководство по быстрой установке и
компакт-диск
User CD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2196000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Overland Storage 2196000

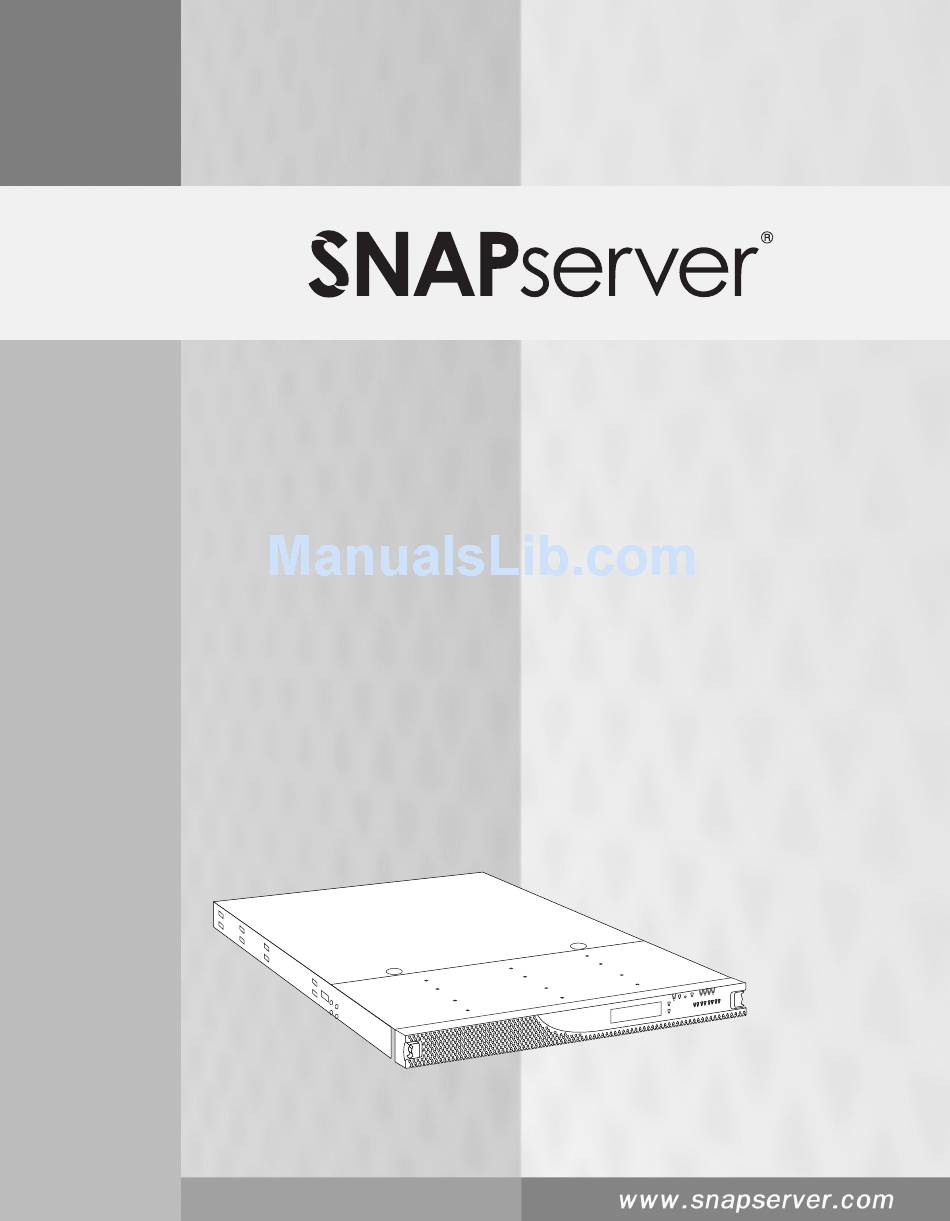

  • Page 1 Quick Start Guide and User CD Kurzanleitung und Benutzer-CD Guía de iniciación rápida y CD del usuario Guide de mise en route rapide et CD de l’utilisateur Guida rapida all’uso e CD utente Руководство по быстрой установке и компакт-диск User CD...
  • Page 2: About This Guide

    About This Guide This guide shows you how to install your Snap Server 500 series or 600 series in a rack and connect the server to your network. The instructions consist of 5 steps: • Step 1: Verify the contents of your shipping package. •...
  • Page 3: Hardware Features

    Hardware Features 1 Power button 2 Reset button 3 System status lights 4 Disk drive status lights 5 Bezel release mechanisms 6 Unit ID (UID) light and button 14 Service connector 7 Not active (for future use) 8 LCD (Liquid Crystal Display) * The Snap Server 520 and 620 have a single power supply and one power cable (1US, 1UK, 1EU).
  • Page 4 Step 2: Install the Server in a Rack Note The Snap Server 500 Series and 600 Series models can only be mounted in a four-post, 32-inch depth, EIA-compliant rack. A two-post telco-style rack or a rack less than 32-inches in depth will not support the server. As shown in the Hardware Features illustration, the Snap Server ships with two slide rail assemblies consisting of inner rails to attach to the chassis, outer rails to attach to the rack, and a packet of screws for mounting the rails to the chassis and to the rack.
  • Page 5: Step 3: Connect Power And Network Cables

    Step 3: Connect Power and Network Cables The server has Dual-Gigabit Ethernet ports that can connect to 10BaseT, 100BaseTx, or 1000BaseT networks. A dual-port configuration offers added advantages, such as load balancing and failover. You may connect one or both of the ports. •...
  • Page 6 Step 5: Connect to the Snap Server for the First Time Snap Servers are preset to acquire an IP address from a DHCP server. If no DHCP server is found on the network, the Snap Server defaults to an IP address of 10.10.10.10, and you may not be able to see the server on your network.
  • Page 7 User CD or call 1-888-343-SNAP. For immediate response to a service inquiry, you can submit a question to our technical support department using our Expert Knowledge Base Sie finden den technischen Service oder Kundendienst für Ihren Snap Server auf unserer Website. Wenn Kunden sofortige Antworten auf eine Serviceanfrage wünschen, können sie mit Hilfe unseres Expert Knowledge Base System Para obtener servicio o asistencia técnica para su Snap Server, visite nuestro sitio Web.

This manual is also suitable for:

Snap server 500 seriesSnap server 600 series
