xStack® DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Web UI Reference Guide
Port List
Tagged
Untagged
Forbidden
Click the Apply button to accept the changes made.
NOTE: The Switch supports up to 4k static VLAN entries.

802.1v Protocol VLAN

802.1v Protocol Group Settings
The user can create Protocol VLAN groups and add protocols to these groups. The 802.1v Protocol VLAN Group
Settings support multiple VLANs for each protocol and allows the user to configure the untagged ports of different
protocols on the same physical port. For example, it allows the user to configure an 802.1Q and 802.1v untagged
port on the same physical port. The lower half of the table displays any previously created groups.
To view the following window, click L2 Features > VLAN > 802.1v protocol VLAN > 802.1v Protocol Group
Settings, as shown below:
The fields that can be configured are described below:
Parameter Description
Select an ID number for the group, between 1 and 16.
Group ID (1-16)
This is used to identify the new Protocol VLAN group. Type an alphanumeric string of up to
Group Name
32 characters.
This function maps packets to protocol-defined VLANs by examining the type octet within the
Protocol
packet header to discover the type of protocol associated with it. Use the drop-down menu to
toggle between Ethernet II, IEEE802.3 SNAP, and IEEE802.3 LLC.
notifying that they may join the existing VLAN.
Allows an individual port list to be added or deleted as a member of the VLAN.
Specify the port as 802.1Q tagged. Use the drop-down menu to designate the port as
tagged.
Specify the port as 802.1Q untagged. Use the drop-down menu to designate the port as
untagged.
Specify the port as not being a member of the VLAN and that the port is forbidden from
becoming a member of the VLAN dynamically. Use the drop-down menu to designate the
port as forbidden.

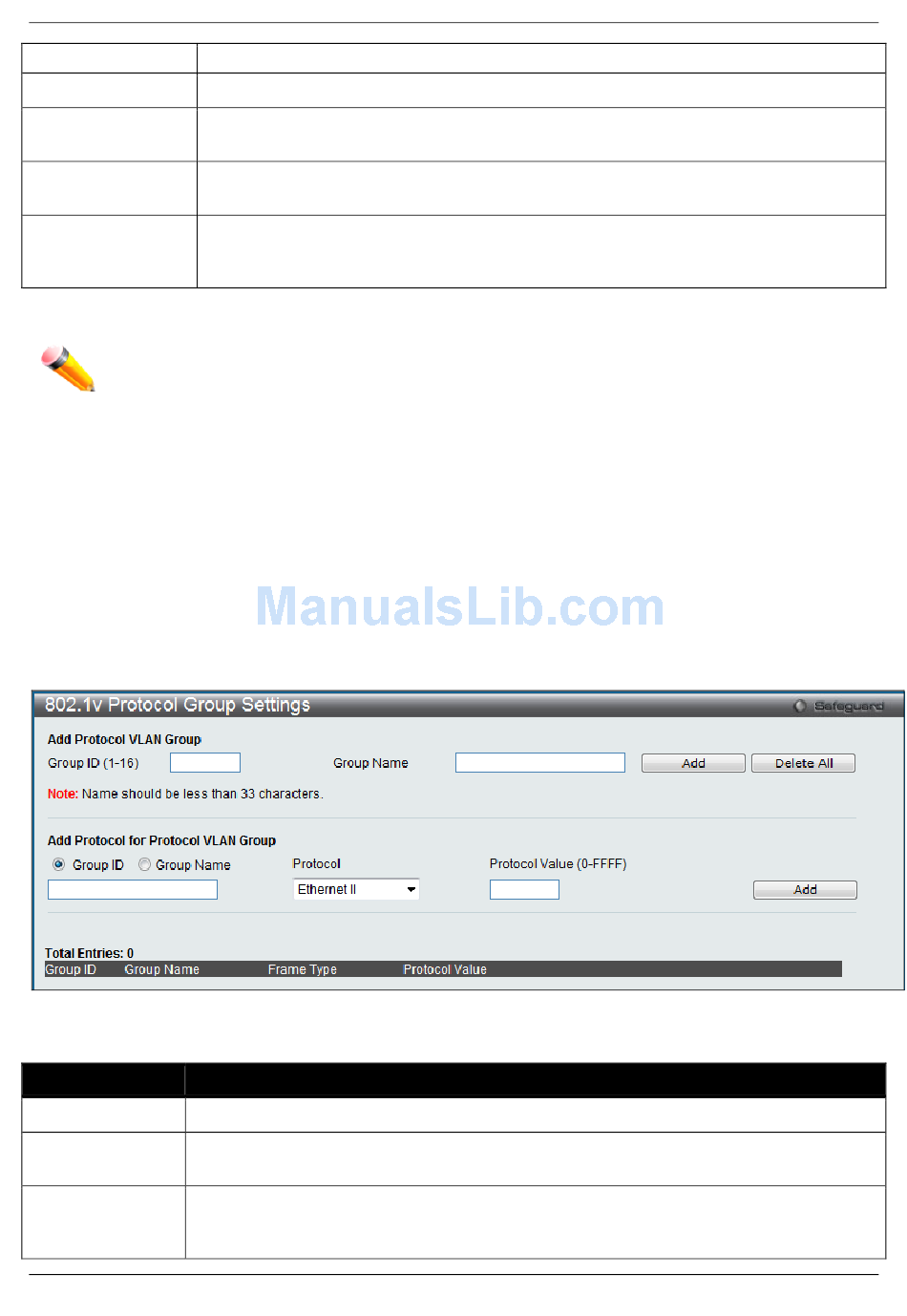

Figure 4-8 802.1v Protocol Group Settings window
74
