CDM-710G High-Speed Satellite Modem
Clock Modes
10.3 CDI-60 HSSI Interface
The CDI-60 HSSI Interface has a single rate programmable port. Figure 10-3 shows the
interface.
J1
TT
SD
ST
TA
CA
RT
RD
Common
10.3.1
CDI-60 HSSI Interface Transmit Clocking
TT is the transmit clock source for the HSSI interface. It is sent in conjunction with the data, SD,
by the DTE to the modem. The data interface dejitters and phase locks to the TT clock rate.
Internal clocking – where ST is supplied to the DTE and TT is not returned to the modem – is not
allowed. Programming the Tx data rate at the interface programs the clock rate for ST sent to the
DTE. When operating with HSSI interfaces, always send ST to the DTE and assure that TT
derived from ST is delivered to the DCE.
Rx Loop-Timed – where ST is programmed to a rate derived from the Rx-Sat clock from the
satellite – is not available. For loop timed operation, disconnect ST at the DTE and connect RT
from the DCE (modem) to both RT and ST at the DTE.
10.3.2
CDI-60 HSSI Interface Receive Clocking
When the Rx Buffer is disabled the receive clock is the Rx-Sat. In this mode make sure the Rx
Buffer is set to minimum to reduce latency.
Tx Clock Input (External)
Tx Data
Output Clock (Rate Programmable)
(RTS)
(CTS)
Rx Buffer Clock
Rx Buffer
Rx Buffer
Rx Data

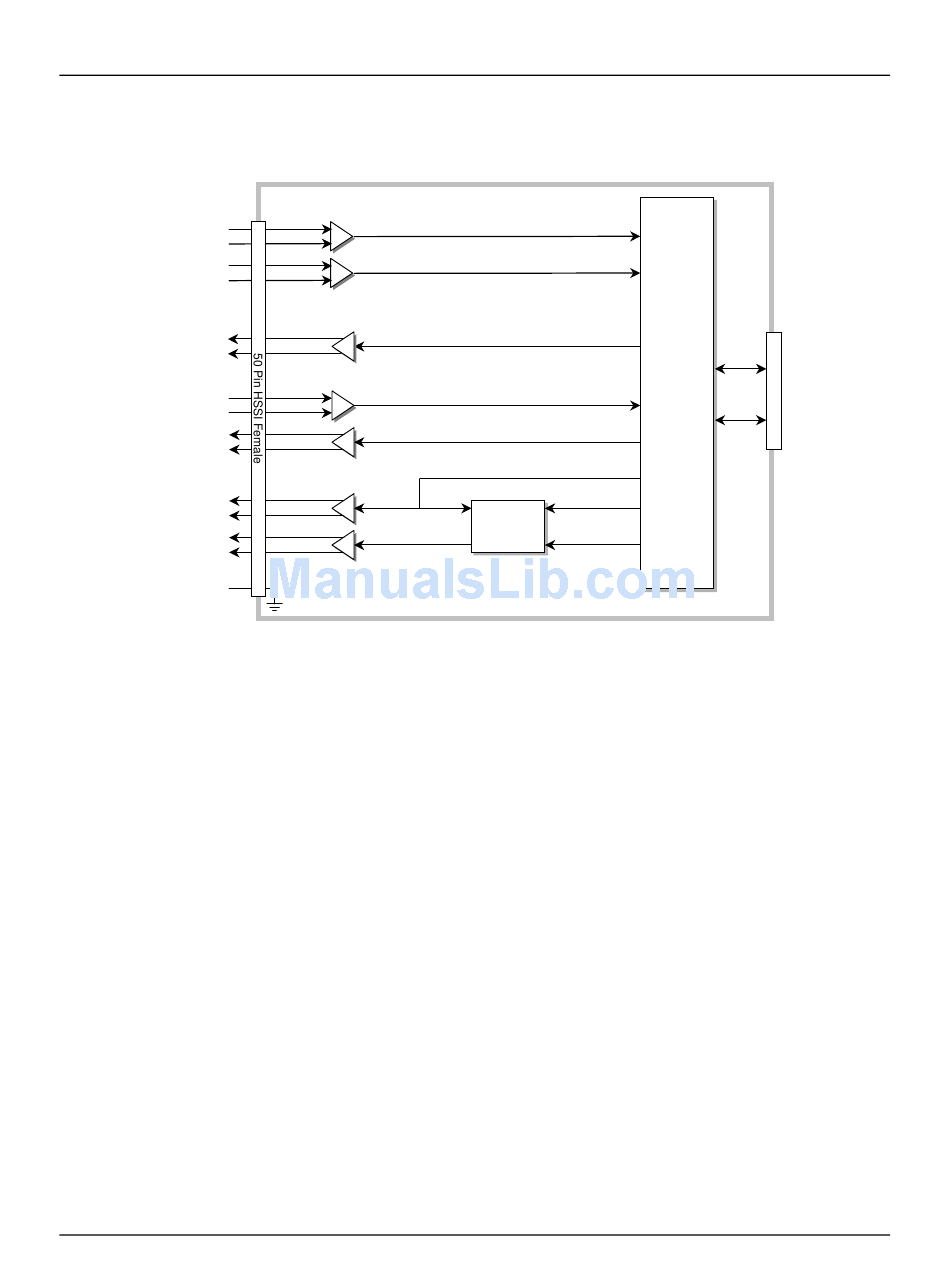

Figure 10-3. CDI-60 HSSI Data Interface
10–4
Processor
Processor
Mux /
Mux /
Clk
Demux
&
Demux
Data
PLL
PLL
Rx
Rx
μC
Buffer
Buffer
Interface
Interface
Loopback
Loopback
Control
Control
Rx-Sat Clock
HSSI Interface
Revision 1
MN-CDM710G
Modem
Interface
