CDM-710G High-Speed Satellite Modem
10/100/1000 Base-T Gigabit Ethernet (GigE) Interface (CDI-70)
14.2

Physical Description

The CDI-70 data interface is implemented on a 3.95 x 7.022 inch (10.03 x 17.83 cm) PCB.
Connectivity to the CDM-710G is implemented with a 96-pin DIN receptacle. The LAN interface
consists of a single IEEE 802.3ab 1000 Base-T copper-compliant female RJ-45 connector – refer
to Sect. 14.3 for the connector pinout. This connector features Light-Emitting Diode (LED)
indicators for Link Status and Link Activity.

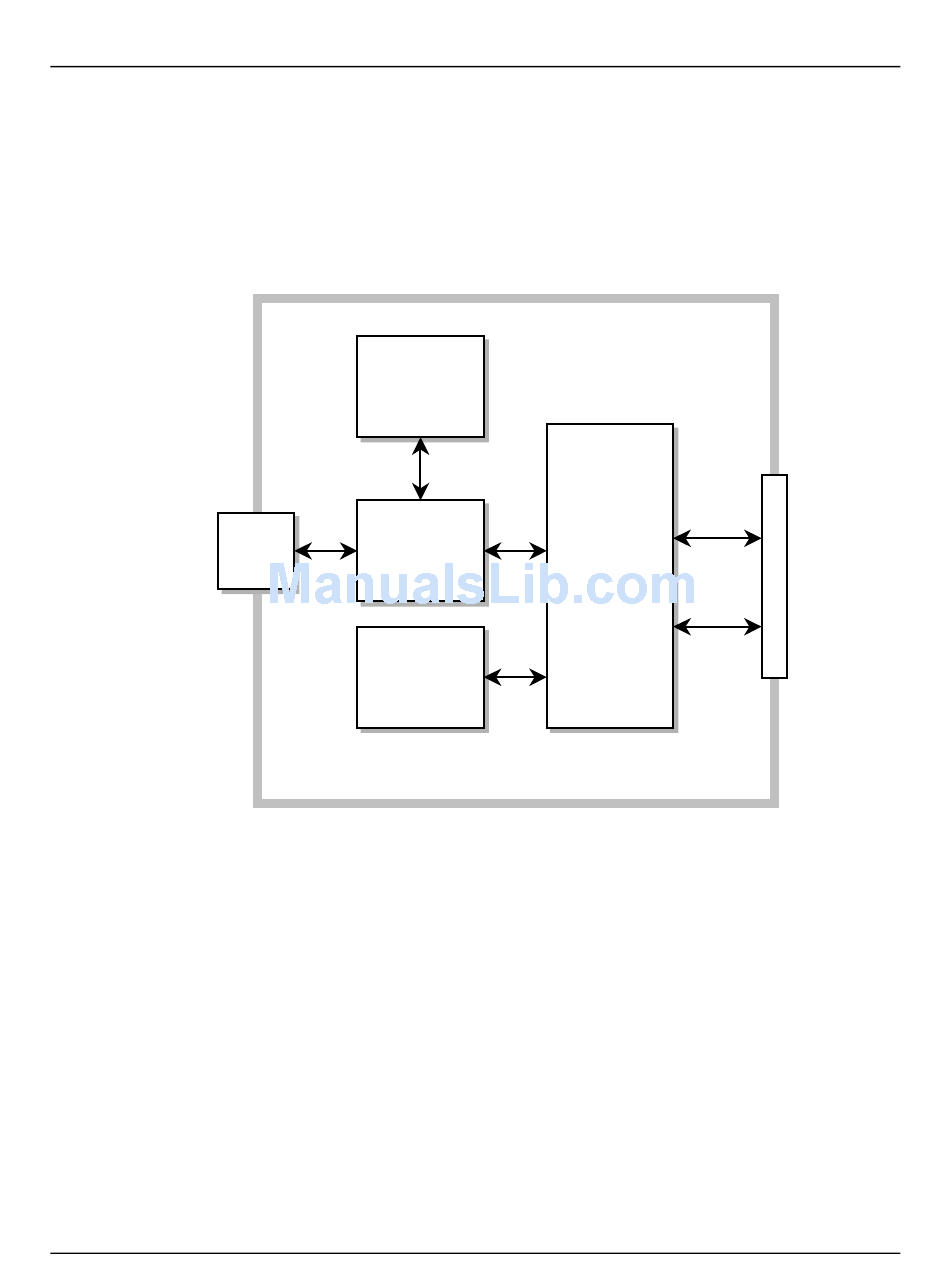

Figure 14-2 shows a block diagram for the CDI-70 interface.
J1
Ethernet
RJ-45
Interface
Management
Management
Packet
Packet
Processor
Processor
GE
GE
Layer 2
RJ-45 Layer 2
Switch
Switch
Memory
Memory

Figure 14-2. CDI-70 Interface Module Block Diagram

Packet
Packet
Processor
Processor
Gigabit Ethernet Card
14–2
Revision 1
MN-CDM710G
Clk
&
Data
Modem
Interface
μC
